Buy one app. The whole BIMIO Misc tab comes free.

BIMIO Misc is the free tab that ships with every BIMIO licence: the toolbox, panel by panel, and a hub you search by typing. Measuring, renaming, tagging along a path, auditing groups, authoring fill patterns, sweeping the model clean. Every tool writes in a single named transaction, and every one tells you first whether it touches your model.

Revit 2024–2027Free with any BIMIO licenceEvery tool, one tabEvery tool says if it modifies the model
▶Video guideComing soon on BIMIO’s YouTube
FileArchitectureStructureInsertAnnotateViewManageAdd-InsModify
Datum
Tools
Reset
View
Trace
Category SwitchTemplate Diff

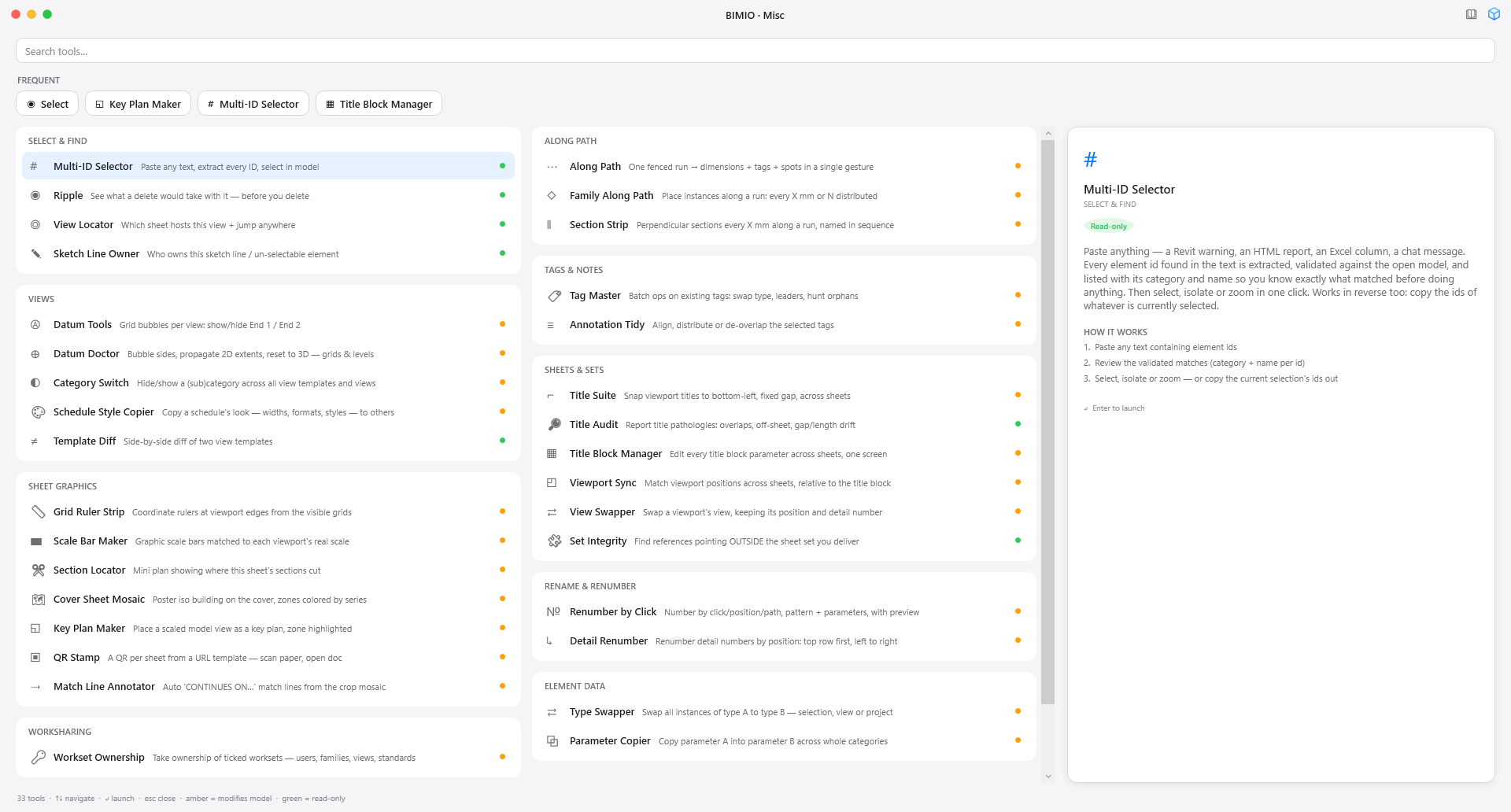

Command PaletteJump to any view, sheet, schedule or bookmark across every open model.Bookmarks…Manage your saved spots.Workspaces…Reopen a whole set of views together.Find & Zoom…Zoom to elements by their id.Section box…The section-box console.Same spot everywhereKeep parallel views on the same spot.Sheets…Browse the sheets by number.Sync to model…Copy this 3D view into another open model.Model health…Which views?…Which views show this element?Colour by workset…Tint the active view by workset.Clash Navigator…Open a Navisworks clash report.What changed?…Highlight what changed since a baseline.BackGo back to the view you came from.ForwardGo forward again.Save view as bookmarkBookmark how this view is framed.View ⇄ SheetJump to the sheet this view sits on — and back.Isolate & GoFrame the selection in 3D, isolated.Section box on/offSwitch the section box off and KEEP it.Section box the selectionCrop to whatever is selected.Memorise selectionRemember what is selected now.Walk: nextGo to the next memorised element.Walk: previousGo to the previous memorised element.Select memorised againRe-select the whole memorised list.
Views
AboutLicenceUpdatesManuals
About
Everything on the BIMIO Misc tab is free with any licence.
Why Misc exists

The hundred small jobs nobody writes an app for.

Every Revit day has a dozen two-minute chores — measure that, renumber those, find which sheet hosts this view, purge what nobody uses. Individually none justifies an add-in; together they eat the afternoon.

Without Misc
  • A different free add-in per chore, each with its own installer and ribbon tab.
  • Twenty buttons you can't name, so you use three.
  • No way to know whether a tool is about to change your model until it has.
  • The tool you need is the one whose name you can't remember.
With the toolbox
  • One tab, every tool, grouped the way the work is grouped.
  • Type what you want — in English or Spanish, misspelled, or by the tool's old name.
  • An amber or green dot on every tool: modifies the model, or read-only.
  • One named transaction per gesture, so one Ctrl+Z is always enough.
BIMIO Misc · the free apps

The apps that come with any licence

Lens, Synapse, Reset View, Trace, Atlas and Script sit on the BIMIO Misc tab. Each one is told in full below.

BIMIO Misc · Misc panelLens

Click anything. Know everything.

Lens is the free dashboard of the BIMIO Misc tab: a panel that docks beside your model, follows every selection, and stacks in one place everything the suite knows about it — the identity Revit buries in a modal, who created it and who owns it now, and a live card from every BIMIO app with something to say about that element. No setup, no run button, nothing more to buy: it comes with any BIMIO licence, in Revit 2024–2027.

Free with any BIMIO licenceLives in a dockable panelA card per BIMIO appRevit 2024–2027
▶Video guideComing soon on BIMIO’s YouTube
Why Lens exists

Revit scatters the answers.

One element's story lives in six places — a modal for its id, a dialog for its warnings, a window per add-in — and none of them follow your selection.

Revit on its own
  • Reaching an element id means Manage ▸ Inquiry ▸ IDs of Selection — a modal.
  • Who created this, who owns it now? Nowhere on screen.
  • Every add-in's findings live in that add-in's own window.
The same click, with Lens
  • Id, kind, authorship and ownership pinned under the selection, instantly.
  • One branded card per app — rules, clashes, keynotes, filters, decisions.
  • Open ↗ on any card jumps to the app that can act.
How Lens works · input → output

You click. The suite answers.

Lens has two halves. The input is just your selection — the apps have already done their work. The output is everything they know, stacked beside the model: the facts, the cards, the brief, the memory, the file.

Isolate:
INInput · a click
Whatever you selectAnyone — Lens comes with any BIMIO licence
Follows your selectionElements, views, sheets, linksNo setup, no run button
OUTOutput · what the suite knows
✓Identity · the Id without opening a modal, plus who made it and who owns it
•A card per app · rules, clashes, keynotes, filters — each in its brand
•Chronicle memory · history and deletions, when Chronicle is licensed
•AI brief · ✦ Explain reads the whole panel back in plain language
one HTML dossier — element, type or whole project

Tap Input or Output to isolate a half — the other collapses.

INThe input · your selection

Select anything — Lens is already reading it.

The panel docks like any Revit pane and refreshes on every selection. The only pinned controls are the scope — Project, Element or Type — a search box, the finder, one AI button and the HTML export.

Anyone on the team

Free with any BIMIO licence — no licence of its own

The panel

Select anything — Lens is already reading it.

The docked panel refreshes on every selection with no run button. Scope pills — Project, Element, Type — set how far it looks; the master search filters every card below; and the finder button browses the elements you can't click in the model: view templates, view filters, project information. GENERAL INFO opens the stack with the Id first — no modal to open — then where the element sits, then Authorship: Created by, Last Changed by — and Owned by, shown only while someone actually has the element checked out — each with the person's colour dot.

New to Revit: the element id, authorship and ownership — pinned under your selection.
Lens×
ProjectElementTypeHTML
✦ Explain
GENERAL INFO
Identity, placement and authorship.
Id403884WhereHostFAC Brick 102 #402118WallsShowRoom1.04 OfficeShowAuthorshipCreated byjsmithLast Changed bymriveraOwned bymrivera
View Range

Pick a plan view, and its View Range is right there to retype.

Select a plan view in the Project Browser — or nothing at all, so the active view is the target — and GENERAL INFO grows a View Range band: Top, Cut Plane, Bottom and View Depth, each a level and an offset. Every level except the Cut Plane's opens the same choices as Revit's own dialog, Unlimited included; each offset is a box where Enter or clicking away saves and Esc puts it back. Lens checks the order of the planes before Revit does and writes one named transaction. When a view template owns the range, the four rows turn read-only and the band names the template.

New to Revit: a plan's view range, changed from the panel without opening a dialog.
Lens×
ProjectElementTypeHTML
✦ Explain
GENERAL INFO
Identity, placement and authorship.
Id312905View RangeTopAssociated Level (Level 01)2300Cut PlaneAssociated Level (Level 01)1200BottomAssociated Level (Level 01)0View DepthAssociated Level (Level 01)0AuthorshipCreated byjsmithLast Changed bymrivera
Lens×
ProjectElementTypeHTML
✦ Explain
GENERAL INFO
Identity, placement and authorship.
Id312977View RangeLocked by view template “ARC — Plans” — change the view range there, or remove the template from this view.TopAssociated Level (Level 01)2300LOCKEDCut PlaneAssociated Level (Level 01)1200LOCKEDBottomAssociated Level (Level 01)0LOCKEDView DepthAssociated Level (Level 01)0LOCKEDAuthorshipCreated byjsmithLast Changed bymrivera
The cards

Every app gets its say — one card each.

Canon's rule breaches, Ledger's keynote, the saved Select rules the element matches, Clash, Assay, Palette, Dictum, Datum, Stencil, Loop, Nest, Trace and the Misc helpers — each a card in its app's own brand. The always-on cards — Canon, Clash, Assay, Trace, Ledger — give a clean element an honest empty instead of silence; the automatic ones appear only when they have something true to say. An app you don't own shows a quiet lock with the way to change that, and Open ↗ on any card jumps into the full app — the card informs, the app acts.

New to Revit: every BIMIO app's verdict on one element, in one scroll.
Lens×
ProjectElementTypeHTML
✦ Explain
CANONLive rules from your standard.Open ↗
×#W009Exterior walls must be function ExteriorFixWaive
~#N012Type name is off the naming patternFix
CLASHClashes involving this element.Open ↗
No clashes involve this element.
ASSAYHealth findings on this element.Open ↗
DATUMLink position vs the project.Requires a Datum licenceOpen ↗
LEDGERKeynote on this element.Open ↗
·F30/110Facing brickwork, stretcher bond
SELECTSaved Select rules matched.Open ↗
RuleExterior walls#3
RuleFire-rated 60+#7
What you cannot click

Everything editable in the model — including what has no geometry.

A view template, a filter, a workset, Project Information: people change them, they break drawings, and there is nothing in the model to select. Find hidden elements lists the whole model by category, alphabetically — the types of each category in a “— Types” bucket of their own, and anything Revit gives no category under the class name it has inside Revit. Select an element and Inspect in Lens loads it into the panel; a workset, which is not an element, shows its recorded history right there in the finder instead. The window stays open while you browse, so you can walk a list of suspects one at a time and see, for each, who touched it and when.

New to Revit: a way to inspect the things Revit gives you no way to select.
Find hidden elements
Find hidden elements
Everything editable in the model — every category, every type (— Types), view templates, filters, project information, worksets and the category-less internals — and inspect any of it in Lens to see its history: who touched it and when.
Doors24
Doors — Types8
ParameterFilterElement23
Project Information1
View Templates14
Walls412
Walls — Types31
Worksets9
ARC — Ceiling plans312455
ARC — Elevations312488
ARC — Plans312401
ARC — Sections 1:100312470
Presentation — 3D312519
STR — Framing plans312502
6 elements — the search box filters all of them.Inspect in Lens
You click — and everything the suite already knows lands in one panel, beside the model.

Lens runs nothing of its own — the apps did the work when they ran. The only writes are the ones you click: a Canon Fix or Waive, a recorded value you restore, a view range plane you retype, the colours How it was built paints on a view until you clear them, an inspection marker you later clear.

OUTThe output · the answers, the memory, the file

From facts to a brief, a history, and a handover.

Everything below the cards is optional depth: an AI reading of the panel, Chronicle's memory when you license it, and an HTML dossier for whoever isn't in Revit.

You — and whoever asks later

The panel reads; the report travels

Ask in plain language

One button reads the whole panel back.

The pinned ✦ Explain button asks BIMIO Synapse — your connected AI — to explain everything below in plain language. The result is the AI brief card at the top of the scroll: a grounded summary you can dismiss with ✕ or open in full with “Tap for the full brief →”. It reads what the panel and its history already know, so the brief can never know more than you can verify.

New to Revit: the element explained in sentences — from the same facts on screen.
Lens×
ProjectElementTypeHTML
✦ Explain
✦AI briefTap for the full brief →

An exterior-function brick wall on Level 01, created by jsmith and now free to edit. Canon flags its function against the house standard — the Fix button on the card resolves it. Its keynote and two saved Select rules agree it is an exterior wall.

✕
GENERAL INFO
Identity, placement and authorship.
Id402118AuthorshipCreated byjsmith
Tap for the full brief

And the full brief, when the card is not enough.

The card at the top of the panel is the short answer. Opening it gives the long one, in four parts: what it is, its lifecycle with who and when, the risks it carries and what to do next. It is the same grounded material — the facts already on screen — laid out to be read rather than glanced at, and it says on its own face that it is generated: verify before acting. Nothing here is a new fact. They are the ones you already had, in a paragraph.

New to Revit: a second opinion on an element, drawn only from what the model actually says.
Element brief
✦
Walls · Basic Wall · INT 100 · 418207
C: Amy Lee · LC: Ben Kim · O: None
WHAT IT IS
An internal partition on L02, drawn on workset ARC — Partitions and reaching the underside of the slab above.
LIFECYCLE
12/06/2026 · Amy Lee
Created on L02 with the type INT 100.
21/08/2026 · Ben Kim
Top constraint moved to the slab above.
RISKS
RISKIts Fire Rating is empty while every sibling type carries one.
SUGGESTED NEXT STEPS
NEXTFill Fire Rating, or record why this type is exempt.
Generated by your connected AI (BIMIO Synapse) from this panel's facts — verify before acting.Done
The memory

Add Chronicle, and the panel remembers.

With Chronicle licensed, a bronze card — CHRONICLE · Activity & history — joins the stack. History is its heart: every synchronisation's created, modified and deleted rows, grouped under who made them, searchable, and narrowed by one line of chips — User, Category, Action and Date — with Auto-propagated, Hide AI noise and Deleted only beneath them. Each change reads on one line, Fire Rating : EI30 → EI60, and a click unfolds it. Beside it sit Live Activity — who is editing what, polled every 30 seconds in slices short enough never to freeze Revit — What changed since any recorded sync, and How it was built, painting the view by rework, age, author, settledness or hands. Chronicle records; Lens is where you read it, beside the selection.

New to Revit: the model's history, read next to the element it happened to.
Lens×
CHRONICLEActivity & history.Open ↗
History
Filters
UserCategoryActionDate
Auto-propagatedHide AI noiseDeleted only
09:42 · mrivera · 2 elements
~Modified · Walls — Types #1187Fire Rating : EI30 → EI60ShowRestore
+Created · Walls #402251Show
Yesterday 17:41 · jsmith · 1 Doors
Restore

Put one value back — after seeing exactly what will change.

A Modified row that kept its previous value carries a Restore pill. Clicking it writes nothing: Lens resolves the element and the parameter against the live model and shows the preview first — the value now, the value it would write, when that value was recorded, and a warning when it matters, such as a type parameter that changes every element of that type. It refuses, with the reason, when the element or the parameter is gone, the parameter is read-only, the number was recorded before exact values were kept, a reference no longer resolves, or the value is already that. One element, one parameter, one named transaction; Ctrl+Z undoes it, and History gains a Restored row. There is no restore-everything button, on purpose.

New to Revit: an undo for one parameter, weeks after the change, with its consequences stated before anything is written.
Warning
!
Restore "Fire Rating"?
Walls #1187 · FAC Brick 102 Fire Rating now: EI60 restore to: EI30 The value recorded on 28/08/2026 09:42. ⚠ This is a TYPE parameter — restoring it changes 18 elements at once.
CancelRestore
Journals

Your own commands, as Revit's undo list — click one to go back to just before it.

Also inside the Chronicle card, Journals reads this session's commands from Revit's own journal — on your machine only, never shared — and lists them newest first, under chips for warnings, dialogs answered and how long since your last sync. It reads like Revit's undo drop-down: one row per command, and the row is the button. Click one and Lens takes Revit back to just before it by posting Revit's own Undo the exact number of steps; the rows you stepped over dim, a dimmed row further up replays forward to just before itself, and ↪ Back to latest replays everything. A command that changed nothing cannot be clicked, and the reach ends where Revit's does: when Lens began watching the model, or at your last sync.

New to Revit: Revit's undo list with a time and a name on every step, one click from any of them.
Lens×
Journals
⚠ 2 warnings3 dialogs↻ synced 28m ago
↪ Back to latest (2)
10:09✎editDelete the selected objectsshortcut
10:07+createCreate a doorribbon
● now
10:05▦viewCreate a default 3D orthographic view.ribbon
10:04✎editMove selected objects or copies of selected objectsribbon
10:02+createCreate a wallribbon
09:42↻syncSynchronize with Centralribbon
How it was built

Paint the view by how it was built — and see where the work went.

The last question in the Chronicle card is about the model, not one element. How it was built colours the active view by one of five questions: Rework (how many separate syncs changed each element), Age (when it appeared), Author (who created it), Settled (what has not been touched since tracking began, and what is still moving) and Hands (how many different people worked on it). Hide everything else while I look takes out of the view whatever the question cannot explain, with Revit's temporary hide/isolate, so nothing is saved into the model. In Rework you set where hot begins — seven syncs or more until you change it — and can hide what was never reworked. Every band in the legend carries its count and a Select; click any coloured element to read its own story. The caveat under the legend is said out loud: it counts syncs, not single edits. Clear colours puts back the graphics the view had before.

New to Revit: where a model was fought over, who built what and when — painted on the view itself.
Lens×
How it was built
ReworkAgeAuthorSettledHands
Hide everything else while I look
Hot at−7+syncs or more
Hide what was never reworked
Never reworked1,204Select
Reworked once312Select
2–3 times96Select
4–6 times41Select
7+ times12Select
Click any coloured element in the view to read its story.
Counts SYNCS that changed the element, not individual edits — the recorder can only see as finely as you sync. 38 visible element(s) have no recorded history and are left plain.
Clear colours ✕
The disappearances

Deleted doesn't mean gone.

Inside the Chronicle card, Deleted elements keeps every recorded deletion: what it was, when it went, where it stood — and, for teams running BIMIO, who deleted it, recorded in the deleter's own session rather than guessed; older rows say Unknown honestly. Recreate plants a temporary marker at the last-known spot so you can see the hole before deciding, and Finish inspection removes every marker before anything reaches the file.

New to Revit: deletions with a name attached — recorded, not deduced.
Lens×
Deleted elements
Yesterday 17:41 · jsmith · 1 Doors deleted
jsmith · Doors · Single Flush · 926 × 2110
2026-08-27 17:41
Recreate
Aug 25 09:12 · mrivera · 1 Walls deleted
Aug 11 12:03 · Unknown · 1 Rooms deleted
Who, in words you recognise

Autodesk usernames are not names. Lens lets you fix that — and share the history.

Revit reports a teammate as a raw Autodesk username, which is not what anybody calls them. Type a friendly name once and it replaces the raw one everywhere in Live Activity and History; the real username is still stored underneath, so nothing you rename can break a lookup later. And the history itself can be pooled: point the project at a shared folder and every collaborator's Lens publishes its own changes there and reads the others'. The path lives IN THE MODEL, so a teammate who opens it inherits the setting without configuring anything on their machine.

New to Revit: a change history with people's names on it, shared without setup.
User names
Rename users
Revit reports each teammate by their raw Autodesk username. Type a friendly name under ‘Show as’ and it replaces the raw one everywhere in Live Activity and History. Leave a box empty to keep the raw name. This is display-only — the real username is still stored underneath.
Autodesk nameShow as
a.lee2891Amy Lee
bkim.7714Ben Kim
Add a teammate's Autodesk username…Add
Clear allCancelSave
Team change-history folder
Share this project's history
Paste or type the full path of a shared / network folder. Every collaborator's Lens will publish its own changes there and read the others' — so the whole team sees one combined history. The path is stored IN THE MODEL, so teammates inherit it automatically; nobody has to set it up on their own machine. Leave it empty to stop sharing.
\\studio-nas\Projects\Marina Tower\_bimio-history
✓ Existing folder — the team will sync through it
Browse…CancelSave to model
The family editor

Open a family, and Lens changes trade.

In the Family Editor the project cards stand down and the panel becomes the family dashboard: the Mold card sums the family in one line — category, types, parameters, shared count — and Run health grades every type on demand: unused parameters, hardcoded formulas, types with blanks, naming. The full types × parameters matrix is one Open ↗ away in Mold itself, and Nest sits beside it with the nesting story.

New to Revit: a family health check inside the panel you already have open.
Lens×
ProjectElementTypeHTML
✦ Explain
MOLDDoors · 8 types · 24 params (6 shared)Run healthOpen ↗
~Signals2 unused
~Warning2 parameters are unused by any formula or rule — possible orphansM06
NESTFamily editor — nesting is scoped to the open family (not a project verdict).RunOpen ↗
·This familyDoor-Single-Flush-Acoustic
·Contains (placed)Ironmongery-Lever-SetSHARED
The handover

The whole story, in one file anyone can open.

HTML exports what you are looking at: an element or type dossier, or — in Project scope — a self-contained dashboard with a health score out of 100, people, hotspots, deletions, the inventory and — with your connected AI — a summary written for humans, all in the language BIMIO is set to. No install, no viewer, works offline. The change audit rides a Chronicle licence; without one the report says so plainly and ships everything Lens reads for free.

New to Revit: the panel's knowledge, handed to someone who has never opened Revit.
Project report

Marina-Tower-Block-A

Marina-Tower-Block-A · 2026-08-28 10:13
Marina-Tower-Block-A_Marina-Tower_20260828_1013.html
AI summaryA tidy model with one busy fortnight: most changes cluster on Level 01 walls, two deletions carry names, and the standards cards are clean apart from one waived rule.
84/100
142Total changes
3Contributors
62Created
78Modified
See the real output

This is an actual HTML report Lens exports — self-contained, works offline, shareable as one file. Scroll it right here, or open it full-screen.

Open full report
BIMIO Misc · Misc panelSynapse

Connect your AI once. Every BIMIO tool gets smarter.

Synapse is the suite's shared AI layer — a single settings window, not a chatbot. Enter your Claude, ChatGPT, Gemini or Azure key once, or point it at a private self-hosted model, and every BIMIO tool with AI features can use it. A privacy mode governs what may leave the machine, keys are sealed with Windows DPAPI, and the AI never writes to your model: it proposes, you approve, BIMIO writes.

Free with any BIMIO licenceRevit 2024–2027Claude · ChatGPT · Gemini · Azure · self-hostedKeys sealed with DPAPI — never in the modelThe AI proposes · you approve · BIMIO writes
▶Video guideComing soon on BIMIO’s YouTube
Why Synapse exists

AI per tool means keys per tool. Nobody signs up for that twice.

Without a shared layer, every AI feature would carry its own key box, its own privacy answer and its own idea of what a valid reply is.

Each tool on its own
  • A key pasted into every tool that wants one — and stored who knows where.
  • Whether model data may leave the machine is answered nowhere, per call.
  • A malformed AI reply becomes whatever the tool does with garbage.
Through Synapse
  • One window, one key per provider — DPAPI-sealed on this machine, never in the model.
  • “Local only — nothing leaves this PC” is enforced by refusing to build remote providers at all.
  • Every reply is validated against a schema, repaired at most once, or rejected without writing anything.
How Synapse works · input → output

One configuration in. Every AI tool in the suite out.

The input is a single settings window, filled once. The output is AI features lighting up across the suite — with a disciplined middle: schema-validated replies, privacy enforced at resolve time, and nothing landing in your model without your approval.

Isolate:
INInput · configure once
Your AI, connectedOne key, one model, one privacy answer
Four cloud providers, or self-hostedDPAPI-sealed keyPrivacy enforced, not advertised
OUTOutput · across the suite
✓Proposals · briefs, triage, drafts — from the tools you already use
•Validated · schema-checked JSON, one repair round, or rejected
!Approved by you · nothing writes without a human yes
–Refused · a blocked provider or a reply that fails its schema leaves nothing to apply
1
connection, read by Lens, Canon, Assay, Clash, Graft, Quire and Script

Tap Input or Output to isolate a half — the other collapses.

INThe input · configure once

One window. No chat.

The Synapse button on the Misc panel of the BIMIO Misc tab opens the only surface there is: provider, key, model, privacy. The window itself says the contract.

Whoever owns the firm's AI account

An office lock file makes the configuration read-only on every seat that carries it

Open it

One window. No chat.

Pick a provider from five — Anthropic (Claude), OpenAI (ChatGPT), Google (Gemini), Azure OpenAI, or a self-hosted private model — paste the key once, set the model and the privacy mode. The key is masked as you type — an eye at the end of the field reveals it while you are in it — and it is never shown back: open the window again and the field is empty under “API key (saved — leave blank to keep)”. Keys are sealed with Windows DPAPI on this machine, and are never written to the model, a settings file or a log.

New to Revit: one AI configuration for the whole suite — instead of one per tool.
BIMIO · Synapse — AI settings
Synapse
Connect your AI once; every BIMIO tool gets smarter.
Configure it once here and every BIMIO tool with AI features can use it. Your key never leaves this machine unencrypted.
AI provider
Anthropic (Claude)
API key (saved — leave blank to keep)
Model
claude-opus-4-8
Privacy
Allow the selected provider
Test connectionCloseSave
Privacy

Local only means locally enforced.

Two modes are offered, in the app's own words: “Allow the selected provider” and “Local only — nothing leaves this PC”. Local-only is not a preference label — the provider factory refuses to build a remote adapter at all, and checks that the actual endpoint is local before a single byte moves. A third mode, ask-each-time, is deliberately not offered until its consent gate is real.

New to Revit: a privacy answer that is code, not a checkbox promise.
BIMIO · Synapse — AI settings
Synapse
Connect your AI once; every BIMIO tool gets smarter.
Configure it once here and every BIMIO tool with AI features can use it. Your key never leaves this machine unencrypted.
AI provider
Self-hosted (private model)
API key (optional for a private server)
Endpoint URL
http://10.0.0.12:11434/v1
Model
llama-3.3-70b
Privacy
Local only — nothing leaves this PC
Allow the selected provider
Local only — nothing leaves this PC
Test connectionCloseSave
Blocked, and told

Local only with a cloud provider: saved — and told that nothing can use it.

Set Privacy to “Local only — nothing leaves this PC” while Claude is still the provider, and Save does not pretend. The setting is saved — it is a safe state — but the line under the fields turns red and says exactly why no tool will get an answer: “Saved, but no BIMIO tool can use AI yet: Privacy mode is Local-only — remote AI providers are blocked. Choose the self-hosted provider or change the privacy mode.” Test connection gives the same reason and calls nobody, because it runs the same check every AI call goes through. The tools only say they are not connected; this window is where the reason is written.

New to Revit: a settings window that tells you when what you just saved has switched the AI off.
BIMIO · Synapse — AI settings
Synapse
Connect your AI once; every BIMIO tool gets smarter.
Configure it once here and every BIMIO tool with AI features can use it. Your key never leaves this machine unencrypted.
AI provider
Anthropic (Claude)
API key (saved — leave blank to keep)
Model
claude-opus-4-8
Privacy
Local only — nothing leaves this PC
Saved, but no BIMIO tool can use AI yet: Privacy mode is Local-only — remote AI providers are blocked. Choose the self-hosted provider or change the privacy mode.
Test connectionCloseSave
Prove it

Test connection is a live call, not a ping.

Test saves the settings first, then runs the real pipeline end to end — the reply has to come back as valid, schema-checked JSON before the window prints the green line: “Connected. Anthropic (Claude) · claude-opus-4-8 · 840 ms.” A failure names itself instead of shrugging: “Test failed — …”. What you proved is exactly what every tool will use.

New to Revit: a connection test that exercises the whole pipeline, schema and all.
BIMIO · Synapse — AI settings
Synapse
Connect your AI once; every BIMIO tool gets smarter.
Configure it once here and every BIMIO tool with AI features can use it. Your key never leaves this machine unencrypted.
AI provider
Anthropic (Claude)
API key (saved — leave blank to keep)
Model
claude-opus-4-8
Privacy
Allow the selected provider
Connected. Anthropic (Claude) · claude-opus-4-8 · 840 ms.
Test connectionCloseSave
Per provider

Each provider keeps its own drawer, and a half-configured save is refused.

Switch from Claude to Azure and Claude's model and sealed key stay exactly where they were; switch back and nothing is retyped. Azure OpenAI is the only provider that asks for a Deployment and an API version (the endpoint a self-hosted model wants too), and the window checks the endpoint, the deployment and the key before it commits anything, so a rejected save leaves neither a key nor half a configuration behind: “Azure OpenAI needs a deployment name.” A save that passes names what it armed: “Saved. Every BIMIO tool can now use Azure OpenAI.”

New to Revit: one window holding several accounts at once — the studio's own key and a client's Azure tenancy, side by side.
BIMIO · Synapse — AI settings
Synapse
Connect your AI once; every BIMIO tool gets smarter.
Configure it once here and every BIMIO tool with AI features can use it. Your key never leaves this machine unencrypted.
AI provider
Azure OpenAI
API key
●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●
Endpoint URL
https://marina-tower.openai.azure.com/
Deployment
API version
2024-06-01
Model
gpt-4o
Privacy
Allow the selected provider
Azure OpenAI needs a deployment name.
Test connectionCloseSave
The AI proposes. You approve. BIMIO writes.

The pipeline runs off the Revit thread and never touches the model. It hands the tool that asked a reply that passed its schema, or a named failure — and what reaches the model is that tool's own step, taken by you: Clash waits for Apply, Canon adds the rules it drafted switched off, Script lets you use, append or discard the draft.

OUTThe output · across the suite

Every AI tool, one connection.

No tool talks to a provider directly. Everything goes through the same orchestrator, the same schemas, the same privacy answer.

Everyone whose tools just got smarter

Same key, same privacy answer, every seat

The output

Every AI button in the suite, through one connection.

Lens classifies changes and writes element briefs and report copy; Canon drafts rules from your standards documents; Assay triages warnings; Clash triages interferences and writes briefs; Graft explains diffs; Quire drafts sheet plans; Script drafts, improves and fixes the script you describe — each through the same service, the same key, the same privacy answer. Connect once, and the buttons that were waiting light up everywhere.

New to Revit: AI features that arrive as tool buttons — not as another window to learn.
One connection, read everywhere
Lenschange classes · element briefs · report copy
←
Canonrule drafts from your standards
←
Assaywarning triage
←
Clashclash triage and briefs
←
Graftdiff explanations
←
Quiresheet-plan drafts
←
Scriptscript drafts, improvements and fixes
←
Not connected

Before it is connected, a tool says so in its own words.

Nothing greys out unexplained. Ask Lens to explain an element with no provider set and its status line asks you to connect one in BIMIO Synapse. Clash meets a triage click with “No AI provider is connected. Set one up in BIMIO Synapse (connect your AI once, every tool benefits), then try again.” Canon points you to Synapse and adds that the key stays on this machine, and Script's Ask AI pane says “Connect an AI provider in BIMIO Synapse settings to draft scripts here.” with Open Synapse settings as a link beneath it. Every one of those tools does the rest of its job untouched.

New to Revit: an unconnected AI feature that explains itself and names where to go, instead of failing quietly.
LensLens panel · status line

Connect an AI provider in BIMIO Synapse settings to use Explain.

ClashAI triage · dialog

No AI provider is connected. Set one up in BIMIO Synapse (connect your AI once, every tool benefits), then try again.

CanonBIMIO AI · dialog

No AI provider is configured. Open BIMIO Synapse (BIMIO Misc tab, Misc panel), connect your AI (Claude, OpenAI, a local model…), then come back — your key stays on this machine and the whole suite can use it.

When it fails

A wrong key is named as a wrong key, and it is not retried.

Failures come back typed. A 429 or a 503 is retried up to four attempts with exponential backoff, honouring the provider's own Retry-After header; a 401 is not, because waiting will not mend a rejected credential — so the window reports “Test failed — The AI provider rejected the credential (HTTP 401).” An account out of credit is named too, and not retried either: “The AI account has no credit left (HTTP 402). Top it up with the provider, or choose another provider in Synapse’s settings.” Tools also cap the AI themselves: Assay gives warning triage sixty seconds, then records “The AI provider did not answer within 60 s — warnings are in Revit's own order”. No failure writes anything.

New to Revit: AI failures that read as a diagnosis — and a deterministic result that survives every one of them.
BIMIO · Synapse — AI settings
Synapse
Connect your AI once; every BIMIO tool gets smarter.
Configure it once here and every BIMIO tool with AI features can use it. Your key never leaves this machine unencrypted.
AI provider
OpenAI (ChatGPT)
API key (saved — leave blank to keep)
Model
gpt-4o
Privacy
Allow the selected provider
Test failed — The AI provider rejected the credential (HTTP 401).
Test connectionCloseSave
Governed

An office can lock it.

Put the office's settings file on a workstation as its firm lock and the window goes read-only, with a banner in its own words: “Your organisation has locked the AI configuration. These settings are read-only.” Every field is disabled and Save with it; Test connection still works, against what the office set. The lock fails closed — a firm file that cannot be read leaves AI off rather than letting a seat fall back to its own provider — and it carries the provider, the model and the privacy mode, never a key: keys stay with each person, on each machine.

New to Revit: an AI configuration the office sets and no seat can quietly change.
BIMIO · Synapse — AI settings
Synapse
Connect your AI once; every BIMIO tool gets smarter.
Configure it once here and every BIMIO tool with AI features can use it. Your key never leaves this machine unencrypted.
Your organisation has locked the AI configuration. These settings are read-only.
AI provider
Self-hosted (private model)
API key (optional for a private server)
Endpoint URL
http://10.0.0.12:11434/v1
Model
llama-3.3-70b
Privacy
Local only — nothing leaves this PC
Test connectionCloseSave
Attribution

Every draft names the AI that wrote it, and whether your text left the building.

The tools do not just consume the connection, they display it. On a seat running a private model, Canon's Draft with AI window carries “AI: Self-hosted (private model) (llama-3.3-70b) · local — nothing leaves this PC”, and Quire's draft header “AI: Self-hosted (private model) · local · Local-only”. Point the same seat at Claude and both chips say that instead. The privacy answer does not stop at the settings window — it rides along to the moment somebody has to sign off the result.

New to Revit: the provider, the model and the privacy answer visible where the output is judged, not only where it was configured.
BIMIO · Canon — Draft with AIAI: Self-hosted (private model) (llama-3.3-70b) · local — nothing leaves this PC
Draft a drawing set with BIMIO AIAI: Self-hosted (private model) · local · Local-only
BIMIO Misc · Views panelReset View

Someone dressed this view up to get the sheet out. Undo the tricks, keep the drawing.

Views accumulate tricks — an element painted red for a meeting, a category halftoned, a filter left over, thirty things hidden to tidy a screenshot. Reset View scans the active view, shows exactly how many of each it found, and clears only the kinds you tick — in one undoable transaction that keeps every annotation, dimension and tag, and keeps the view on its sheet. What it cannot reach, it tells you.

Free with any BIMIO licenceRevit 2024–2027Preview first — nothing writes until you confirmAnnotations are always keptOne transaction — one Ctrl+Z
▶Video guideComing soon on BIMIO’s YouTube
Why Reset View exists

The clean-up options were both worse than the mess.

To un-trick a view by hand you spelunk the V/G dialog override by override and Reveal Hidden Elements one element at a time — or you duplicate the view and lose its identity.

Revit on its own
  • Overrides hide in four places — elements, categories, filters, Hide in View — with no combined count.
  • An element whose only trick is a hidden fill pattern looks clean in every dialog.
  • Duplicating the view for a fresh start loses sheet placement, view references and dependents.
  • You never know whether the template will silently revert what you just cleared.
The same view, through Reset View
  • Four counts up front: Element, Category, Filter, Hidden — before anything changes.
  • A 21-channel probe catches even a hidden fill pattern or a forced detail level.
  • Resets in place — the view keeps its sheet, references and dependent views.
  • Template-governed kinds are flagged and skipped, never silently reverted.
  • What the API can't reach is stated, with the manual route for each.
How Reset View works · input → output

See the counts. Confirm once. Watch them drop.

The whole input half is a read-only preview — nothing writes until you pass one confirm dialog. The output is a single named transaction with a receipt you can believe.

Isolate:
INInput · the read-only preview
What's overriding this viewThe active view — scanned on open, and again each time you press the button
Element · Category · Filter · HiddenTemplate lock detectedDependents counted
OUTOutput · one confirmed transaction
✓Cleared · element, category and filter overrides reset to defaults
✓Un-hidden · elements hidden in this view revealed again
!Template-locked · governed by the view template — left untouched, reported
–Out of reach · per-edge Linework and elements inside links — named in the caveat
1
one named transaction — a single Ctrl+Z brings the view back

Tap Input or Output to isolate a half — the other collapses.

INThe input · a read-only preview

The active view, X-rayed in four numbers.

The window opens scanning, and lands on the view's name, its template, and the four counts. Nothing has been touched yet.

Whoever inherits the view

The scan is read-only — close the window and nothing happened

Open it

The active view, X-rayed in four numbers.

The window opens on “Scanning the active view…” and lands on the view's name, kind and template line, with the four counts — Element, Category, Filter, Hidden. The probe checks 21 override channels, so an element whose only trick is a hidden fill pattern or a forced detail level is still caught. Sheets and schedules are declined in plain words: “Sheets have nothing to reset — open a view instead.”

New to Revit: the view's whole disguise, counted before anything changes.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
Choose what to clear, then reset. Annotations are always kept.
A104 — Level 2 PlanFloor plan · No view template
214Element
3Category
5Filter
12Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
LogRescanReset view
The 21 channels

One tick box asks twenty-one questions of every element.

“Element graphic overrides (colour, line, pattern, transparency, halftone)” is one line on screen and twenty-one questions underneath — six about lines, six about surface patterns, six about the cut, and three about the element as a whole. Five of those are the ones simpler tools skip: the four pattern-visibility tick boxes, which default to on, so an unticked one is itself an override, and a detail level forced away from the view's own. Every element in the view is asked all twenty-one.

New to Revit: the difference between a view that looks clean and a view that is.
BIMIO · Reset View — View reset
Element graphic overrides (colour, line, pattern, transparency, halftone)214Element
Lines6
Projection line colourCut line colourProjection line weightCut line weightProjection line patternCut line pattern
Surface6
Surface foreground colourSurface background colourSurface foreground patternSurface background patternSurface foreground pattern hiddenSurface background pattern hidden
Cut6
Cut foreground colourCut background colourCut foreground patternCut background patternCut foreground pattern hiddenCut background pattern hidden
Whole element3
TransparencyHalftoneDetail level overridden
Choose

Tick the kinds — the template gets a veto.

Four kinds default on; resetting the dependent views is opt-in and only offered when dependents exist. And when the view template governs categories or filters, an amber band says so before you press anything — “reset can't clear those here; edit the template” — because clearing something the template will silently re-impose is worse than not clearing it.

New to Revit: a reset that respects who really owns each setting.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
Choose what to clear, then reset. Annotations are always kept.
A104 — Level 2 PlanFloor plan · Template: ARC — Plans
214Element
3Category
5Filter
12Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
⚠Category and filter overrides are governed by view template “ARC — Plans” — reset can't clear those here; edit the template.
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
LogRescanReset view
The grey button

Untick everything and the reset button switches itself off.

Reset view is live only while three things hold together: the view carries overrides at all, the scan found something, and at least one kind is ticked. Untick all four and it greys out with the counts still on screen — 214, 3, 5 and 12, none of them at risk. The same guard covers views with nothing to reset: on a sheet the whole list greys and the live line of the header reads “Sheets have nothing to reset — open a view instead.”

New to Revit: a write button that cannot be fired into a no-op.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
Choose what to clear, then reset. Annotations are always kept.
A104 — Level 2 PlanFloor plan · No view template
214Element
3Category
5Filter
12Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
LogRescanReset view
Honest limits

What it can't reach, it says out loud.

A permanent card lists the Revit API's blind spots — per-edge Linework, a linked model's display settings, and overrides or Hide-in-View on elements inside links — each with its manual route: the Linework tool set to By Category, Reveal Hidden Elements, Visibility/Graphics ▸ Revit Links. The one promise Reset View refuses to make is “100% pristine”, because the API cannot keep it.

New to Revit: a tool that documents its own reach — in the window, not in a footnote.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
Choose what to clear, then reset. Annotations are always kept.
A104 — Level 2 PlanFloor plan · No view template
214Element
3Category
5Filter
12Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
LogRescanReset view
You've seen the counts — now the only write, and it asks first.

“Every annotation, dimension and tag is kept. This can be undone with Ctrl+Z.” — the dialog's own words.

OUTThe output · one confirmed transaction

Everything clears at once — and one Ctrl+Z brings it back.

One dialog stands between the preview and the write. Then a single named transaction, a receipt in a full sentence, and an immediate rescan so the counts visibly drop.

You — with an undo that means it

“BIMIO Reset View — reset overrides”: one transaction, one Ctrl+Z

The ask

One dialog stands between the preview and the write.

Reset view is the only button that writes, and it asks first. The question names the view it is about to touch — and counts its dependent views if you ticked them — then promises what it keeps: every annotation, dimension and tag, with Ctrl+Z as the exit. The window is modeless, so that name is your last check that it is still aimed at the view you mean. Cancel costs nothing; the preview stays on screen.

New to Revit: a graphics reset you can approve calmly, with the counts in front of you.
Warning
!
Reset view
Reset the selected overrides in “A104 — Level 2 Plan”? Every annotation, dimension and tag is kept. This can be undone with Ctrl+Z.
CancelReset
One transaction

Cleared in place — the view keeps its identity.

Every clear runs inside “BIMIO Reset View — reset overrides”: element, category and filter overrides reset to defaults, hidden elements revealed in a batch with a one-at-a-time fallback so one bad id never loses the rest. The view is reset in place, never duplicated — it keeps its sheet placement, its view references, its dependents. And if Revit rolls the commit back, every counter zeroes, so the summary cannot claim work that was undone — the receipt line says so instead: “Revit undid it at the last moment, so nothing was saved.”

New to Revit: a fresh view that is still the same view, everywhere it is referenced.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
This view is already clean — nothing to reset.
A104 — Level 2 PlanFloor plan · No view template
0Element
0Category
0Filter
0Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
Reset 214 element overrides, 3 category overrides and 5 filter overrides, and un-hid 12 elements across 1 view.
LogRescanReset view
What the veto spares

A locked template stops two kinds, not all four.

Only category and filter graphics can belong to a view template. Per-element overrides and Hide-in-View never can — so under the strictest template in the office, the wall someone painted red still clears and the twelve things hidden for a screenshot still come back. The counts say it without arithmetic: Element 0, Hidden 0, Category still 3, Filter still 5, the amber band still up, and a receipt that names the template it refused to fight: “clear them in the template.”

New to Revit: a clean-up that works on templated views, and is specific about the part it left alone.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
Choose what to clear, then reset. Annotations are always kept.
A104 — Level 2 PlanFloor plan · Template: ARC — Plans
0Element
3Category
5Filter
0Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
⚠Category and filter overrides are governed by view template “ARC — Plans” — reset can't clear those here; edit the template.
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
Reset 214 element overrides, and un-hid 12 elements across 1 view. Category and filter overrides are governed by view template “ARC — Plans” and were left untouched — clear them in the template.
LogRescanReset view
The receipt

A sentence you can believe.

The outcome is written in words, not a spinner: “Reset 214 element overrides, 3 category overrides and 5 filter overrides, and un-hid 12 elements across 1 view.” — with “Some items were skipped — see the log.” when that is true, and the template note when kinds were left untouched. The window rescans immediately, so the receipt and the evidence sit side by side: here one element refused, the sentence says 213, and the Element count still reads 1 — together, the 214 the scan found.

New to Revit: a reset whose report you can check against the counts, live.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
Choose what to clear, then reset. Annotations are always kept.
A104 — Level 2 PlanFloor plan · No view template
1Element
0Category
0Filter
0Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
Reset 213 element overrides, 3 category overrides and 5 filter overrides, and un-hid 12 elements across 1 view. Some items were skipped — see the log.
LogRescanReset view
Follow the view

The window is never pinned to the view it opened on.

Nothing is bound at open time — every scan reads whatever view is active now. So one window walks a whole set: change view in Revit, then press Rescan — or click Reset View on the ribbon again, which rescans the view in front instead of only raising the window — read the four counts, reset the ones that warrant it. A reset always lands on the view of the last scan, the one the question names, and only in the model it was scanned in: with another model in front it refuses in the receipt line — “Nothing was reset” — and tells you the way back: “Switch back to it, or press Rescan.” A manual rescan clears the previous receipt rather than leaving a sentence hovering over numbers it no longer describes. And Log opens the folder each run is written to, which is where “Some items were skipped — see the log.” is sending you.

New to Revit: one window for the whole set, instead of one dialog per view.
BIMIO · Reset View — View reset
Reset View
Undo the graphic overrides and tricks on the active view.
Choose what to clear, then reset. Annotations are always kept.
A105 — Level 3 PlanFloor plan · No view template
8Element
0Category
1Filter
0Hidden
What to clear
Element graphic overrides (colour, line, pattern, transparency, halftone)
Category graphic overrides
View-filter graphic overrides
Un-hide elements hidden in this view
Also reset this view's dependent views
ⓘPer-edge Linework, a linked model's display settings, and both overrides and Hide-in-View on individual elements inside linked models aren't reset through the Revit API. Clear Linework with the Linework tool set to “By Category”; reveal an element hidden inside a link with Reveal Hidden Elements ▸ Unhide; adjust a link under Visibility/Graphics ▸ Revit Links; or duplicate the view with detailing for a fully clean copy.
LogRescanReset view
BIMIO Misc · Views panelTrace

Why can't I see this? Trace answers before you finish asking.

Every Revit user has lost an hour to an element that simply is not there. Trace picks the element — in the model, inside a link, or by ID — and runs its visibility checklist across any views you choose, live, in the order an expert would ask. Green means ruled out; amber and red are the app's own “possible cause” and “definite cause”. A handful of causes fix themselves in one click. Revit 2024–2027.

Free with any BIMIO licenceRevit 2024–2027Read-only — fixes are opt-in, one Ctrl+ZLinks and multi-element batchesSelf-contained HTML report
▶Video guideComing soon on BIMIO’s YouTube
Why Trace exists

The invisible element.

Revit has a dozen ways to hide something and no way to ask which one it was.

Without Trace
  • V/G, filters, view range, worksets, phases — checked by hand, in whatever order you remember.
  • Linked elements: is it the link, the host view, or the element?
  • “It's hidden somewhere” written into an RFI with no evidence.
  • The one exotic cause — a plan region, a far clip — never found.
With Trace
  • The checks run for you — basics first, cards in the order an expert asks.
  • The link layer has its own checks: loaded, visible in host, display settings.
  • Copy findings pastes the causes; Export report hands over the whole diagnosis.
  • Ground truth from a render walk: if Revit draws it, Trace says you're looking in the wrong place.
A visibility diagnosis, live

Pick it. Watch the checklist resolve. Fix what it finds.

Trace is purely on-demand and read-only — no event subscriptions, no persistence. The only writes are the one-click fixes you ask for, each in its own transaction, each one Ctrl+Z away.

Pick it

The element you can't see — clicked, linked or typed.

Pick element… hands Revit the click — “Trace: click the host element you can't see.” — and In link… Tab-cycles into linked models. Or type an ID, or just keep your current Revit selection: a whole multi-selection becomes a batch — up to 250 at once. Then choose the views: the active one, or any set of printable views from the picker. And Trace remembers which model you picked in: switch model and the pick is cleared rather than run against the wrong file.

New to Revit: one question — “why can't I see this?” — asked of any element, anywhere.
BIMIO · Trace — Why can't I see this?
Trace
Find out why an element is not showing in a view.
Element ready. Pick views and Analyze.
ELEMENT
Pick elementBy ID
Pick element…In link…Linked: Ducts "Default" · MT-MEP-Block A.rvt
VIEWS TO CHECK
Active viewPick views…
Active view + 3 view(s)
FastAnalyze
Watch it think

A checklist that resolves in front of you.

Analyze sweeps card by card — Existence & selection before Visibility & graphics before View extent and View context — each row lighting up, then landing green, amber or red, one step at a time so the order teaches; the Fast toggle skips the animation for bulk runs. Finished views collapse, causes sort to the top, and the view's summary settles on its verdict: Found the cause.

New to Revit: the expert's checklist, running itself while you watch.
BIMIO · Trace — Why can't I see this?
Trace
Find out why an element is not showing in a view.
Checking…
ELEMENT
Pick elementBy ID
Pick element…In link…Walls "Generic - 200mm"
VIEWS TO CHECK
Active viewPick views…
▼A104 — Level 2 Plan · FloorPlanChecking…
Causes (0)Ruled out (0)N/A (0)
Existence & selectionADVANCED
✓
Element still exists in the model
The element exists.
Show where
!
Revit actually draws this element here
Revit doesn't draw this element in this view — so it really is hidden. The checks below identify why.
Show where
Visibility & graphicsADVANCED
✓
Category is visible in this view (V/G)
The category "Walls" is on.
Show where
✕
Element is not hidden in this view
The element was manually hidden in this view (Hide in View → Elements).
Show whereFix it
✓
No view filter is hiding it
No applied filter hides this element.
Show where
View extentADVANCED
✓
Inside the crop region
The element is inside the crop region.
Show where
✓
Within the view range
The element falls within the view range.
Show where
View contextADVANCED
⋯
Phase shows the element
·
Element's workset is open and visible
·
Design option is shown here
FastStopAnalyze
Ground truth

“Revit actually draws this element here.”

One render walk per view asks Revit what it truly drew. When every rule lands green and the walk says drawn, Trace refuses to shrug: “No cause found — and Revit IS drawing this element here. You're likely looking at the wrong place, it's behind something, or it's off-screen.” And when temporary hide/isolate blinds that walk, Trace says so rather than guess.

New to Revit: a diagnosis anchored to what Revit drew — not just to the settings.
BIMIO · Trace — Why can't I see this?
Trace
Find out why an element is not showing in a view.
No cause found — and Revit IS drawing this element here. You're likely looking at the wrong place, it's behind something, or it's off-screen.
ELEMENT
Pick elementBy ID
Pick element…In link…Walls "Generic - 200mm"
VIEWS TO CHECK
Active viewPick views…
Show:Causes (0)Ruled out (17)N/A (12)
▼S-201 — Section AA · SectionNothing found
Causes (0)Ruled out (17)N/A (12)
Existence & selectionADVANCED
✓
Element still exists in the model
The element exists.
Show where
✓
Revit actually draws this element here
Revit DOES draw this element in this view — so nothing is hiding it. You may be looking at the wrong place, it may be behind or inside something, or outside the visible area. Try "Find a view where it shows" or zoom to it.
Show where
Visibility & graphicsADVANCED
✓
Category is visible in this view (V/G)
The category "Walls" is on.
Show where
✓
Element is not hidden in this view
The element is not manually hidden.
Show where
FastCopy findingsExport reportFind a view where it showsAnalyze
Fix it

The binary causes undo themselves.

On every row that lands green, amber or red, Show where opens the view and highlights the element; on a red or amber one, Fix it repairs the reversible causes — temporary hide/isolate, a category turned off, hidden in view, a hidden sub-category, workset visibility — inside one transaction, one Ctrl+Z, then re-runs just that check so you watch it flip green, and if Revit rolls the change back, the headline says so instead of claiming it. And when a view template owns Model Categories, the category fix refuses and names the template, instead of committing a change Revit would silently revert.

New to Revit: a fix that re-checks itself — and refuses when the template owns the answer.
BIMIO · Trace — Why can't I see this?
Trace
Find out why an element is not showing in a view.
Found 2 causes.
ELEMENT
Pick elementBy ID
Pick element…In link…Walls "Generic - 200mm"
VIEWS TO CHECK
Active viewPick views…
Show:Causes (4)Ruled out (13)N/A (12)
▼A104 — Level 2 Plan · FloorPlanFound 2 causes
Causes (4)Ruled out (13)N/A (12)
Existence & selectionADVANCED
!
Revit actually draws this element here
Revit doesn't draw this element in this view — so it really is hidden. The checks below identify why.
Show where
✓
Element still exists in the model
The element exists.
Show where
Visibility & graphicsADVANCED
✕
Category is visible in this view (V/G)
The category "Walls" is turned OFF in this view's Visibility/Graphics. This is locked by view template "ARC — Plans" — change it on the template, not the view.
Show whereFix it
✕
Element is not hidden in this view
The element was manually hidden in this view (Hide in View → Elements).
Show whereFix it
!
View template isn't locking visibility here
View template "ARC — Plans" controls Model categories (V/G) here — those are greyed out in Visibility/Graphics. If the cause is one of them, edit the template, not the view.
Show where
FastCopy findingsExport reportFind a view where it showsAnalyze
Ask for the crowd

Fifty elements, one honest answer per check.

Select fifty elements and Analyze: every check folds its answers into one row that never implies more than it covered — “3 of 50 elements —” followed by the check's own sentence when it hits some, “Ruled out for all 50 elements.” when it clears them, and a counted note when any element could not be evaluated. Select N affected grabs the whole flagged set in the view; the per-element Fix it steps aside, so a green row can never claim it fixed a crowd.

New to Revit: batch honesty — a fold that says exactly how many it covered.
BIMIO · Trace — Why can't I see this?
Trace
Find out why an element is not showing in a view.
50 elements · Found 2 causes.
ELEMENT
Pick elementBy ID
Pick element…In link…50 selected elements
VIEWS TO CHECK
Active viewPick views…
Show:Causes (3)Ruled out (20)N/A (6)
▼A101 — Ground Floor Plan · FloorPlanFound 2 causes
Causes (3)Ruled out (20)N/A (6)
Existence & selectionADVANCED
!
Revit actually draws this element here
5 of 50 elements — Revit doesn't draw this element in this view — so it really is hidden. The checks below identify why.
Select 5 affected
✓
Element still exists in the model
Ruled out for all 50 elements.
Visibility & graphicsADVANCED
✕
Element is not hidden in this view
3 of 50 elements — The element was manually hidden in this view (Hide in View → Elements).
Select 3 affected
✓
No view filter is hiding it
Ruled out for all 50 elements.
View extentADVANCED
✓
Inside the crop region
Ruled out for all 50 elements.
✓
Within the view range
Ruled out for all 50 elements.
View contextADVANCED
✕
Element's workset is open and visible
2 of 50 elements — The workset "ARC-Partitions" is set to hidden in this view.
Select 2 affected
FastCopy findingsExport reportFind a view where it showsAnalyze
No dead ends

When it shows somewhere else, Trace takes you there.

Find a view where it shows walks the printable views for the first one where the element has geometry to draw, switches to it and zooms. Across many views the headline keeps score — “Cause found in 2 of 6 views.” — and Stop keeps the partial results, so nothing is lost to impatience. The built-in manual is generated from the same registry as the checks themselves, so it can never drift from what Trace actually tests.

New to Revit: an exit from every dead end — including the honest one.
BIMIO · Trace — Why can't I see this?
Trace
Find out why an element is not showing in a view.
Cause found in 2 of 6 views.
ELEMENT
Pick elementBy ID
Pick element…In link…Walls "Generic - 200mm"
VIEWS TO CHECK
Active viewPick views…
Active view + 5 view(s)
Show:Causes (4)Ruled out (98)N/A (72)
▶A104 — Level 2 Plan · FloorPlanFound the cause
▶A101 — Ground Floor Plan · FloorPlanNothing found
▶A105 — Level 3 Plan · FloorPlanFound the cause
▶S-201 — Section AA · SectionNothing found
▶S-202 — Section BB · SectionNothing found
▶3D — Coordination · ThreeDNothing found
FastCopy findingsExport reportFind a view where it showsAnalyze
Hand it over

The diagnosis leaves the room.

Copy findings puts the causes on the clipboard, headed “BIMIO Trace — why can't I see this element?”, ready for an issue or an RFI. Export report writes a self-contained HTML report in the language BIMIO is set to — the diagnosis and its narrative, the verdict breakdown, every check, and the full how-to-fix manual — and opens it. In Lens, the Trace card carries a Run button: pick the views and it lists only the definite and possible causes for the selected element — or tells you it shows in the views you checked.

New to Revit: evidence you can paste — instead of “it's hidden somewhere”.
50-selected-elements_20260828_1418.html
2 definite causes
!Cause — Element is not hidden in this view · 3 of 50 elements
!Cause — Element's workset is open and visible · 2 of 50 elements
▲Possible — Revit actually draws this element here · 5 of 50 elements
✓Every check in every view, with its verdict — and the full manual
See the real output

This is an actual HTML report Trace exports — self-contained, works offline, shareable as one file. Scroll it right here, or open it full-screen.

Open full report
BIMIO Misc · Misc panelAtlas

Lost in a big plan? Atlas puts the whole view in the corner.

Revit has no minimap: zoomed in on a large plan, finding where you are means zooming out and back in. Press Atlas and every drawing area on screen gets a card in its corner, with the whole view in miniature and a blue box over the part you are looking at. Drag the box and the view follows; pull its handles to zoom; click the thumbnail to jump. It only reads, it stays on until you press it again, and it comes free with any BIMIO licence.

Free with any BIMIO licenceRevit 2024–2027Plans, sections, elevations, sheetsRead-only — it moves the view, never the model
▶Video guideComing soon on BIMIO’s YouTube
Why Atlas exists

Revit has no minimap.

Zoomed in to work on a large plan, nothing on screen tells you which part of the building you are looking at.

Revit on its own
  • Zoomed in on a large plan, finding where you are means zooming out and back in again.
  • Panning across a big floor is drag after drag, with no sense of how far is left.
  • Zoom to Fit shows the whole view, but not where you were in it.
  • In a split window or on a second monitor, every view is another place to lose your bearings.
With Atlas
  • A thumbnail of the whole view in the corner, with a box over what you see.
  • Drag the box, pull its handles or click the thumbnail: the view follows, live.
  • A card for every view on screen, each with its own size and its own zoom.
  • Read-only: Atlas moves the view, never the model.
A minimap for every view on screen

Press it once. Drag the box. Press it again.

Atlas is a switch, not a window. It stays over the drawing while you open views, switch tabs and change model, until you press it again, and its cards close with their model.

Switch it on

One press, and every view on screen has its map.

Atlas sits on the Misc panel of the BIMIO Misc tab, right of Lens: Lens says what the element is, Atlas says where you are. Press it and each drawing area on screen gets a card in its bottom-right corner: the whole view in miniature, a blue box over the part you are looking at, and the view's name on the bar above, with its level first on a floor or ceiling plan. A tab behind another gets its card when it comes to the front. Press Atlas again and every card goes.

New to Revit: a map of the whole view that stays in the corner while you work.
Autodesk Revit 2027
Marina Tower - Floor Plan: Ground Floor PlanMarina Tower - Section: Stair core
Level 00 · Ground Floor Plan
Move the view

Drag the box, and the view follows.

The box is the part of the view on screen, and it works both ways. Drag it and Revit pans with it, live; pull one of its eight round handles, or roll the wheel over the thumbnail, to zoom; click anywhere else on the thumbnail and the view jumps there. Pan or zoom in Revit and the box follows you instead. The thumbnail has the shape of its drawing area, so the box always has the shape of what you see. None of it touches the model: moving the view is not a change to the project, so Atlas never opens a transaction.

New to Revit: panning across a large plan without losing your place.
Autodesk Revit 2027
Marina Tower - Floor Plan: Ground Floor PlanMarina Tower - Section: Stair core
Level 00 · Ground Floor Plan
Zoom the map

The thumbnail has a zoom of its own.

Four buttons on the bar work on the thumbnail, never on the view: − and + set how much ground it covers, the frame button brings it back to the whole view, and ⟳ redraws it with the drawing as it is now — the picture is taken when the card appears, and redraws by itself only when the crop region changes. Zoom so far into the plan that the box would shrink to a speck, and the thumbnail closes in around it by itself, then opens out again as you zoom back. Zoom out past the edges of the view and it grows around the drawing instead of chasing you.

New to Revit: a minimap that is still useful when you are zoomed right in.
Autodesk Revit 2027
Marina Tower - Floor Plan: Ground Floor PlanMarina Tower - Section: Stair core
Level 00 · Ground Floor Plan
Bring the thumbnail back to the whole view
One per view

Split the window, and each view keeps its own map.

With the window split, or Revit across two monitors, every view on screen has its own card in its own corner, with its own size and its own thumbnail zoom. Drag a card by its bar to put it anywhere, and right-click the bar to send it back to its corner; pull its edges, or Ctrl + wheel over the thumbnail, to resize it. The pin locks it where it is, and ✕ takes Atlas off that view only, until you reopen the view or switch Atlas off and on. The cards never take the keyboard, so your shortcuts keep going to Revit.

New to Revit: two views side by side, each with its own map.
Autodesk Revit 2027
Marina Tower - Floor Plan: Ground Floor Plan
Level 00 · Ground Floor Plan
Level 00 · Ground Floor PlanDrag to move · right-click to send it back to the corner
Marina Tower - Section: Stair core
Stair core
Sheets

Sheets have a map too. 3D views get a reason.

Atlas maps floor, ceiling, structural and area plans, sections, elevations, detail and drafting views, legends and sheets. On a sheet the thumbnail is the paper. If the sheet carries a 3D or realistic view, Atlas does not wait for Revit to render it: it draws the other views into their viewports and leaves that one as a crossed frame. Activate a viewport and the card stays the sheet's, with the box following you inside it. An orthographic 3D view gets a card that says why it is empty: “Atlas cannot map a 3D view. It works on plans, sections, elevations, drafting views, legends and sheets.”

New to Revit: moving around a sheet the way you move around a plan.
Autodesk Revit 2027
Marina Tower - Sheet: A101 - General Arrangement
General Arrangement
Marina Tower - 3D View: {3D}
{3D}
Atlas cannot map a 3D view. It works on plans, sections, elevations, drafting views, legends and sheets.
BIMIO Misc · Misc panelScript

Your scripts, one click from the model.

Script is a library of scripts that run on the open model. C# comes first — it is compiled before a line of it runs — then Python 3.12, embedded with nothing to install, and VB.NET. Paste the Python you wrote for a Dynamo node and it runs as it is; or describe the job and BIMIO Synapse drafts it with the AI account your office connected. In Automatic mode a run is one named transaction that Ctrl+Z takes back, and a script can be sealed into the .rvt so the model carries it. Script sits on the BIMIO Misc tab, free with any BIMIO licence, in Revit 2024–2027.

Free with any BIMIO licenceC# · Python 3.12 · VB.NETC# checked before it runsRevit 2024–2027
▶Video guideComing soon on BIMIO’s YouTube
Why Script exists

Every office has scripts. Revit has nowhere to keep them.

Ten lines that rename, audit or export are worth keeping — and today they live in a Dynamo graph, a macro module or somebody's Downloads folder.

Revit on its own
  • A ten-line check needs a Dynamo graph around a Python node, or a macro module to build.
  • Nothing lists the scripts the office has, what each one does, or whether it changes the model.
  • The script stays on one PC; the model it was written for travels without it.
The same ten lines, with Script
  • Type it, paste it or describe it — C#, Python 3.12 or VB.NET — and press Run.
  • One list: name, category, tags, description, the last run, and a “writes” badge on the scripts that change the model.
  • Share a folder with the team, or seal the script into the .rvt itself.
How Script works · input → output

One person writes it. Everyone runs it.

The input is a script in the library — typed, pasted or drafted once. The output is what the rest of the team gets: a Run button, a run they can undo, and a script that can live in a shared folder or inside the model.

Isolate:
INInput · written once
A script in the libraryWhoever can read a line of code — or describe one
C# · Python 3.12 · VB.NETTyped, pasted or draftedAutomatic or Manual transaction
OUTOutput · anyone runs it
✓Run · one click; in Automatic mode one transaction, one Undo
✕Error · the failing line; in Automatic mode the run is rolled back
•Team folder · one list for everyone who adds it
•Sealed · inside the .rvt, and through Graft
the model changed in one undoable step — or only read

Tap Input or Output to isolate a half — the other collapses.

INThe input · the script

Write it once — or describe it, or paste it.

The library is the front door; each script opens in an editor of its own.

Whoever writes the script

Once. C# first, Python 3.12 and VB.NET beside it

The library

It opens with nine scripts you can already run.

Script opens on a list, not on an empty editor. The first time, nine starter scripts are waiting — five in Python 3.12, three in C#, one in VB.NET — each with a name, a category, tags, and a line that says what it does and whether it only reads. The two that change the model wear a “writes” badge, so a one-click Run never surprises. Search looks in the name, the description, the tags and the code itself: type ROOM_NAME and the two scripts that read that parameter are what is left. Every column but Actions filters from the funnel in its header, and Group by splits the list by category, language, tag or source when it grows.

New to Revit: a list of scripts searched by what their code says, with the language and the last run on every row and a “writes” badge on the ones that change the model.
Who: Anyone — the starter scripts need no code
BIMIO · Script — Script library
Script
Run Python, C# or VB.NET on the model from your library.
9 scripts · C# (Roslyn 4.11.0.0) · Python 3.12.7 (CPython) · VB.NET
New scriptImport…Export…Open folderSettings
Search name, tags, code…Group byNoneCategoryLanguageTagSource
NameLanguageCategoryTagsLast runModelActions
Count elements by category
Counts the model elements (instances, not types) per category and prints the twenty largest. Read-only.
Python 3.12Model infocategories, reportneverNot sealedSealRun
Create a placeholder sheetwrites
Writes: creates one placeholder sheet numbered from the constants at the top, inside a transaction the script opens and commits itself (Manual mode). Shows how a script manages its own transaction.
C#Sheetssheets, createneverNot sealedSealRun
Export room list to CSV
Writes number, name, level and area of every placed room to a time-stamped CSV on your Desktop and prints the path. Reads the model, writes a file.
Python 3.12Exportrooms, csv, exportneverNot sealedSealRun
Find unplaced rooms
Lists the rooms that exist in the model but are not placed (no location, zero area). Read-only.
C#Model inforooms, auditneverNot sealedSealRun
List levels
Prints every level with its elevation in the project's units, lowest first, and returns the count. Read-only.
Python 3.12Model infolevels, reportneverNot sealedSealRun
Rename selected views with a prefixwrites
Writes: adds the prefix at the top of the code to the name of every selected view (templates skipped). Select views in the Project Browser first; with nothing selected it does nothing and says so. One transaction, undo with Ctrl+Z.
C#Viewsviews, renameneverNot sealedSealRun
Select all walls of the same type
Select one wall first: the script selects every wall in the model that shares its type. Changes the selection only, never the model.
Python 3.12Selectionwalls, selectionneverNot sealedSealRun
Sheet list
Prints every sheet as number — name, sorted by number, and returns the count. Read-only.
VB.NETSheetssheets, reportneverNot sealedSealRun
Warnings summary (pyRevit style)
Groups the model's warnings by description and prints them most frequent first. Written the way a pyRevit script is (__revit__, clr.AddReference) to show that such scripts run here as they are. Read-only.
Python 3.12Model infowarnings, audit, pyrevitneverNot sealedSealRun
Runs on: Marina Tower
The editor

A script is a name, a language and a method body.

Double-click a row and the script opens in a window of its own. The language is at the top — C# first, then Python 3.12 and VB.NET — and the line under it says what you write: in C#, a method body, like a Revit macro. No class, no project, no build. Around the code is everything the list shows — name, category, tags, description — and the two answers that matter before anyone presses Run: does it write to the model, and who owns the transaction. Automatic wraps the whole run in one transaction named after the script; Manual lets the script open its own. doc, uidoc, uiapp, app and selection are already there; Print(x) writes a line and return x hands back a value. Run — or Ctrl+Enter — executes what is on screen without saving it; Ctrl+S saves, Ctrl+Shift+Enter saves and runs.

New to Revit: a C# method body runs on the open model as it stands — no module to build, no add-in, no restart.
Who: Whoever writes the script
Rename selected views with a prefix
C#Python 3.12VB.NET
C# · a method body, like a Revit macro
Name
Rename selected views with a prefix
Category
Views
Tags
views, rename
Transaction
AutomaticManual
Automatic wraps the whole run in one transaction named after the script and rolls it back if the script throws. Manual: the script opens its own.
Writes to the model
Description
Writes: adds the prefix at the top of the code to the name of every selected view (templates skipped). Select views in the Project Browser first; with nothing selected it does nothing and says so. One transaction, undo with Ctrl+Z.
1234567891011121314151617181920212223242526
const string Prefix = "WIP - "; var views = selection.OfType<View>().Where(v => !v.IsTemplate).ToList();if (views.Count == 0){ Print("Select the views first (in the Project Browser) — nothing renamed."); return null;} int renamed = 0;foreach (var view in views){ if (view.Name.StartsWith(Prefix)) continue; try { view.Name = Prefix + view.Name; renamed++; } catch (Exception ex) { Print($"Could not rename '{view.Name}': {ex.Message}"); }}Print($"{renamed} of {views.Count} views renamed");return renamed;
RunRuns on: Marina TowerAsk AISaved 09:12Seal into modelSaveCloseSave & Close
Ask AI

Or describe it, and read what comes back.

New script opens the editor with the Ask AI pane already out. Describe the job in plain words and BIMIO Synapse — the AI connection the whole suite shares, free on the same tab — drafts it in the language selected at the top, with a paragraph saying what it does and what it touches. Nothing lands in your code until you say so: Use this code, Append or Discard. The line under the buttons names the provider and says whether your request leaves the machine; with a self-hosted model it reads “nothing leaves this machine”. Improve changes the code you already have; Fix sends the code and the last error, and only lights up after a failed run. With no AI provider connected in Synapse, the pane says so and offers Open Synapse settings — and everything else in Script works the same.

New to Revit: a script drafted from a sentence, inside Revit, by the AI account your office already connected — and shown to you before it touches your code.
Who: BIMIO Synapse drafts — you decide
Untitled
C#Python 3.12VB.NET
C# · a method body, like a Revit macro
Name
Category
(uncategorised)
Tags
Transaction
AutomaticManual
Automatic wraps the whole run in one transaction named after the script and rolls it back if the script throws. Manual: the script opens its own.
Writes to the model
Description
1
RunRuns on: Marina TowerAsk AINot saved yetSeal into modelSaveCloseSave & Close
Ask AIHide
Describe what the script should do
List every door with an empty Mark, with its level, and say how many there are.
DraftImproveFix
AI: Anthropic (Claude) · your request and code leave this machine
Read it over, then use it, append it or discard it.

Collects every door instance, prints the id and level of each one whose Mark is empty, and returns the count. Read-only: it changes nothing.

var doors = new FilteredElementCollector(doc).OfCategory(BuiltInCategory.OST_Doors).WhereElementIsNotElementType().ToList();
int empty = 0;
foreach (var door in doors)
{
string mark = door.get_Parameter(BuiltInParameter.ALL_MODEL_MARK)?.AsString();
if (!string.IsNullOrWhiteSpace(mark)) continue;
Print($"{door.Id.Value} {doc.GetElement(door.LevelId)?.Name}");
empty++;
}
return $"{empty} of {doors.Count} doors have no Mark";
Use this codeAppendDiscard
The check before the run

C# is compiled before a line of it runs.

This is why C# comes first. Press Run and the script is compiled before any of it executes, so a mistyped name stops right there: the output says Compile, quotes the compiler, and “line 17” puts the caret on it — the line stays marked in the gutter until you edit it. A Python script cannot promise that: it fails on the line it reaches, an Automatic run is rolled back, and the traceback waits under Show details. Either way, with Synapse connected, Fix in the Ask AI pane sends the code and that error, and you read the answer before you take it.

New to Revit: a compile check, with the failing line one click away, between a typed script and the model.
Who: Whoever writes the script
Rename selected views with a prefix •
C#Python 3.12VB.NET
C# · a method body, like a Revit macro
1011121314151617181920212223242526
int renamed = 0;foreach (var view in views){ if (view.Name.StartsWith(Prefix)) continue; try { view.Name = Prefix + view.Name; renamd++; } catch (Exception ex) { Print($"Could not rename '{view.Name}': {ex.Message}"); }}Print($"{renamed} of {views.Count} views renamed");return renamed;
RunRuns on: Marina TowerAsk AIUnsaved changesSeal into modelSaveCloseSave & Close
errorRename selected views with a prefixC#874 msMarina Tower
CompileThe name 'renamd' does not exist in the current contextline 17
Show details
Copy
The Python you already have

A Dynamo Python-node script runs as it is.

Most Python written for Revit was written for Dynamo's Python node. Pick Python 3.12, paste it, press Run: clr.AddReference('RevitServices') is accepted, DocumentManager.Instance.CurrentDBDocument is the active document, TransactionManager's calls fall inside the run's own transaction, IN[0] is whatever is selected in Revit, UnwrapElement(x) gives x back, and OUT shows as the result. A script written the pyRevit way — __revit__, clr.AddReference — runs too; one of the starter scripts is there to prove it. Python is CPython 3.12, embedded: nothing to install and no pip — the standard library, plus any folders you list in Settings. What does not come along is Dynamo itself: a reference to RevitNodes, ProtoGeometry or DSCoreNodes raises an ImportError that says so.

New to Revit: the code inside a Dynamo Python node, run without the graph.
Who: Whoever has the script — no rewrite
Door count (from Dynamo) •
C#Python 3.12VB.NET
Python 3.12 (CPython, embedded) · modern syntax
123456789
import clrclr.AddReference('RevitAPI')from Autodesk.Revit.DB import FilteredElementCollector, BuiltInCategoryclr.AddReference('RevitServices')from RevitServices.Persistence import DocumentManager doc = DocumentManager.Instance.CurrentDBDocumentdoors = FilteredElementCollector(doc).OfCategory(BuiltInCategory.OST_Doors).WhereElementIsNotElementType().ToElements()OUT = "{0} doors".format(len(doors))
okDoor count (from Dynamo)Python 3.1224 msMarina Tower
result214 doorsCopy
Saved once — anyone on the model presses Run.

From here on nobody needs to read the code: the list says what each script does, whether it writes, and how its last run went.

OUTThe output · the run, and where the script lives

One click — on your PC, in the team's folder, or inside the model.

Three places a script can live, one way to run it.

Everyone on the model

Free with any BIMIO licence — no licence of its own

Run

One click. One transaction. One Undo.

Run is the last column of the list, and the line at the foot of the window names the model it will land on before you press it. While the script runs, Revit and the window wait — there is no Stop — and then the drawer opens: ok or error, the time it took, what the script printed and the value it returned. If it changed the model, the header counts what was added, modified and deleted and reminds you how to take it back: in Automatic mode, the default, the whole run is one transaction named after the script in Revit's Undo list, so Ctrl+Z undoes all of it. If the script throws, that transaction is rolled back; if Revit had something to say when it committed — a warning, or the reason it refused — that is copied into the output. The list always runs the saved code, and says so when an editor holds changes it has not saved. Script itself never saves and never synchronises.

New to Revit: a script run that lands as one named transaction, with a count of what it changed and the name of the model it ran on.
Who: Anyone on the model
BIMIO · Script — Script library
NameLanguageCategoryTagsLast runModelActions
Rename selected views with a prefixwrites
Writes: adds the prefix at the top of the code to the name of every selected view (templates skipped). Select views in the Project Browser first; with nothing selected it does nothing and says so. One transaction, undo with Ctrl+Z.
C#Viewsviews, renamejust now✓Not sealedSealRun
okRename selected views with a prefixC#912 ms~6 modifiedUndo: Ctrl+ZMarina Tower
6 of 6 views renamed
result6CopyClear
Runs on: Marina TowerDone · 912 ms
The team's list

Point at a folder, and the office shares one library.

A script is one small file ending in .script.json. Settings lists the folders the library reads: yours first — new scripts are saved there and it cannot be removed — and any folder you add: a share, a synced SharePoint or OneDrive folder. Every script in it appears, with a “team” badge, in the list of everyone who has added that folder, and Group by Source splits the list into Mine, each team folder and This model. The same window sets the language new scripts start in, the folders Python may import from and the editor's font size, and brings back any starter script you deleted without touching the ones you edited.

New to Revit: one shared folder is the office's script library — nothing to install per script, nothing to deploy.
Who: BIM Manager picks the folder — each person adds it once
Script settings
Script settings
Where scripts come from, what Python can import, and how the editor looks. Nothing here touches a model.
Library folders
Every *.script.json in these folders is listed in the library. The first folder is yours: new scripts are saved there. Add a team share to see everyone's scripts.
C:\Users\jsmith\AppData\Roaming\BIMIO\Script\libraryhome
\\office\BIM\Scripts
AddRemove
CancelSave
In the model

Seal it, and the script travels inside the .rvt.

The Model column answers one question per script: does the open model carry it? Seal stores a copy inside the model — one transaction, Ctrl+Z undoes it — and your file stays where it is. From then on the script goes wherever the .rvt goes: a colleague who opens the model with BIMIO finds it listed as “In model only”, runs it from there, and Keep a copy saves it to their own library. Change the code afterwards and the pill turns “Sealed · outdated” until you Re-seal. Sealed scripts are also one of the things Graft can carry from one project to the next. Projects hold them; families cannot.

New to Revit: a script stored in the model itself — whoever opens the .rvt has it, with no file to send.
Who: The author seals — the next person finds it
You
NameLanguageModel
List levels
Prints every level with its elevation in the project's units, lowest first, and returns the count. Read-only.
Python 3.12Not sealedSeal
Rename selected views with a prefixwrites
Writes: adds the prefix at the top of the code to the name of every selected view (templates skipped). Select views in the Project Browser first; with nothing selected it does nothing and says so. One transaction, undo with Ctrl+Z.
C#Sealed · outdatedRe-seal
Renumber roomswrites
C#SealedUnseal
Warning
!
Seal “List levels” into Marina Tower?

A copy of the script as it is now is stored inside the model (one transaction, Ctrl+Z undoes it). It travels with the .rvt and with Graft; your file stays as it is.

CancelSeal
A colleague, same model
NameLanguageModel
Renumber roomswritesmodel
C#In model onlyUnseal
Open
Run
Duplicate
Export…
Unseal from model
Keep a copy
Delete
The safety net

Nothing is erased, and nothing is overwritten quietly.

A library that several people and several Revit sessions write to has to be careful. Delete moves the files to the library's .trash folder, where Open folder recovers them. Save notices when the script changed on disk after you opened it — another Revit, a teammate — and asks before overwriting, keeping the other version in .trash. Closing an editor with changes asks; if Revit closes it for you, the unsaved text is kept as a recovery copy, and the editor says where the next time it opens that script. A file the library cannot read is reported in a band above the list and left exactly as it is — and so is a settings file it cannot read, until you choose to replace it.

Who: Everyone who shares the folder
Delete
Warning
!
Delete 2 scripts?

2 files move to the library's .trash folder, where Open folder can recover them. Nothing is erased.

CancelDelete
Save, when someone else saved first
Warning
!
This script changed elsewhere

This script was changed on disk after you opened it (another Revit or a teammate).

Overwrite it with your version? The other version is kept in the library's .trash folder. Cancel keeps your changes here, unsaved.

CancelOverwrite
The free tab

The tab, panel by panel.

Every button on BIMIO Misc comes with any BIMIO licence. The story runs across the tab from left to right — Misc, Select & Find, Tags & Notes, Views, Sheets & Sets, Model, Draft — and then every tool's own window. Click a button in the ribbon above to jump straight to it.

Misc

The free apps, and a hub that finds every tool.

The tab opens with the suite's free apps: Lens, Atlas, Script and Synapse, told in full above; the Hub, with the state of every BIMIO app for this project in one place; and Livery, Sugar and Vigil, stacked. Its Misc button opens the hub: a search box with every tool in it, grouped by the work it does. It matches on the words people really use — in English and Spanish, misspelled, abbreviated, and under the names of the tools it absorbed. Type “cotas” and Along Path appears; type “impacto” and IDs does — try it, this is the real catalogue. While you type it also lists the apps that moved to the BIMIO tab, such as Stencil, under Suite apps; those are bought on their own.

New to Revit: a free toolbox you search instead of memorise.
BIMIO · Misc — Toolbox
Misc
Search every Misc tool, see what it does and run it.
FREQUENT
#IDs⋯Along Path🗺Sheet Graphics№Renumber
SELECT & FIND
#IDsPaste element IDs: select them, or find what owns them.
📏MeasurePick points and read the distance, the plan run and ΔX/ΔY/ΔZ.
◎View LocatorFind which sheet hosts this view, and jump to any sheet.
VIEWS
ⒶDatum ToolsSet the heads and extents of grids, levels and section lines, with a live preview.
◐Category SwitchHide or show categories in every view and template at once.
▣AtlasA minimap of the view: see where you are and drag to move.
≠Template DiffCompare two view templates and list every difference.
SHEET GRAPHICS
🗺Sheet GraphicsScale bars, key plans and QR codes on sheets, in one pass.
RENAME & RENUMBER
№RenumberNumber elements, rooms or sheet viewports, with a preview.
⇄Find & ReplaceFind and replace text across the model, with a preview.
PATTERNS
▨Make PatternCreate fill patterns from presets, lines or a .PAT file.
CLEANUP
🧹CleanCount the model's junk first, then sweep it in one undo.
⚠WarningsEvery warning in the model on its own row, to go and fix it.
YOUR DAY
🍬SugarA joke, a quotation or a date in history, now and then.
ALONG PATH
⋯Along PathDimensions, tags, families and sections along a single run.
TAGS & NOTES
≡TidyBatch-edit the tags in a view and line up its annotation.
🔖Link KeynoteFill user keynotes with the code remembered for each type.
📐Room DimensionsDimension chosen rooms automatically, one chain per axis.
SHEETS & SETS
⌐TitlesLine up viewport titles and edit title blocks across sheets.
◰ViewportsSync viewport positions and swap their views across sheets.
☑CheckRun the pre-issue checks on a sheet set: GO or NO-GO.
△Batch RevisionAssign or remove a revision across many sheets at once.
ELEMENT DATA
≡MatchMake elements match one you point at: type and parameters.
⧈NestExplore the family matryoshka: recursive nested families.
⧉Group AuditFind the instances of a group that no longer match the rest.
⊿DWG ManagerEvery imported and linked CAD: reload, relink or delete it.
WORKSHARING
🔑WorksetsTake ownership, ask who holds the rest and assign worksets.
DRAFT
◫Region ToolsMerge, split and restyle filled regions in the active view.
▤WallsRe-level walls in place, copy constraints and set end joins.
◨Replace MaterialsSwap one material for another in the model, layers included.
⇉Merge StylesReplace one style with another everywhere it is used.
◪Attached Detail GroupsReveal, rename and duplicate attached detail groups in bulk.
⌓RecastFloors and toposolids: convert, merge, heights, subdivide.
↦Referenced ElementsFrom tags, dimensions and spot elevations to the elements they point at.
◐Hide in ViewsHide or unhide the elements in hand in the views you pick, or in the views of the sheets you pick.
⋯
Along Path
ALONG PATH
Modifies model

Fence a run once and choose any combination of outputs: an ordered dimension chain, by-category tags on everything crossing the corridor, spot elevations / coordinates plus room tags, family instances distributed every X mm (or N spread evenly), and perpendicular sections named in sequence. Dimensions, tags and spots run in plans and in sections / elevations; placing families and cutting sections need a level-based plan. Every pass shares the same picked line and commits in one transaction, with per-pass totals reported — and if Revit rejects the run the whole gesture rolls back untouched.

HOW IT WORKS
1. Tick the outputs (dimensions / tags / spots / family / sections)
2. Fence the run with a corridor box, or pick two points
3. All chosen passes are applied along that line in one transaction
↵ Enter to launch
35 tools · ↑↓ navigate · ↵ launch · esc close · amber = modifies model · green = read-only
Select & Find

Find it, then measure it.

IDs takes any pasted list of element ids and selects them, finds what owns them, or asks Revit what a delete would take with them. View Locator says which sheet hosts the active view and jumps to any sheet. Find & Replace changes text across the model — notes, sheet and view names, rooms, parameters — after showing every change, before and after. And Measure, which you reach from the hub, now gives every point's coordinates as well as the legs: from the internal origin, the project base point or the survey point.

BIMIO · Misc — Toolbox
Misc
Search every Misc tool, see what it does and run it.
FREQUENT
#IDs⋯Along Path🗺Sheet Graphics№Renumber
SELECT & FIND
📏MeasurePick points and read the distance, the plan run and ΔX/ΔY/ΔZ.
RENAME & RENUMBER
⇄Find & ReplaceFind and replace text across the model, with a preview.
WORKSHARING
🔑WorksetsTake ownership, ask who holds the rest and assign worksets.
TAGS & NOTES
🔖Link KeynoteFill user keynotes with the code remembered for each type.
ELEMENT DATA
⊿DWG ManagerEvery imported and linked CAD: reload, relink or delete it.
DRAFT
◫Region ToolsMerge, split and restyle filled regions in the active view.
⌓RecastFloors and toposolids: convert, merge, heights, subdivide.
◐Hide in ViewsHide or unhide the elements in hand in the views you pick, or in the views of the sheets you pick.
📏
Measure
SELECT & FIND
Read-only

A ruler that remembers. Pick point after point — in a 3D view they snap onto geometry, in a plan or section they land on the view's work plane — and press Esc when you are done. You get every leg with its straight distance, its run in plan and its ΔX, ΔY and ΔZ, plus the total walked and the straight line from the first point to the last, and every point's coordinates from the internal origin, the project base point or the survey point (shared coordinates) — one point alone is enough for those. Every number is in the project's own units, and the whole table copies to the clipboard in one click. Read-only: it draws nothing, writes nothing and leaves no undo step.

HOW IT WORKS
1. Run it, then pick the first point
2. Keep picking to chain more legs — each one is measured as you go
3. Press Esc to finish and read the table
4. Copy takes the whole thing to the clipboard
↵ Enter to launch
35 tools · ↑↓ navigate · ↵ launch · esc close · amber = modifies model · green = read-only
Tags & Notes

Annotation along a run, and the annotation already there.

Along Path fences one run and lays dimensions, tags, spot elevations, families and sections along it, every ticked pass in one transaction. Tidy batch-edits the tags in a view — swap the type, force leaders on or off, find the orphans — and its Tags tab now lists room, area and space tags too; its Arrange tab lines up the annotation you select. Link Keynote fills the user keynotes Revit's own command placed, from a memory kept inside the model, and Room Dimensions draws one chain per axis round the rooms you pick.

BIMIO · Misc — Toolbox
Misc
Search every Misc tool, see what it does and run it.
FREQUENT
#IDs⋯Along Path🗺Sheet Graphics№Renumber
TAGS & NOTES
🔖Link KeynoteFill user keynotes with the code remembered for each type.
ELEMENT DATA
⧈NestExplore the family matryoshka: recursive nested families.
⊿DWG ManagerEvery imported and linked CAD: reload, relink or delete it.
CLEANUP
🧹CleanCount the model's junk first, then sweep it in one undo.
SHEET GRAPHICS
🗺Sheet GraphicsScale bars, key plans and QR codes on sheets, in one pass.
PATTERNS
▨Make PatternCreate fill patterns from presets, lines or a .PAT file.
WORKSHARING
🔑WorksetsTake ownership, ask who holds the rest and assign worksets.
SUITE APPS
◳Room StudioRoom finishes from mapping sets — write parameters, build the construction, keep both current
🔖
Link Keynote
TAGS & NOTES
Modifies model

Revit's API cannot create a user keynote: a tag's Key Source (which mode it is in) is read-only, so it can never be switched into user mode from code, and an existing tag's link reference cannot be re-pointed either — every route to CREATING one from the API is a dead end. Only Revit's own “User Keynote” command can place one. So Link Keynote does not try to place anything: place the (blank) tag with Revit's own command, and this tool fills its code — reading the family/type of whatever the tag points at, linked or in this model, and looking it up in a memory that lives inside the .rvt, so it travels with the model and the whole team inherits it. Sweep the active view, fill just the tags already selected, or turn on auto-fill and every user keynote gets its code the instant it is placed. Anything the memory has never seen opens the Learn panel once — Revit's own keynote dialog never appears.

HOW IT WORKS
1. Place a user keynote with Revit's own command (Annotate ▸ Keynote ▸ User Keynote) — BIMIO cannot create one, only Revit can
2. Run Link Keynote and press “Fill in this view”, or select some tags first and press “Fill selected”
3. Anything the memory already knows is filled instantly, with no dialog at all
4. Anything new opens the Learn panel once; give it a code and it is saved into the model
5. Turn on “Auto-fill” and every new user keynote gets its code the moment it is placed
↵ Enter to launch
35 tools · ↑↓ navigate · ↵ launch · esc close · amber = modifies model · green = read-only
Views

Grids, levels — and now section lines — in every view at once.

Datum Tools sets the heads and extents of grids and levels across views, with a live preview of where each head lands, and now does section lines too: head, tail or nothing at each end, by screen side or as this view shows them, and this view's line ends copied to the rest. Revit lets only its own mouse set those per view, so the views are opened one by one and driven for you. Choose the views with Views I pick…, keep a setup as a preset in the project, and the window opens as you last applied it. Category Switch, Template Diff and the Navigator drop-down — Same spot everywhere, Model health, bookmarks — share the panel with Reset View and Trace, told in full above.

New to Revit: section heads and tails set across views without opening each one.
BIMIO · Misc — Toolbox
Misc
Search every Misc tool, see what it does and run it.
FREQUENT
#IDs⋯Along Path🗺Sheet Graphics№Renumber
VIEWS
ⒶDatum ToolsSet the heads and extents of grids, levels and section lines, with a live preview.
ELEMENT DATA
⧉Group AuditFind the instances of a group that no longer match the rest.
⊿DWG ManagerEvery imported and linked CAD: reload, relink or delete it.
RENAME & RENUMBER
⇄Find & ReplaceFind and replace text across the model, with a preview.
DRAFT
⇉Merge StylesReplace one style with another everywhere it is used.
Ⓐ
Datum Tools
VIEWS
Modifies model

Three questions, one window, and a live preview of the active view so you SEE every head land before touching anything. WHICH datums: the current selection, a pick in the model, or all grids/levels. WHAT to do: show/hide heads per SCREEN side (top, bottom, left, right — with one-click corner presets), copy this view's 2D extents across, reset dragged 2D extents back to the model, or stretch the 3D extents to cover the whole model. WHERE: this view, every sheet, sheets by number prefix, sheets you pick, or views you pick — on a sheet or not. Sides are re-translated per view, so a level keeps its head on the correct end in the north AND the south elevation. SECTION LINES work the same way, with what is theirs: at each end the head, the tail or nothing — by screen side, or as this view shows it — and the line's ends where this view has them. Revit keeps that per view and only its own mouse controls set it, so the views are opened one by one and driven for you, and the result says what could not be set and why.

HOW IT WORKS
1. 1 · WHICH: selection, pick, or all grids/levels
2. 2 · WHAT: head sides (with corner presets) and extent cures
3. 3 · WHERE: this view, all sheets, a prefix, sheets you pick, or views you pick
4. Sections too: head, tail or nothing at each end, and this view's line ends copied across
↵ Enter to launch
35 tools · ↑↓ navigate · ↵ launch · esc close · amber = modifies model · green = read-only
Sheets & Sets

The sheet set, before it goes out.

Titles lines up viewport titles and edits title blocks across sheets, and like Datum Tools keeps presets in the project and remembers its last setup. Viewports syncs viewport positions across sheets — by title block, by sheet coordinates or, new, by model coordinates, so the same point of the building lands on the same spot of every sheet — and swaps their views. Check runs the pre-issue checks on a sheet set and answers GO or NO-GO; Sheet Graphics adds scale bars, key plans and QR codes in one pass; Batch Revision assigns or removes a revision across many sheets and can now delete its clouds with it. The sheet picker they share keeps named selections as presets — in the model for the team, or on this computer.

BIMIO · Misc — Toolbox
Misc
Search every Misc tool, see what it does and run it.
FREQUENT
#IDs⋯Along Path🗺Sheet Graphics№Renumber
SHEETS & SETS
☑CheckRun the pre-issue checks on a sheet set: GO or NO-GO.
DRAFT
▤WallsRe-level walls in place, copy constraints and set end joins.
☑
Check
SHEETS & SETS
Read-only

The last gesture before you print: pick the package — a print set, sheet collection or filter — and every cheap, read-only pre-issue check runs in one pass. Viewport titles (collisions, off-sheet drift, gap and length deviations, dishonest custom scales), set integrity (references leaving the package, temporary view modes, views without a template, empty sheets) and revisions (sheets missing the document's latest revision) all fold into one combined report. One verdict — GO or NO-GO — and every finding's Show button jumps straight to the culprit.

HOW IT WORKS
1. Pick the package (print set, collection or filter)
2. Titles, set integrity and revisions are checked in one pass
3. Read the verdict — GO or NO-GO — and jump to each finding
↵ Enter to launch
35 tools · ↑↓ navigate · ↵ launch · esc close · amber = modifies model · green = read-only
Model

Every warning, one row each, to go and fix.

Warnings lists every warning Revit keeps in the model, one row each, in a window that stays open while you work: pick a category from the pills, double-click a row or press Go to and Revit selects and shows its elements, and in a workshared model it says who last changed them. It never writes — Revit offers no way to resolve a warning from outside. Clean counts the model's junk before it sweeps it, now including links that are not placed or whose file is missing. Renumber, Worksets, Match — with its own Apply beside Preview — DWG Manager, Group Audit and Make Pattern complete the panel.

New to Revit: a warning list that stays open while you fix the model.
BIMIO · Misc — Toolbox
Misc
Search every Misc tool, see what it does and run it.
FREQUENT
#IDs⋯Along Path🗺Sheet Graphics№Renumber
ELEMENT DATA
⊿DWG ManagerEvery imported and linked CAD: reload, relink or delete it.
CLEANUP
⚠WarningsEvery warning in the model on its own row, to go and fix it.
WORKSHARING
🔑WorksetsTake ownership, ask who holds the rest and assign worksets.
DRAFT
▤WallsRe-level walls in place, copy constraints and set end joins.
◪Attached Detail GroupsReveal, rename and duplicate attached detail groups in bulk.
↦Referenced ElementsFrom tags, dimensions and spot elevations to the elements they point at.
⚠
Warnings
CLEANUP
Read-onlyExports file

Every warning Revit keeps in the model, one row each, as in Review Warnings — but in a window that stays open while you work. Pick a category from the pills over the table, or filter and sort any column from its header. In a workshared model it also says who last changed the elements of each warning, read in the background while you work. Double-click a warning, or press its Go to, and Revit selects and shows its elements; pick several rows to show or select them together, copy their ids, or export what is shown to Excel — every row, and the same rows counted by kind. It never changes the model: Revit offers no way to resolve a warning from outside, so it takes you to the elements and you fix them.

HOW IT WORKS
1. Open it: every warning in the model, one row each
2. Pick a category from the pills, or filter any column from its header
3. Double-click a warning, or its Go to, to go to its elements — Ctrl and Shift pick several for Show in model or Select in model
4. Copy their ids, or export what is shown to Excel
↵ Enter to launch
35 tools · ↑↓ navigate · ↵ launch · esc close · amber = modifies model · green = read-only
Draft

Provisional, on purpose.

Draft holds the tools that act directly on model elements and have not yet earned a permanent home; where each one settles is still open. Recast turns floors into toposolids and back with the same outline, shape-editing points, level and offset, merges several into one, takes heights or subdivides — and checks every piece before anything is built. The Draft drop-down adds Hide in Views (elements of a linked model included, through Revit's own Hide in View), Referenced Elements (from tags and dimensions to what they point at), Merge Styles (one style replaced by another wherever it is used), Walls, Replace Materials, Region Tools and Attached Detail Groups.

BIMIO · Misc — Toolbox
Misc
Search every Misc tool, see what it does and run it.
FREQUENT
#IDs⋯Along Path🗺Sheet Graphics№Renumber
PATTERNS
▨Make PatternCreate fill patterns from presets, lines or a .PAT file.
DRAFT
▤WallsRe-level walls in place, copy constraints and set end joins.
⌓RecastFloors and toposolids: convert, merge, heights, subdivide.
⌓
Recast
DRAFT
Modifies model

Four ways to work with the floors and toposolids you pick. Convert each turns each one into another floor or toposolid type, keeping its outline, every shape-editing point, the split lines, the level and the offset. Merge into one folds several into a single element. Take heights edits one existing floor or toposolid in place so it follows the surfaces of the others where they lie over it — its id, tags and sub-divisions stay. Subdivide gives one toposolid a sub-division per other element, from its outline clipped to the host. Every row says what happens to that element and, when something is wrong, which element causes it; the result is measured after it is built. One transaction, never synchronised.

HOW IT WORKS
1. Select the floors and toposolids first, or add them from the window
2. Choose the type, and convert each piece or merge them into one
3. The window checks every piece against that type before anything is built
4. One transaction; the report says how closely the result matches
↵ Enter to launch
35 tools · ↑↓ navigate · ↵ launch · esc close · amber = modifies model · green = read-only
Every tool

Every tool, and what each one solves.

Every button on the tab, panel by panel in the ribbon's order, each with its own window drawn as it really is — its tabs, its lists, its buttons — and the tools only the hub reaches beside the panel of their kind. Both come from the app itself: the catalogue from the registry that builds the hub in Revit, the windows from each tool's own interface. Each one says whether it only reads your model or modifies it.

Misc

HubThe state of every BIMIO app for this project, in one place.
Free app

One window for the whole suite: a health header (score, sync cadence, insights from the shared project store) plus a tile per app — schedules pending sync, tables needing refresh, open clashes, standards violations, review progress — each with an Open button. Where Lens reads the selected element, this reads the whole project; export the shareable HTML report from the window, and nothing leaves this machine.

BIMIO · Hub
Project health
Marina Tower — Block A
Needs attentionupdated 09:41
Assay: 2 critical findings open.
72
PerformanceRefreshExport report
9Clash9 open clashes — 3 critical
412AssayLast audit: 2 findings need action
12Canon94.2% compliant — 12 open violations
3Inlay3 tables need attention: 2 to refresh from Excel, 1 not drawn yet.
Clash9
9 open clashes — 3 critical
Open9
Critical3
New last run4
Last check2 hours ago
OpenGo to
Canon12
94.2% compliant — 12 open violations
Score94.2% (+1.8 pts)
Violations12
Last audited1 day ago
Rules active34
Open
Assay412
Last audit: 2 findings need action
Health score78 / 100
Need action (last audit)2
Revit warnings412
CAD imports2
Open
Room Sheets
6 rooms without a data sheet (92% covered)
Coverage92%
Documented71 of 77
Unnamed rooms3
Open
Inlay3
3 tables need attention: 2 to refresh from Excel, 1 not drawn yet.
Linked tables9
Needing refresh2
Not drawn yet1
Last drawn3 days ago
Open
Lens
Tracking live — last change 21 min ago
Teammates 24h4
Last change21 min ago
Changes tracked12,480
Deleted 7d63
Open
Trace
Why isn't this element visible?
Open
LensThe dockable panel, free with any BIMIO licence, that follows your selection and stacks in one place everything the BIMIO suite already knows about it.
AtlasA minimap of the view: see where you are and drag to move.
ScriptRun Python, C# or VB.NET on the model from your library.
SynapseBring your own AI, connected once for the whole suite — Claude, OpenAI, Gemini, Azure or a private self-hosted model, governed by a privacy mode.
MiscSearch every Misc tool, see what it does and run it.
LiveryEach model in its own colour, on every one of its tabs.
Free app

With three models open, every tab looks the same and one wrong click lands in the wrong model. Livery gives each model a colour and puts it on every one of that model's document tabs, full strength on the view you are in.

Autodesk Revit 2027
Marina Tower - Block A - Floor Plan: Level 00Marina Tower - Block A - Section: Stair coreMarina Tower - Block B - Floor Plan: Level 00Riverside Depot - Structure - 3D View: Coordination
Each model wears its own colour on every one of its tabs, so two models open at once never get mixed up.
The wheel
BIMIO · Livery — Model colours
Livery
Each model in its own colour, on every one of its tabs.
Colours
HOW IT LOOKS
The tab you are in is filled with the model's colour; its other tabs carry the same colour, softer. Revit gives every open view its own tab, so a model's tabs always read as one family.
PROJECTS
Every model gets a colour on its own, worked out from the model itself — nothing to set up. Click a swatch to choose another one; that choice is remembered between sessions and follows the model even if it is moved or renamed.
Marina Tower - Block A
Marina Tower - Block B
Riverside Depot - StructureAutomatic
Harbour Point - Site (not open)
Northgate School - Services (not open)
What can Livery see?Close
SugarA joke, a quotation or a date in history, now and then.
Read-only

The sugar sachet with something printed on it.

Autodesk Revit 2027
Marina Tower - Floor Plan: Level 00Marina Tower - Section: Stair core
Misc · DAD JOKE
I don't trust stairs.
They're always up to something.
⚙⊘
It waits for a moment with no dialog open, your clicks pass straight through it, and then it goes away by itself.
Dad joke70BIM humour60Motivation50In history77Food for thought50Did you know80
BIMIO · Sugar — A little something
Sugar
A joke, a quotation or a date in history, now and then.
Cards
How often
Also when I synchroniseNeverRareNow and thenOftenComedy clubAbout one every 30 minutes — roughly 16 a day. With what you have switched on (387 cards) nothing repeats for 24 working days. Synchronisations are left alone.
What arrives
Each kind has its own colour on screen. Nothing repeats until the whole deck has been through.Dad jokes & puns70AEC & BIM humour60Motivation50On this day77Food for thought50Did you know80
Top the deck up from bimio.tools once a day387 cards ship inside Sugar, so it works with no internet. Quotations are copied from sources that state their provenance, and where an attribution is disputed the card says so.
Changes apply straight away, in every open Revit.Show one nowClose
VigilWhat has changed in the project's Windows folders.
Free app

Watches the folders that matter — deliveries, links, a Desktop Connector path — and tells you what was added, changed, renamed or deleted since you last looked, both live while you work and as a summary when you open the model. It doubles as an explorer inside Revit: double-click anything to reveal it in Windows, and the watched paths belong to the project and can be sealed into the model so the other models find them too.

BIMIO · Vigil — Folder watch
Vigil
What has changed in the project's Windows folders.
Marina Tower — Block A
23 unseen changes · 4 folders watched · live + every 5 min · last swept 3 min ago
FoldersChangesExploreAlertsMark all seenExport reportSweep now
2 folders are only on this PC — they are not inside the model yet.Seal into this model
Add folder…
DeliveriesC:\Projects\Marina Tower\05 Deliveries · with subfolders · 1,284 filesadded by hand
LinksC:\Projects\Marina Tower\03 Links · with subfolders · 96 filesadded by hand
Project FilesC:\Users\rwhitlock\ACCDocs\Fairweather\Marina Tower\Project Files · with subfolders · 412 filesDesktop Connector
Marina quay surveyD:\Site\Marina quay survey · top level only · 18 filesthis PC only
Contractor RFIsC:\Projects\Marina Tower\07 RFIs · with subfolders · pausedthis PC only
Tool noise is ignored out of the box: .rvt.0001, ~$…, .bak and the rest. Only the folders you add are watched. The change history is kept for one year, then the oldest entries are dropped.

Select & Find

IDsPaste element IDs: select them, or find what owns them.
Read-only

One box, three questions.

IDs
IDs
Paste element IDs: select them, or find what owns them.
Warning 1 of 3 — Highlighted elements are joined but do not intersect: 482913, 482914, 503771, 5112083 valid element(s) in this model · 1 candidate(s) didn't match anythingCopy selection idsUse current selectionPick in model…
SelectWho owns them?Delete impact
482913Walls · Party Wall 215mm
482914Walls · Blockwork 140mm
503771Floors · Ground Bearing Slab 300mm
3 element(s) selected.
IsolateZoomSelect 3Close
View LocatorFind which sheet hosts this view, and jump to any sheet.
Read-only

Instantly shows which sheet (number, name and detail number) hosts the active view — or, if the active view is a sheet, lists everything placed on it.

View Locator
View Locator
Find which sheet hosts this view, and jump to any sheet.
L01 — Ground Floor PlanPlaced on sheet A-102 — Ground floor plan (detail 1)Open sheetOpen all its views
GO TO SHEET
Type a sheet number or name…
A-101Site plan
A-102Ground floor plan
A-103First floor plan
A-201Sections A-A & B-B
A-301Stair core details
A-401Door schedule
12 sheet(s)Close
Find & ReplaceFind and replace text across the model, with a preview.
Modifies model

Revit can rename one thing at a time.

Find & Replace
Find & Replace
Find and replace text across the model, with a preview.
Nothing is written until you have seen the list. Every change lands in ONE transaction, so a single Ctrl+Z puts it all back.
FindHadley & RoeReplace withHadley Roe ArchitectsRegular expressionMatch caseWhole words onlyOnly where the text containsas regex
Where to look
Text notesEvery text note in the model, in every view.Text on dimensionsThe Above / Below / Prefix / Suffix fields — not the measurement.Sheet numbersMust stay unique — a clash is reported, not forced.Sheet namesThe title, not the number.View namesPlans, sections, 3D and drafting views. Templates and sheets excluded.Schedule namesSchedules and key schedules.Room namesPlaced and unplaced rooms alike.Room numbersMust stay unique within the model.
Preview the changes
9 values would change
ContextBeforeAfter
Text notes2
L01 — Floor PlanDrawn by Hadley & RoeDrawn by Hadley Roe Architects
L02 — Floor Plan© Hadley & Roe 2026© Hadley Roe Architects 2026
Sheet names3
Sheet A-101Hadley & Roe — Ground floorHadley Roe Architects — Ground floor
Sheet A-102Hadley & Roe — First floorHadley Roe Architects — First floor
Sheet A-140Hadley & Roe — Roof planHadley Roe Architects — Roof plan
Looked at 4,182 value(s). Untick any row you want left alone, then press Replace.CancelReplace
MeasurePick points and read the distance, the plan run and ΔX/ΔY/ΔZ.
Read-only
Only in the hub

A ruler that remembers.

Measure
Measure
Pick points and read the distance, the plan run and ΔX/ΔY/ΔZ.
4 points, 3 legs. Every number is in this project's units; “in plan” ignores the height difference.
Straight, first to last7187 mmTotal walked, leg by leg13200 mm
LegDistanceIn planΔXΔYΔZ
1 → 24200 mm4200 mm4200 mm0 mm0 mm
2 → 35100 mm5100 mm0 mm5100 mm0 mm
3 → 43900 mm3600 mm2400 mm-2683 mm1500 mm
Coordinates fromInternal originProject base pointSurvey point
PointXYZ
112000 mm8000 mm0 mm
216200 mm8000 mm0 mm
316200 mm13100 mm0 mm
418600 mm10417 mm1500 mm
Nothing was drawn and nothing was written — close and the model is exactly as it was.CopyClose

Tags & Notes

Along PathDimensions, tags, families and sections along a single run.
Modifies model

Fence a run once and choose any combination of outputs: an ordered dimension chain, by-category tags on everything crossing the corridor, spot elevations / coordinates plus room tags, family instances distributed every X mm (or N spread evenly), and perpendicular sections named in sequence.

Along Path
Along Path
Dimensions, tags, families and sections along a single run.
Fence a run once; every ticked pass lands in one transaction. Dimensions, tags and spots work in plans and in sections / elevations; families and sections need a level-based plan.
ALONG THE RUN
Dimensions, tags and spots that land on what the run crosses.
Find crossings
Shared scope for Dimension chain, Tags & Spots below.Grids / levelsWallsOpeningsColumnsSlab edgesOther familiesLinked (tags)
Dimension chain
TypeLinear - 3mm Arialoffset1500mm
Tags — one by-category tag per crossing element
LeaderSkip already taggedoffset0mm
Spots & room tags along the path
ElevationsCoordinatesRoom tagsevery5000mm along the pathelev. typeSpot Elevation — base = Project Base Pointcoord. typeSpot Coordinate — base = Survey Point
EVERY X MM
Spacing-based passes: they place at fixed steps along the run and ignore “what to find”.
Place family — point-based instances along the run
bollardSite Bollard : 900 mmEvery3000mmExactly10instances, ends includedRotate instances to follow the path
Sections — perpendicular cuts, named in sequence
every3000mmwidth6000mmheight3500mm above leveldepth1500mmnameSEC-{n}start at1Flip look direction
Pick mode
Corridor box — along the box's long axisTwo points — any angle (no preview)
CancelFence the run
TidyBatch-edit the tags in a view and line up its annotation.
Modifies model

One window, two tabs.

Tidy
Tidy
Batch-edit the tags in a view and line up its annotation.
TagsArrange
Batch surgery on existing tags
Active view. Counts include orphans — tags whose element is gone.
Tag categoryDoor Tags (48, 2 orphan)Swap all to tag type:M_Door Tag : 2.5mm Arial
Leaders
Leave as isAll ONAll OFF
Orphans — 2 found
IgnoreSelect themDelete them
Only tags in current selection (12)
CloseRun
Annotation Tidy Align, space and untangle the tags you picked.
Annotation Tidy
Annotation Tidy
Align, distribute or spread out the selected tags and text.
Tidy the 14 selected tags
Tag heads move; leaders keep pointing at their elements.
Align heads
LeftRightTopBottom
Distribute evenly (needs 3+)
HorizontallyVertically
Untangle
De-overlap — spread colliding tags apart vertically
Section / elevation
Align by level — line up each level's tags on one row
CancelTidy
Room DimensionsDimension chosen rooms automatically, one chain per axis.
Modifies model

Pick exactly which rooms to dimension (a room picker, like the sheet picker) and the aligned dimension TYPE to create, then Room Dimensions draws a dimension chain across each axis just outside each room.

Room Dimensions
Room Dimensions
Dimension chosen rooms automatically, one chain per axis.
One dimension chain per axis, placed just outside each room. Wall jogs smaller than the minimum are skipped — not dimensioned.
Rooms
Pick rooms…All 14 room(s)
Aligned dimension typeLinear - 3mm ArialMeasure fromWall centrelinesWall faces (clear)Minimum gap to dimension (mm)100Offset outside the room (mm)500Horizontal (width)Vertical (length)
CancelCreate dimensions

Views

Datum ToolsSet the heads and extents of grids, levels and section lines, with a live preview.
Modifies model

Three questions, one window, and a live preview of the active view so you SEE every head land before touching anything.

Datum Tools
Datum Tools
Set the heads and extents of grids, levels and section lines, with a live preview.
PresetPlans — heads top-leftSave as…Delete
1 · WHICH
Current selectionPick after Apply…All of a kindKindsGridsLevelsSections
2 · IN WHICH VIEWS
This viewAll sheetsSheets starting…Sheets I pick…Views I pick…
3 · WHAT EACH END SHOWS
Grid and level headsQuick fill…TopShowLeftShowRightHideBottomHideSection line endsTopHeadLeftRightBottomTailA side is each view's own: “Left” is that view's left. A side still in grey is left as it is.
4 · HOW LONG THE LINES ARE
Leave them as they areCopy this view's 2D extents to the other views in scopeFit 2D extents to each view's crop (never 3D)Reset dragged 2D extents back to the model (3D)Separate overlapping heads (auto elbow)Also stretch the 3D extents to cover the whole model
PREVIEW
Preview — “L01 — General Arrangement” as the worked example: the same cures land on every view you pick, each view translating Top/Left to ITS OWN screen.
heads + section heads and tails + copy 2D extents → all grids and all sections → the views you pick.CancelApply
Reset ViewUndo the graphic tricks on the active view — overrides, filters, hidden elements — shown first, then cleared in one undoable transaction.
TraceWhy can't I see this element here?
Category SwitchHide or show categories in every view and template at once.
Modifies model

Pick one or several categories or subcategories (e.g.

Category Switch
Category Switch
Hide or show categories in every view and template at once.
Ceilings
Doors
Frame/Mullion
Glass
Panel
Plan Swing
Floors
Furniture
Walls
HideShowin:View templatesViews without template
5 selectedCancelApply
Template DiffCompare two view templates and list every difference.
Read-only

Pick two view templates and get every difference listed and grouped: which parameters each one controls; core settings (scale, detail level, discipline, display style); per-category visibility plus the graphic overrides people actually chase — halftone, transparency, detail level and projection/cut line weights; and the filters each applies.

Template Diff
Template Diff
Compare two view templates and list every difference.
Template AAR — Working planTemplate BAR — Tender plan
15 differencesonly in Aonly in Bchanged
AspectAR — Working planAR — Tender plan
Controlled parameters4
Detail LevelControlled—
Phase FilterControlled—
V/G Overrides Filters—Controlled
View Range—Controlled
Core settings4
Scale1:501:100
Detail levelFineMedium
DisciplineArchitecturalCoordination
Display styleHidden LineShaded with edges
Category visibility & overrides5
Casework · proj. line weightby category4
CeilingsVisibleHidden
Furniture · halftoneoffon
Structural Framing · transparency0%50%
TopographyVisibleHidden
Filters2
AR — DemolishedApplied—
ME — Ducts hidden—Applied
Copy reportClose
NavigatorSession navigation (palette, bookmarks, workspaces, sheets), model intelligence (health, clashes, what changed) and the one-shot gestures — every entry assignable in Keyboard Shortcuts.
Free app

Jump to any view, sheet, schedule or bookmark across every open model. Fuzzy search, keyboard-first.

Navigator
l01 ga
L01 — GA PlanFloor Plan · Marina Tower — Block A
A-102 — First floor GASheet · Marina Tower — Block A
L01 — GA CeilingCeiling Plan · Marina Tower — Block A
Lift lobby — as issuedBookmark · L01 — GA Plan
Core — Section AASection · Marina Tower — Block A
Door scheduleSchedule · Marina Tower — Block B
Overall — 3D3D · Marina Tower — Block B
7 results↑↓ move · Enter open · Esc close
Find & Zoom… Zoom to elements by their id.
Find & Zoom
Find & Zoom
Paste element IDs, UniqueIds or IFC GlobalIds — commas, spaces or new lines. Zooms to them in the active model.
482913, 482917, 483004 1f0f2e6a-4a1e-42d0-9b1f-4c0d3e6b7a52-000759f3 3Vb7Gz1nD8xQZKqR2mLp0
Temporarily isolate themFind & zoom
Paste IDs above and press Find & zoom.
Sheets Every sheet in the model, searchable, one click to open.
Sheets
Sheets
24 sheets
A-100 — Site plan1 views
A-101 — Ground floor plan4 views
A-102 — First floor plan3 views
A-103 — Second floor plan3 views
A-200 — Elevations4 views
A-300 — Sections2 views
Close
Which views? Where this element is actually drawn — not where it could be.
Which views?
Cavity wall — 300mm
Really visible in 5 view(s) — honours V/G, filters, crop, worksets.
ViewIdTypeView templateOn sheetActions
L02 — Floor Plan1204Floor PlanARC — Plan 1:100A-103 Second floor planGo to
L02 — Reflected ceiling1207Ceiling PlanARC — RCP 1:100Go to
Section B-B — Plant1341SectionARC — Section 1:50A-300 SectionsGo to
East Elevation1362ElevationA-200 ElevationsGo to
{3D} Coordination14083DGo to
RefreshClose
Bookmarks… Manage your saved spots.
Bookmarks
Bookmarks
Save the current view's framing and jump back to it any time.
Save current view
Lobby — glazed screen3D · {3D} Coordination · 28/08/2026 09:41Open
Core stair — setting outFloor Plan · L02 — Floor Plan · 27/08/2026 16:08Open
Plant room — clash zoneSection · Section B-B — Plant · 27/08/2026 11:52Open
Roof terrace balustradeElevation · East Elevation · 26/08/2026 14:20Open
4 bookmarksClose
Workspaces Save what you have open; reopen it as a set.
Workspaces
Workspaces
Save the set of views and sheets you have open now, and reopen them together later.
Save open views
▾ Coordination — Thursday2 views · 1 sheet · 28/08/2026 09:41Open
(this model)
▫ L02 — Floor PlanFloor Plan
▫ Section B-B — PlantSection
▣ A-103 Second floor planSheet
▸ Setting out — core3 views · 27/08/2026 16:08Open
▸ Issue check — rev C6 sheets · 26/08/2026 14:20Open
Close
Reopen session The prompt on opening a model you left mid-task.
Reopen session
Reopen last session?
“Marina Tower — Block A” has a saved session with 7 views. Reopen them?
Not nowReopen views
Section Box… Drive the 3D crop from buttons, not handles.
Section box
Drive the box without dragging handles
Leave this open while you work — it stays out of the way and every button acts on the active 3D view.
Walk it, grid by grid
Sides move to the next GRID LINE, top and bottom to the next LEVEL. Directions are read from the view, so “north” is away from the camera however the model is turned.NWESUpDownUse grids and levels from links tooOn a real job the grid usually lives in the architectural link, so this is on by default. Linked datums are transformed into this model's coordinates.
Set it
Box the selectionReversible: with nothing selected it restores what was there before.Line up with a face…Turns the SHORT way: a face pointing the other way is the same alignment.Take the extent from a view…Pick a plan, section or elevation and the box becomes exactly what that drawing shows — its view range and crop.
Show and hide
Section box on / offUnlike Revit's own toggle, switching it OFF keeps the box — toggle again and it comes back exactly where it was, including any rotation.Hide the box outlineHides the box's own lines while the crop stays in force — a clean 3D shot of a cut model.
Open a 3D view and press a button.
Workset Colours Tint the active view by workset, reversibly.
Workset Colours
Colour by workset
Tinted by workset. Clear or Ctrl+Z reverts it.
ColorizeClear
ARC — Shell· 1284
ARC — Partitions· 968
ARC — Fit-out· 402
STR — Frame· 611
MEP — Ductwork· 297
Shared Levels and Grids· 46
Close
Clash Navigator… Open a Navisworks clash report.
Clash Navigator
Clash Navigator
Import a Navisworks clash report (XML) and click a clash to select and frame the two elements involved.
Import report…Isolate the pair
MEP vs Structure
Clash1new · (12.4, 38.1, 7.5)Reviewed
Clash2new · (14.9, 38.1, 7.5)Reviewed
Clash3reviewed · (21.0, 42.7, 7.6)Reviewed
Ducts vs Ceilings
Clash1active · (8.2, 15.6, 3.9)Reviewed
Clash2reviewed · (9.7, 15.6, 3.9)Reviewed
Clash3approved · (31.5, 20.4, 4.1)Reviewed
6 clashes · 2 testsClose
What changed?… Highlight what changed since a baseline.
BIMIO · What Changed — Since a baseline
What Changed
Highlight what changed in the model since a baseline.
What changed since…
Pick a reference point: a baseline you set, your last sync-to-central (captured automatically), any past sync, or this session. New = green, modified = amber; everything untouched fades to white and RVT links hide while the highlight is on.
Set baselinevs Baselinevs Last syncThis session
vs Sync…28/08/2026 09:14 · 412 element(s)
Show
412 Added87 Modified18 Deleted (counted, not shown)9214 Not changed (ghosted)
499 element(s) highlighted in the active view; the rest is faded to white and RVT links are hidden until you clear.
BY CATEGORY
Show
Walls46 added · 21 modifiedSelect✓
Doors18 added · 6 modifiedSelect✓
Windows12 added · 4 modifiedSelect✓
Ducts173 added · 29 modifiedSelect✓
Pipes98 added · 15 modifiedSelect✓
Structural Framing65 added · 12 modifiedSelect✓
Clear highlightExport CSVClose
Sync to model… Copy this 3D view into another open model.
Sync to model
Sync framing to another model
From the active 3D view, replicate the camera and section box into a 3D view of another open model. Pick the target:
Marina Tower — Structure
Marina Tower — MEP
Marina Tower — Facade
Marina Tower — Site
Close
Model health Three tabs on what is wrong or wasteful in this model.
Model health
Warnings
Grouped by type, most consequential first. Click a warning to select and zoom to the elements involved. Navigator triages — Revit warnings can't be resolved through the API.
WarningsViewsPurge
Filter warnings…Select allSelect noneIsolate on jumpRefresh
There are identical instances in the same place — this will result in double counting.128 elemHigh
Walls overlap. One of them may be ignored when Revit finds room boundaries.64 elem · Last changed by J. Ellery, M. DoyleHigh
Elements have duplicate 'Type Mark' values.31 elemHigh
Room is not in a properly enclosed region.22 elemMedium
Room Tag is outside of its Room.14 elemMedium
The element is slightly off axis and may cause inaccuracies.9 elemMedium
Highlighted elements are joined but do not intersect.6 elemLow
7 types · 274 warnings · 3 tickedWho? (all shown)Select in RevitClose

Sheets & Sets

TitlesLine up viewport titles and edit title blocks across sheets.
Modifies model

Two tabs, one window.

Titles
Titles
Line up viewport titles and edit title blocks across sheets.
AlignTitle blocks
Bottom-left of each viewport, a fixed gap below it. Applies in one transaction.
PresetTender setSave as…Delete
1 · WHICH SHEETS
Current sheet onlyAll sheetsSheets I pick…Pick sheets…
2 · WHERE THE TITLE SITS
Align position — bottom-left, gap belowGap below the viewport:5mm (paper)Level titles of viewports on the same rowRow tolerance:50mm band → drop to lowest
3 · ITS LINE AND ITS TYPE
Set title line lengthMatch viewport widthMatch title textFixed:80mmSet viewport type:Title w/ Line
4 · WHAT IT SAYS
Title text rules (Title on Sheet)Set from view nameUPPERCASEStrip prefix:WIP_Replace:Level→Floor
CloseAlign titles
ViewportsSync viewport positions and swap their views across sheets.
Modifies model

Work on the viewports of many sheets from one window.

Viewports
Viewports
Sync viewport positions and swap their views across sheets.
Position syncSwap views
Sync viewport positions across sheets
Every chosen viewport lands where the reference sits — relative to its title block, so it falls in the same spot on the page.
Reference
Pick reference sheets…Pick reference view…3 sheets · reference view: Ground Floor Plan (A-101)
Destinations
Pick destination sheets…4 sheet(s), 9 viewport(s)
A-102 First floor plan
1 · First Floor Plan
2 · First Floor — Colour Scheme
A-103 Second floor plan
1 · Second Floor Plan
A-104 Roof plan
1 · Roof Plan
Alignment basis
Relative to title block (recommended)Absolute sheet coordinatesBy model coordinates — the same point of the building lands on the same spot of every sheetIgnore annotation when aligning (use the crop rectangle)
Title blocks: 3/4 destination sheets land aligned to the reference (75%). 1 without a title block.Details…
4 viewport(s) to alignCancelAlign viewports
CheckRun the pre-issue checks on a sheet set: GO or NO-GO.
Read-only

The last gesture before you print: pick the package — a print set, sheet collection or filter — and every cheap, read-only pre-issue check runs in one pass.

Check
Check
Run the pre-issue checks on a sheet set: GO or NO-GO.
!
NO-GO — 4 blocker(s), 7 warning(s) across 7 sheet(s).
AllBlockersWarningsPassed
KindFindingWhereActions
Viewport titles4collisions, off-sheet drift, gap/length deviations, dishonest custom scales
OVERLAP“Ground Floor — General Arrangement” title collides with viewport of “Ground Floor — Setting Out”A-101Show
LENGTH“First Floor — General Arrangement” line 182.0 mmA-102 · viewport width 210.0 mmShow
GAP“Section A-A” gap 3.2 mmA-104 · standard 5 mm (±1.5)Show
SCALE“Roof Plan” scale text ‘1:50’A-105 · view is 1:100Show
Set integrity4references leaving the package, temp view modes, missing templates, empty sheets
TEMP MODE“Site Plan” is in Temporary Hide/Isolate — hidden elements will NOT printA-100Show
NO TEMPLATE“Ground Floor — General Arrangement” has no view template — graphics are unguardedA-101Show
callout“Stair Core — Section” points to “Detail 04 — Balustrade Fixing”A-103 · NOT ON ANY SHEETShow
EMPTY SHEETNo views and no schedules placedA-106Show
Revisions3every sheet should carry the latest revision (seq 3 “Tender issue”)
NO REV“A-104 — Sections” does not carry the latest revisionlatest is seq 3 “Tender issue”Show
NO REV“A-106 — Door Schedule” does not carry the latest revisionlatest is seq 3 “Tender issue”Show
LEGEND CLOUDA revision cloud sits on the legend “Drawing Notes”a cloud on a legend does NOT put the revision on the sheet the legend is placed onShow
Export HTMLCopy reportClose
Sheet GraphicsScale bars, key plans and QR codes on sheets, in one pass.
Modifies model

Every sheet overlay in one window: coordinate grid rulers, graphic scale bars, the section-locator mini plan, the cover mosaic, real-view key plans, per-sheet QR codes and automatic match lines.

Sheet Graphics
Sheet Graphics
Scale bars, key plans and QR codes on sheets, in one pass.
Sheets:
Current sheet onlyAll sheetsSpecific sheets:Pick sheets…
Coordinate rulers at the edges
Visible grids project to ticks + names beside each sheet's main plan viewport.Bottom (vertical grids)Left (horizontal grids)Offset from viewport:4mmRotated viewports are skipped and reported — the projection would misplace every tick.
CancelRun selected
Batch RevisionAssign or remove a revision across many sheets at once.
Modifies model

Close the issue in one gesture: pick the sheets (active sheet or any set, including real print sets), pick the revision — or stage a new one, created inside the same Apply transaction — and assign it to or remove it from every ticked sheet at once.

Batch Revision
Batch Revision
Assign or remove a revision across many sheets at once.
Pick the sheets, pick (or stage) the revision, choose Assign or Remove and Apply — one transaction, one undo. Grey chips are cloud-driven: those revisions come from revision clouds and can only be removed by editing the cloud.
Use active sheet (A-102)Pick sheets…6 sheet(s) in scope — 4 ticked
NumberNameRevisions
A-101Ground Floor PlanSeq 2 · Tender issue
A-102First Floor PlanSeq 2 · Tender issue
A-103Second Floor Plan—
A-201Elevations — North & EastSeq 1 · Planning · cloud
A-202Elevations — South & WestSeq 1 · Planning · cloud Seq 2 · Tender issue
A-301Sections A-A & B-BSeq 2 · Tender issue
Revision:Seq 3 — 12/09/2026 — Issued for ConstructionNew revision…Assign to ticked sheetsRemove from ticked sheetsAlso delete its revision clouds — on the ticked sheets and in the views placed on them
Ready — 4 sheet(s) ticked.CloseApply
Select sheets The sheet picker every tool that works on sheets shares — with presets.
Select sheets
Choose the sheets to work on
Pick a set, a collection, or filter — then fine-tune individual sheets. Every level has its own checkbox.
SourceAll sheetsFilterA-1ParameterSheet Issue Date(any)Select all (filtered)Ticked onlyPresets ▾
3 of 4 selectedCancelUse selected sheets

Model

CleanCount the model's junk first, then sweep it in one undo.
Modifies model

Shows the count of each junk family BEFORE touching anything: views, legends and schedules placed on no sheet, unplaced rooms, view templates nobody uses, filters applied nowhere, links not placed or whose file is missing, and the same unused families/types list as Revit's native Purge Unused.

Cleanup Actions
Clean
Count the model's junk first, then sweep it in one undo.
1,284 items found · 8 categories · heaviest: unused families & types (purge) (612)
Nothing is pre-selected. One transaction, one undo.
Select allExpand all🔍 Search anything…
Views on no sheet
FloorPlan: L01 — CoordinationFloorPlan: L02 — Working copySection: Stair core — checkThreeD: 3D — services clash
Legends on no sheet
Legend: Door types — supersededLegend: Hatching key — old paletteOnly legends placed on no sheet at all.
Schedules on no sheet
Schedule: Window schedule — workingSchedule: Area check — scratchKey, revision and keynote schedules are never offered.
Unplaced rooms
0.14 — Store1.07 — Plant room
Unused view templates
Plan — Setting out (old)Section — Tender (superseded)Templates applied to no view — and not set as a default.
Unused filters
Phase — Demolition (unused)Fire rating — 60 min (unused)A filter used by ANY view template counts as used.
Links not placed, or whose file is missing
Survey-2019.rvt — not placedStructure-Block-B.ifc — file missingRevit and IFC links and point clouds. CAD is in DWG Manager.
Unused parameters
Project parameter: Cost code (legacy)Shared parameter: Tender refProject & shared parameters only. Nothing references them — and no element holds a value.
Unused families & types (purge)
Revit's own Purge Unused candidates.FAMILIESDoorsM_Single-FlushWhole family — removes its 4 type(s)M_Double-Flush1810 x 2134mmGROUPSGroupsMATERIALS & ASSETSMaterialsAppearance assetsPhysical & thermal assets
Broken tags
Scanned on demand — pick the scope.Finds tags whose element is gone, room/area/space tags with nothing to tag, and keynote tags with no key. It reads every tag in the scope, so you choose where to look:Active viewScan sheets…Pick views…
342 element(s) selected for deletionCancelSweep selected
Orphan Tags — where to look The scope question, asked before any scan.
Orphan Tags
Where should I look?
Pick sheets…Pick views…Active view
Cancel
WarningsEvery warning in the model on its own row, to go and fix it.
Read-onlyExports file

Every warning Revit keeps in the model, one row each, as in Review Warnings — but in a window that stays open while you work.

Warnings
Warnings
Every warning in the model on its own row, to go and fix it.
Marina Tower — Block A — 214 warning(s) on 391 element(s).
All (214)Walls (96)Rooms (41)Floors (28)Other (49)Refresh
WarningElementsCategoryLast changed byElement idsActions
Highlighted walls overlap. One of them may be ignored when Revit finds room boundaries.2Wallsa.rivera1048211, 1048236Go to
Room is not in a properly enclosed region1Roomsm.chen1051730Go to
Elements have duplicate 'Mark' values.3Doorsa.rivera1052004, 1052011, 1052019Go to
There are identical instances in the same place. This will result in double counting in schedules.2Furniturej.okafor1060412, 1060413Go to
Highlighted floors overlap.2Floorsm.chen1048302, 1048355Go to
214 of 214 warning(s) shown · 391 element(s). With no row selected, the buttons act on every row shown.Copy idsExport to Excel…Show in modelSelect in model
RenumberNumber elements, rooms or sheet viewports, with a preview.
Modifies modelNeeds selection

One numbering tool for everything.

Renumber
Renumber
Number elements, rooms or sheet viewports, with a preview.
Choose which families/types to number, build the name pattern, then click the elements in order — or let a path / their position order them. You preview before anything is written.
Elements — families, rooms & spacesSheets · detail numbers
Doors (48)
M_Double-Flush · 1810 x 2134mm (8)
M_Single-Flush · 0826 x 2040mm (14)
M_Single-Flush · 0915 x 2134mm (26)
Rooms (57)
Windows (32)
Write into:MarkFormatNumbers (1, 2, 3)Name pattern:{Level}-D{n}+ numberLevel+ parameterStart1Step1Digits2Restart on prefix changeOnly fill empty valuesContinue from the highest existing number
Order
By click order — pick the elements one by oneBy position — rows top→bottom, left→right (view)Along a path — pick a line (or several)Along a path — click a route (Esc to finish)Row band300mmSerpentineReverse direction
2 type(s) selectedCancelNext
Review before writing Nothing is written until this window says yes.
Renumber — Preview
Review before writing
4 to write into “Mark” · 2 skipped · 1 duplicated in batch · 1 clash with existing
Elementold → newstatus
M_Single-Flush · 0926 x 2040mm #1284531D-04 → D-01OK
M_Single-Flush · 0926 x 2040mm #1284604— → D-02OK
M_Double-Flush · 1526 x 2040mm #1284712D-02 → D-03DUP
M_Single-Flush · 0826 x 2040mm #1284788D-09 → D-04CLASH
M_Sliding-2 Panel · 1800mm #1284801D-11 → D-05HAS VALUE
M_Sliding-2 Panel · 1800mm #1284846— → D-06LOCKED
CancelApply
WorksetsTake ownership, ask who holds the rest and assign worksets.
Modifies model

Everything ownership in one window, four tabs.

Worksets
Worksets
Take ownership, ask who holds the rest and assign worksets.
Take ownership of worksets, model-group definitions and design options in one gesture. While you own them, other users cannot edit those elements without asking you. Click a column header to sort. Save the ticks as a named set that lives in the model — and optionally re-take it automatically after every synchronise.
WorksetsModel GroupsDesign OptionsAsk to syncAssign
Saved sets:Handover — my worksetsApplyDeleteHandover — my worksetsSave ticksRe-take the selected set automatically after every synchroniseNot armed. Tick to re-take this set after every sync.
Select allSelect none
NameKindEditableOwnerOpened
ARC-External wallsUser-CreatedYesjsmithYes
ARC-PartitionsUser-CreatedYesjsmithYes
ARC-CeilingsUser-CreatedNoYes
MEP-DuctworkUser-CreatedNor.okonjoYes
STR-FrameUser-CreatedNoh.whitfieldNo
Shared Levels and GridsUser-CreatedNoYes
Project InfoProject StandardNoYes
Show:
User-CreatedProject StandardsFamiliesViews
Ask the holders…2 workset(s) tickedCancelTake Ownership
MatchMake elements match one you point at: type and parameters.
Modifies modelNeeds selection

Pick a source element, then the destinations: the current selection, clicked or box-selected in the model, whole categories, or a list for views and sheets.

Match
Match
Make elements match one you point at: type and parameters.
MatchCopy A → BSchedule style
PresetFire rating + finishesSave as…Delete
COPY FROM
Basic Wall — SW-215 Blockwork, paintedWallsPick in model…View / sheet…
COPY ONTO
Current selectionPick in modelBy categoryBy typeBy rulesViews and sheetsWalls, Curtain WallsActive view only48 selected · 44 can receive · 4 owned by someone else · 6 in groupsSelect the ones that cannot take them
Tick all safeClear
Safe to copy
CommentsPainted both sidesMarkSW-215Fire Rating60/60Acoustic RatingRw 52 dBStructural UsageNon-bearing
Copy with care
Base ConstraintLevel 00Unconnected Height3200Room BoundingYesPhase CreatedNew Construction
Not copyable
Area — 48.7 m²Volume — 10.47 m³Length — 15 220
Also match the family typeOnly fill empty
44 change type · 5 properties × 44 = 220 write(s)PreviewApply
DWG ManagerEvery imported and linked CAD: reload, relink or delete it.
Modifies modelExports file

The full inventory of CAD in the model — imported (embedded) and linked (external) — in one window.

DWG Manager
DWG Manager
Every imported and linked CAD: reload, relink or delete it.
6 CAD file(s) · 14 instance(s)
4 linked · 2 imported · ⚠ 1 missing file(s) · 1 orphan / purgeable
Search by name or path…LinkedImportedProblems only
Site-Survey-Existing.dwgP:\Marina Tower\CAD\Site-Survey-Existing.dwg — Model-wide (all views) · Workset: ARC-Site · 42 layer(s) · 1.8 MB, 2026-07-14Linked
Block-A-Setting-Out.dwgP:\Marina Tower\CAD\Block-A-Setting-Out.dwg — 3× view-specific: L00 — Floor Plan, L01 — Floor Plan, L02 — Floor Plan · Workset: ARC-Setting Out · 18 layer(s) · 640.2 KB, 2026-08-02Linked
Landscape-Proposals.dwg⚠ missing: P:\Marina Tower\CAD\Landscape\Landscape-Proposals.dwg — Model-wide (all views) · Workset: ARC-External Works · 9 layer(s)Missing file
Old-Survey-2019.dwgNot placed — orphan type, safe to purgePurgeable
Door-Schedule-Legend.dxf2× view-specific: A-401 — Door schedule, A-402 — Ironmongery · Workset: ARC-Annotation · 6 layer(s) · 2 pinnedImported
Go toSelectIsolateLayer graphics…PinCopy pathOpen folderOpen in CADRefreshDelete
Layers & instances
Layers (6): 0, A-WALL, A-DOOR, A-GLAZ, A-ANNO-TEXT, DEFPOINTSModel-wide (all views)View: L00 — Floor Plan · pinnedGoSelectDelete
Showing 6 of 6 CAD file(s).CloseReload allPurge orphansExport…Delete ticked
Copy layer graphics One view's CAD layer look, pushed to the rest.
Copy layer graphics
Copy the layer graphics of SITE-SURVEY-2024.dwg
38 layers. Pick the view that already looks right, then where it should be copied.
1 · COPY FROM
L00 — Ground floor plan12 layer(s) hidden · 6 with line or halftone overrides.
2 · WHAT TO COPY
Visibility — which layers are switched offLines — colour, weight and patternHalftoneThe drawing's own row (governs every layer at once)Cut and surface patterns, transparency and detail level are not copied — Revit's Imported Categories tab does not expose them for a CAD layer.
3 · COPY TO
Pick views and templates…Clear
L01 — First floor plan
L02 — Second floor plan
ARC — Plan 1:100 (view template)
L00 — Reflected ceiling — locked by “ARC — RCP 1:100”
Site plan — owned by A. Ruiz, will be skipped
1 chosen view is governed by a view template that controls imported graphics. Writing on them changes nothing on screen, so they are skipped.
Add that template to the list
visibility + lines → 3 target(s) (1 skipped by template, 1 owned by others).CancelApply
Group AuditFind the instances of a group that no longer match the rest.
Modifies modelExports file

Revit gives you no way to know whether the 40 identical flats, the 200 hotel rooms or the 30 “same” plant rooms are still the same.

Group Audit
Group Audit
Find the instances of a group that no longer match the rest.
Marina Tower — Block A — 6 group type(s), 43 instance(s). 2 group type(s) have drifted apart, across 5 instance(s).
INSTANCES — 9/12 IDENTICAL; 3 DIVERGENT (2 WITH MISSING MEMBERS, 1 WITH FOREIGN ELEMENTS, 1 WITH DIFFERING PARAMETERS).
InstanceWhereVerdictMissingExtraGot inParamsHostsMirroredNotes
482116Level 01 · Bedroom 04divergent21excluded members (Revit)
482350Level 02 · Bedroom 12divergent3
482233Level 01 · Bedroom 05divergent1
482467Level 02 · Bedroom 13identical
482584Level 03 · Bedroom 20identical
WHAT DIFFERS
MemberDetailThis instanceThe others
missing members2
Doors · Single-Leaf 926 × 2040Not present in this instance.absent1 in 11/12 instances
Lighting Fixtures · Downlight 120 mmNot present in this instance.absent1 in 10/12 instances
differing parameters1
Doors · Single-Leaf 926 × 2040Fire Rating reads 30/30 here and 60/60 in 11 of 12 instances.differs60/60 in 11/12 instances
9/12 identical; 3 divergent (2 with missing members, 1 with foreign elements, 1 with differing parameters).What is not compared…Export report…RefreshAlign selected…Show
Make PatternCreate fill patterns from presets, lines or a .PAT file.
Modifies modelExports file

Revit can only import fill patterns, never draw them.

Make Pattern
Make Pattern
Create fill patterns from presets, lines or a .PAT file.
A fill pattern is a TILE that repeats. Start from a preset and tune three numbers, or draw one tile yourself and pick the lines.
PresetDrawn lines.PAT fileIn this model
The tile is one brick wide and TWO courses tall — two, because it takes two courses before the joints line up again. That is the whole idea of a tile: the smallest rectangle that repeats. Tile 215 × 150 mm · 4 lines
Brick length215mmCourse height75mmCourse offset50%
3 grids
Every line kept its exact angle
NameBIMIO Brick bondTargetModelDraftingScale1Rotate (°)0Mirror across UMirror across VAlso make a filled-region typeAlso export a .PAT
How patterns workCancelCreate
How fill patterns work The primer behind the tool, in the tool.
How fill patterns work
A fill pattern is one tile, repeated
Everything else follows from that — including why some angles cannot be drawn exactly.
1 · Draw one tile
Draw a RECTANGLE for the repeat, and inside it the lines you want. Revit then tiles that rectangle edge to edge, for ever. So you never draw the whole hatch — only the smallest piece that repeats.
2 · Why some angles get bent
Revit does not store your lines. It stores, per direction, a lattice: a start point, an angle, the gap to the next line and the dash run. A direction only works if it lands back exactly on the tile's own grid after a whole number of tiles. A line that does not is snapped to the nearest one that does — that is the “angle correction” the window reports.Left: the line reaches a tile corner, so it repeats — exact. Right: it lands mid-edge and never closes, so it gets snapped.
You do not have to accept a bent angle
The maths runs backwards: for ANY angle there is a tile that makes it exact. The Diagonal hatch and Cross hatch presets do that calculation for you, so 30° comes out as 30.000° and not 26.57°. When the window has to bend a drawn line it also prints the tile size that would not have.
3 · Model or drafting?
MODEL patterns are measured in real units and scale with the view — brickwork stays 215 mm whether you are at 1:20 or 1:200, so it looks finer as you zoom out. DRAFTING patterns are measured on paper and never change on the sheet — hatching stays the same density at every scale. Pick by which one is true of the thing you are drawing.
4 · What cannot be done, honestly
Straight lines only. An arc or a spline has no single direction, so it cannot be a lattice — arcs in your selection are counted and skipped rather than quietly turned into a fan of little segments. A fill pattern also carries no line weights or colours: those come from wherever it is used (a filled region type, a material, a view filter). And the format has size limits, so a tile far bigger or smaller than the drawing it will sit in may be refused.
5 · Re-running is editing
Create with a name that already exists and that pattern is UPDATED, not duplicated — so tuning a preset and pressing Create again refines the same pattern, and everything already using it follows. Model and drafting patterns may share a name; only the matching one is touched.
Got it

Draft

RecastFloors and toposolids: convert, merge, heights, subdivide.
Modifies model

Four ways to work with the floors and toposolids you pick.

Recast
Recast
Floors and toposolids: convert, merge, heights, subdivide.
3 floors
Convert eachMerge into oneTake heightsSubdivide
Target typeTopsoil 300 · 300 mm variable layer
Show in modelAdd from model…
ElementLevelHeight offsetShape pointsVerdict
Concrete 250 · Floor · 1048211Level 000 mm86 · 2 split linesReady — 86 points, same outline, level and offsetShow
Concrete 250 · Floor · 1048236Level 00-150 mmFlatReady — Flat, same outline, level and offsetShow
Paving 120 · Floor · 1048302Level 000 mm112Too deep — its lowest point is 420 mm below level + offsetShow
Delete the originalsOff: the originals are kept, overlapping the new elements exactly.
2 will run · 1 skippedCancelRecast
Hide in ViewsHide or unhide the elements in hand in the views you pick, or in the views of the sheets you pick.
Modifies modelNeeds selection

Start from one element or many, then say where: tick views in the suite's view picker, or pick sheets — which here means the views placed on them.

Hide in Views
Hide in Views
Hide or unhide the elements in hand in the views you pick, or in the views of the sheets you pick.
THESE ELEMENTS
9 element(s)Furniture 6 · Generic Models 33 of them live in a linked model. For those Revit's own Hide in View is used: this window closes and each chosen view is opened for a moment, one after another.
IN THESE VIEWS
Pick views…4 view(s) picked.Pick sheets…6 view(s) on 2 sheet(s).9 view(s) in all — each one once.
UnhideHideClose
Select views The suite's view picker — with presets kept in the model or on this computer.
Select views
Views to hide or unhide in
Every view that draws elements — on a sheet or not. Tick as many as you need.
Active viewAlways uses whatever view is open at the timePresets ▾Search views…
ViewType
L01 — General ArrangementFloor Plan
L02 — General ArrangementFloor Plan
L03 — General ArrangementFloor Plan
Section A-ASection
L01 — Furniture layoutFloor Plan
3D — Coordination3D View
CancelDone
Referenced ElementsFrom tags, dimensions and spot elevations to the elements they point at.
Read-onlyNeeds selection

Start from annotations — tags of any category, room, area and space tags, dimensions, spot elevations, coordinates and slopes — and it gathers every element they refer to.

Referenced Elements
Referenced Elements
From tags, dimensions and spot elevations to the elements they point at.
FROM THESE ANNOTATIONS
23 annotation(s)Door Tags 12 · Dimensions 8 · Spot Elevations 3
TO THE ELEMENTS THEY REFER TO
31 element(s)Walls 14 · Doors 12 · Grids 4 · Floors 1
Isolate with annotationsSelect in modelClose
Merge StylesReplace one style with another everywhere it is used.
Modifies model

Line styles, line patterns, filled region types, fill patterns, dimension types and text types, each listed with how many places use it and with the others that are the same style under another name.

Merge Styles
Merge Styles
Replace one style with another everywhere it is used.
Line stylesLine patternsFilled regionsFill patternsDimensionsText
Uses are the detail and model lines drawn in each style. Lines inside a group are counted and left as they are, and so is anything inside a family.
Search styles by namePair the twinsClear choices
StyleWhat it isUsesSame asReplace with
A-Thin dashedW1 · RGB 0,0,0 · Dash1,204Dashed thinKeep
Dashed thinW1 · RGB 0,0,0 · Dash37A-Thin dashedA-Thin dashed
Setting-out redW2 · RGB 255,0,0 · Solid412Keep
Red line (old)W2 · RGB 230,0,0 · Solid9Setting-out red
Hidden lines 2W1 · RGB 0,0,0 · Hidden0Keep
Delete the replaced styles that end with nothing using themKeep this window open for another pass
2 replacement(s) set, 2 of them in this kind, over 46 place(s). Preview counts exactly what would change.ClosePreview changes…
WallsRe-level walls in place, copy constraints and set end joins.
Modifies modelNeeds selection

Three wall gestures Revit makes hard.

Walls
Walls
Re-level walls in place, copy constraints and set end joins.
Put a wall on another level without moving it — and be told if any wall moved.
Re-levelMatch a donorJoins
Swap the datum, leave the wall exactly where it is.
Revit has no equivalent: changing Base Constraint in the Properties palette always moves the wall. Here the absolute elevation is the invariant — the offset is recomputed against the new level so the geometry does not budge, and every wall is re-measured afterwards.
Base constraintGround floor (0 mm)Top constraintFirst floor (3600 mm)
Unpin pinned elements first — and leave them unpinnedOff: pinned walls are reported as skipped. On: they are unpinned, counted in the report, and NOT pinned again — silently restoring the pin would be a second lie.
Next: pick the walls to re-level.CancelPick walls…
Replace MaterialsSwap one material for another in the model, layers included.
Modifies model

Pick the categories to sweep, scan them to see which materials are really in use, then replace one material with another in a single transaction: material parameters on instances and on types, and the layers of wall, floor, roof and ceiling types.

Replace Materials
Replace Materials
Swap one material for another in the model, layers included.
Material parameters on instances and types, and the layers of wall, floor, roof and ceiling types. Painted faces and geometry inside in-place families are NOT touched.
1 · WHERE TO LOOK
Every model category is ticked — untick to sweep less and scan faster.
Walls
Floors
Roofs
Ceilings
Doors
Windows
Structural Framing
Generic Models
Select allSelect none
Scan the ticked categories
2 · FIND THIS MATERIAL
Only materials the scan actually found are listed, with how many references each holds.
Brickwork — Facing, Buff412
Blockwork — Dense, 100268
Plaster — Skim Coat191
Timber — Oak, Stained64
Insulation — Rigid PIR38
Render — Through-colour, Grey12
Also list materials the scan did not find
3 · REPLACE IT WITH
Every material of the project, used or not.
<By Category>
Brickwork — Facing, Red Stock
Blockwork — Dense, 100
Concrete — Cast In Situ
Glazing — Clear, Double
Plaster — Skim Coat
Timber — Oak, Stained
<By Category> on this side strips the material back to the category default.
Keep this window open for another pass
Scanned 12,480 element(s) - 34 material(s) in use.ClosePreview changes…
Region ToolsMerge, split and restyle filled regions in the active view.
Modifies modelNeeds selection

Union two or more filled regions into one, cut them with straight lines or with another region, or move their boundaries onto a different line style — the merge Revit never shipped.

Region Tools
Region Tools
Merge, split and restyle filled regions in the active view.
18 filled region(s) in «L01 — Floor Plan». Everything happens in that view, in one transaction.
Merge, split and restyle filled regions
Merge regionsPick two or more regions; they come back as one. The result keeps the type, the boundary line style and the instance parameters of the FIRST region you pick. Regions that do not touch stay as separate pieces — none is thrown away.Split with a linePick the regions, then pick one or more straight lines. Every piece the cut produces is kept. A line that does not reach right across a region leaves that region untouched and says so.Split with a regionPick the regions to cut, then pick the region that cuts them. The cutter is a stencil: it stays exactly as it is. A region entirely inside the cutter is left alone — a split with nothing left over would be a delete, and this tool does not delete.Change the border line stylePick the regions and choose a style. The list is the one Revit itself declares legal for a filled region in this project — nothing else can be offered.Thin Lines
Revit has no 2D boolean, so every shape here is rebuilt through the 3D kernel. Boundaries come back with an extra vertex wherever two originals met, and the rebuilt region is a NEW element with a new id.
Next: pick the regions to merge and press Finish. Anything already selected is used as-is.CancelContinue
Attached Detail GroupsReveal, rename and duplicate attached detail groups in bulk.
Modifies model

Revit only reveals an attached detail group one model group instance and one view at a time, through a dialog, so on a unit-plan job the annotation never gets turned on.

Attached Detail Groups
Attached Detail Groups
Reveal, rename and duplicate attached detail groups in bulk.
Show in viewsRename typesDuplicate types
2 · Model group types
Unit A — 2 bed12 instance(s) · 3 attached detail group(s)
Unit B — 1 bed8 instance(s) · 2 attached detail group(s)
Core — Stair and lift4 instance(s) · 1 attached detail group(s)
Balcony — Type 26 instance(s) · 0 attached detail group(s)
3 · Attached detail groups to reveal
Unit A — Kitchen dimensionson: Unit A — 2 bed
Unit A — Door tagson: Unit A — 2 bed
Unit A — Ceiling noteson: Unit A — 2 bed
Unit B — Kitchen dimensionson: Unit B — 1 bed
Core — Stair setting outon: Core — Stair and lift
Match the attached group to the view by a token in the view name
With this on, each view only gets the ticked attached groups whose own name contains the token pulled out of THAT view's name as a whole number or word (1 matches L1, not L10). The ticks above stay the candidate pool; the rule narrows them per view.Token pattern:\d+
3 view(s) · 4 model group type(s) · 3 attached detail group(s)CancelReveal

In the hub, but not free

The hub finds these too, because they started here. They are apps of the BIMIO tab now, each with its own button and its own licence.
Free means free

The whole tab, with any licence.

Everything on BIMIO Misc comes with any BIMIO licence — one app, a bundle or the suite — and with the trial: the toolbox, Lens, Atlas, Script, Synapse, Reset View, Trace, the Hub, Livery, Vigil, Sugar and Navigator. Buy one app and all of it comes with it, on every Revit you install. The apps that started here and moved to the BIMIO tab, such as Stencil, are sold on their own.

New to Revit: one purchase that arrives with a toolbox attached.
Free with any BIMIO licence
Miscsearch every Misc tool, see what it does and run it
free
Hubthe state of every BIMIO app for this project, in one place
free
Lensthe dockable inspector, with a card per app
free
Atlasa minimap of the view: see where you are and drag to move
free
Scriptrun Python, C# or VB.NET on the model from your library
free
Synapseconnect your AI once; every BIMIO tool gets smarter
free
Liveryeach model in its own colour, on every one of its tabs
free
Sugara joke, a quotation or a date in history, now and then
free
Vigilwhat has changed in the project's Windows folders
free
Reset Viewundo the graphic overrides and tricks on the active view
free
Tracefind out why an element is not showing in a view
free
Navigatorevery view, sheet and bookmark of the open models, from the keyboard
free
See the real output

This is an actual HTML report Misc exports — self-contained, works offline, shareable as one file. Scroll it right here, or open it full-screen.

Open full report

The toolbox comes with the first app you buy.

BIMIO Misc ships free with any BIMIO licence — the whole tab: the toolbox, Lens, Atlas, Script, Synapse, Reset View, Trace, the Hub, Livery and the rest. Revit 2024–2027, full trial, no card.

← PreviousStencil
