Clash detection, inside the model.

Navisworks-style interference checking without leaving Revit. Write clash rules by category — across the model and its links — run them, and every hit becomes a coloured sphere at the exact centre of the interference, carrying the full record inside the model itself. Clash remembers each clash's life — new, open, resolved, accepted — run after run, session after session.

Revit 2024–2027No Navisworks neededRules live inside the .rvtBCF 2.1 — out and back
FileArchitectureStructureInsertAnnotateViewManageAdd-InsModify
The BIMIO tab: the apps, each with its own licence.
Why Clash exists

Coordination happens in one tool. The fixing happens in another.

Export to a federated checker and the clashes live in a report while the elements live in Revit — two truths that drift apart between meetings. Clash keeps detection, decision and fix in the same file.

The round trip through another tool
  • Export the model, run the check somewhere else, import a report.
  • A clash is a row in a PDF; finding the actual duct is your problem.
  • Statuses live outside Revit and go stale the moment anyone models.
  • The subcontractor without the checker sees nothing at all.
The same afternoon, with Clash
  • Rules run where the elements are — model against links, in one click.
  • Every clash is a severity-coloured sphere at the exact spot, in every view.
  • Re-run and the fixed ones grey out; decisions survive even clearing the markers.
  • Spheres ride your normal sync — the whole team sees them in a plain Revit schedule, no BIMIO needed.
How Clash works · input → output

Write the rule book once. Walk the clashes every week.

Clash has two halves. The coordinator writes the rules — sides, links, phase, engine, severity policy — and they live inside the model. Then the whole team lives the results: spheres, the browser, decisions, refreshes, reports. Here is the loop, top to bottom.

Isolate:
INInput · the coordinator sets it
The rule bookBIM Coordinator, once per project
Category vs categoryModel & linksFast or Precise + clearanceSeverity thresholds
OUTOutput · the team lives it
✕Critical · deep penetration — a red sphere in the model
!Major / Minor · banded automatically by depth
✓Resolved · greys out on refresh — visible progress
–Ignored · accepted once, suppressed for good
41
open clashes on the burn-down — one report in three formats

Tap Input or Output to isolate a half — the other collapses.

INThe input · write the rule book, once

A rule is two sides, a phase, an engine and a policy.

The coordinator writes rules the way the project talks about them — ducts against structure, pipes against walls — and they save inside the .rvt, so the rule book opens with the model on every machine.

Who does this: BIM Coordinator

Owns the rule book. Writes it once; Graft can carry it to the next project.

Two sides, one rule

Walls against ducts. The model against its links.

A rule is two sides. Each side takes categories from the host model or from the links you tick — leave every link unticked and it clashes against all of them, transforms applied automatically. The two sides are deliberately different. The host side offers every category the model DEFINES, modelled yet or not — a rule is a template, so you must be able to aim at Data Devices before the first one exists. The link side offers only what that link actually models, because you cannot author against a link's empty categories and listing them would be noise. The comparison — model to model, model to link, link to link — follows from the sides themselves.

Who: the coordinator names the pairings
Edit clash rule
Edit clash rule
Rule name
Ducts vs Structure
CategoriesA: 2 cat(s) - host
Side A
Host modelLinks
Only selected
Ceilings
Floors
Roofs
Structural Columns
Structural Foundations
Structural Framing
Walls
Select allSelect none
Side B
Host modelLinks
Links to include
Search model name…
Leave all unticked to clash against every link.
Only selected
Duct Fittings
Ducts
Flex Ducts
Pipes
Select allSelect none
CancelSave rule
Phase-true, option-aware

No clashes from the model's history.

Scope a rule to a phase and a wall demolished in phase 1 stops clashing with the duct that replaced it — a clash that only ever existed in the model's history, never on site. Design options are just as honest: main model only, main plus primary, or everything — and two alternatives of one option set are never clashed against each other, because only one of them will ever be built.

New to Revit: an interference check that understands time and options — not just geometry.
Edit clash rule
Edit clash rule
Phase & optionsPhase: Phase 2 — New construction · main model + primary options
Phase
Phase 2 — New construction
Only elements that exist in this phase are tested - a wall demolished earlier no longer clashes with what replaced it. Links are matched by phase NAME; one that does not use the name is not filtered (the run log says so).
Design options
All optionsMain + primaryMain model only
Alternatives within one option set are never clashed against each other whatever you pick here - only one of them will ever be built.
CancelSave rule
Severity is policy

Set the thresholds; see the bands before you save.

Pick the engine — Fast compares bounding boxes for a near-instant sweep; Precise computes the true solid intersection, box-gated so it only pays for pairs that already touch — and add a clearance tolerance in millimetres to catch near-misses too. Then the policy: auto severity bands every hit by penetration depth, with a live preview of the bands as you tune the thresholds, or fix one severity for the whole rule. Either way any single clash can be re-banded by hand later, and a refresh respects it.

Who: the coordinator sets the thresholds
Edit clash rule
Edit clash rule
Engine & tolerance0
Detection mode
Fast (BBox)Precise
Clearance tolerance
0mm - 0 = hard clash only
SeverityAuto by penetration
Auto by penetrationFixed
Critical when penetration ≥
50mm
Major when penetration ≥
10mm
ClearanceMinor <10Major 10-50Critical >=50
Each clash is banded automatically; you can re-band any individual clash by hand later.
CancelSave rule
The rule book is written — now it runs, and every hit lands in the model itself.

Spheres, decisions, refreshes, reports: everything below is driven by the rules above.

OUTThe output · the team lives it

Run it, walk it, decide it — without leaving the model.

Every hit is a sphere in the model, every decision sticks, and every refresh keeps score. The reports go out in three formats; the answers come home through BCF.

Who lives this: the whole coordination team

Runs, walks the list, assigns and resolves — in Revit, on the real elements.

Run day

Run one rule, or the lot — with honest numbers.

Tick rules and Run selected; a progress dialog counts through with a Cancel that actually cancels, leaving the model untouched. The status line answers plainly — rules run, new, resolved, spheres in model — and when elements could not be examined at all, it says so, because “no clashes” and “we could not look at 43 of these” are different sentences.

New to Revit: an interference check that reports what it couldn't test, not just what it found.

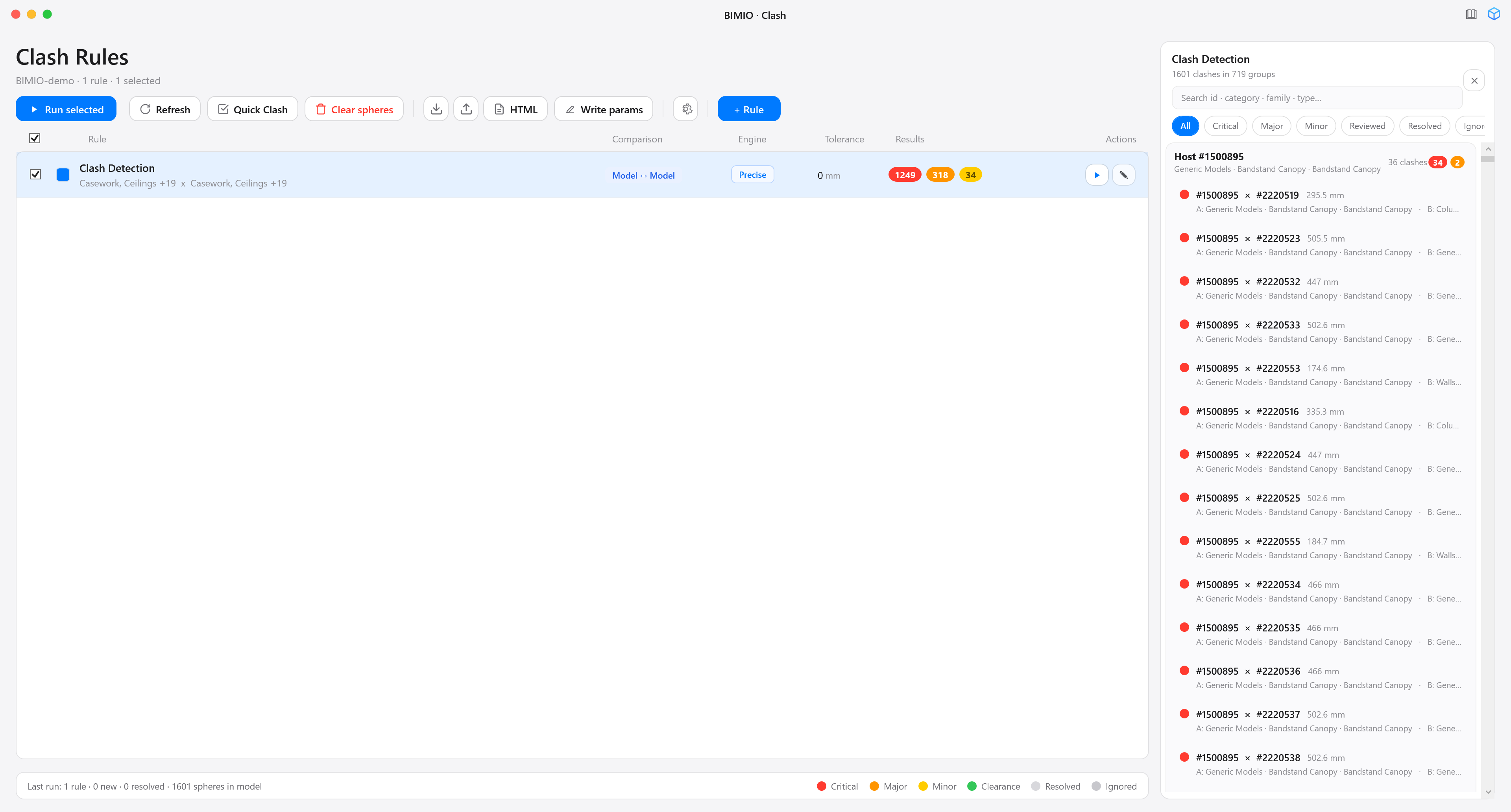

BIMIO · Clash — Interferences
Clash
Detect interferences between the model and its links.
New interface
Run selectedRefreshQuick ClashClear spheresWrite paramsImport…Export…RuleSettings
RuleRiverside Quarter — MEP · 3 rule(s) · 2 selectedComparisonEngineToleranceResultsActions
Ducts vs StructureStructural Framing, Structural Columns x Ducts, Duct Fittings
Model ↔ LinkPrecise0 mm41123· 12 resolvedRunEdit
Pipes vs WallsWalls x Pipes
Model ↔ LinkPrecise25 mm273RunEdit
Cable trays vs CeilingsCable Trays x Ceilings
Link ↔ LinkFast (BBox)0 mmnot run yetRunEdit
BROWSE
Last run: 2 rule(s) · 30 new · 12 resolved · 64 spheres in modelCriticalMajorMinorClearanceResolvedIgnored
The clash is a sphere

A red sphere at the exact spot — in every view.

Each clash becomes a sphere at the centre of the interference, coloured by severity with the colour baked into the geometry, so it reads in every view. It carries the full record inside the model, and a readable summary in its Comments — so a plain Generic Models schedule lists your clashes for anyone, no BIMIO installed. Spheres go to the workset you choose and ride your normal sync; Clash itself never synchronises anything.

New to Revit: clashes the whole team can see and schedule — in vanilla Revit.
CommentsBIMIO Clash | Critical | Active | A: Host #312045 | B: Link:MEP-Central #88711 | penetration 62.4 mm | rule 3f9c2a71b4de
The sphere’s Comments — readable in a plain Revit schedule, no add-in needed.
Walk the list

Open work first — grouped by the place you'll go to fix it.

The browser defaults to Open, so fixed clashes stop burying the live ones. Filter by severity or state, search by id, category, family or type, and step through with Previous and Next, or J and K. Group by side A, side B — or by place, because a coordinator schedules visits, not rows. In a 3D view every step is the gesture you would make by hand: the temporary isolate reset, a Selection Box round the clash's sphere, the sphere selected — and with Isolate on, each side keeps its element, or its whole link, beside it. Close the browser and every 3D view gets its own section box back. Connected an AI through Synapse? Triage routes each discipline pairing with a priority and an owner — read-only, aggregates only.

New to Revit: a clash list that answers “how many places do I have to go?”
BIMIO · Clash — Interferences
Ducts vs Structure
38 of 52 shown in 9 place(s)
Search id · category · family · type…
OpenAllCriticalMajorMinorReviewedResolvedIgnored
PreviousNextBy: placeFlattenIsolateAI triageImport BCF…Export report…
Ducts vs Structural Framing + 1 more≈ 37.2, 12.8, 9.6 m
12 clash(es)HighMechanical
264
#312045 × #8871162.4 mm
A: Structural Framing · Universal Beam · UB 305×165 · B: Ducts · Round Duct · Radius Elbows
#312058 × #8874018.2 mm
A: Structural Framing · Universal Beam · UB 305×165 · B: Duct Fittings · Round Elbow · Standard
#309912 × #888024.1 mm
A: Structural Framing · Universal Beam · UB 254×146 · B: Ducts · Oval Duct · Mitered Elbows
Ducts vs Structural Columns≈ 41.0, 12.6, 9.4 m
6 clash(es)HighStructural
132
Decide once

Review it, accept it, hand it to someone — and it sticks.

Re-band a clash with a click, mark it Reviewed, or Ignore a by-design overlap and it never comes back — the fingerprint is remembered. Highlight a batch and assign an owner, urgency, comment and due date into real Revit parameters, ready for schedules and Power BI. Decisions live in their own store inside the document — so even Clear spheres, which is housekeeping, no longer bins a coordination meeting's worth of judgement.

New to Revit: clash decisions that outlive the markers that carried them.
Assign 5 clash(es)
AssigneejsmithUrgencyHighCommentSleeve through beam webDue date2026-11-27
AI suggestSelect noneApply to selection
Ducts vs Structural Framing + 1 more≈ 37.2, 12.8, 9.6 m
12 clash(es)HighMechanical
264
#312045 × #8871162.4 mm
A: Structural Framing · Universal Beam · UB 305×165 · B: Ducts · Round Duct · Radius Elbows
ReviewIgnore
#312058 × #8874018.2 mm
A: Structural Framing · Universal Beam · UB 305×165 · B: Duct Fittings · Round Elbow · Standard
#309912 × #888024.1 mm
A: Structural Framing · Universal Beam · UB 254×146 · B: Ducts · Oval Duct · Mitered Elbows
The issues window

Rather work issue by issue? One button swaps the window.

New interface, at the top of the classic window, swaps it for a second window on the same rules, markers and decisions — organised by issues instead of by rules — and Clash remembers the choice until Classic interface brings the classic back. The rules sit in a table with each one's New, Active, Reviewed, Approved and Resolved counts, and are added, duplicated, renamed, edited, enabled or deleted right there. Below them the clashes become issues: one per place — clashes within 300 mm of each other — per element, per element of side A or B, or one per clash; sorted by priority, depth, level, age or nearness to your selection; filtered by level, model, category, status, assignee — or by what is selected in Revit.

New to Revit: a clash list filtered by what you have selected in Revit — linked elements included.
BIMIO · Clash — Interferences
Clash
Detect interferences between the model and its links.
Classic interface
Rules · 3RefreshNew rule…DuplicateRename…EditMore…DeleteRun allRun selected
NameSelection ASelection BTypeLast foundStatusClashesNewActiveReviewedApprovedResolved
Ducts vs StructureHost · Structural Framing, Structural ColumnsLinks (1) · Ducts, Duct FittingsPrecise · 0 mm12/11/2026 16:42Done5221143212
Pipes vs WallsHost · WallsLinks (1) · PipesPrecise · 25 mm12/11/2026 16:42Done1293000
Cable trays vs CeilingsAll links · Cable TraysAll links · CeilingsFast (BBox) · 0 mm—No results000000
Issues · 14 · from 52 clashesSearch
GroupEach clashPlaceElementElement in AElement in B
SortPrioritySelectionNo filter
FilterLevelModelsCategoriesStatusAssigned to
IssueClashesStatusAssigned toDeepestRule
Level 2 · Structural Framing × Ducts, Duct Fittings12NewUnassigned71 mmDucts vs Structure
Level 3 · Structural Framing × Ducts8Activejsmith48 mmDucts vs Structure
Level 2 · Structural Columns × Ducts6ActiveUnassigned132 mmDucts vs Structure
Level 3 · Structural Columns × Ducts4NewUnassigned9 mmDucts vs Structure
Level 1 · Structural Framing × Duct Fittings3ReviewedUnassigned58 mmDucts vs Structure
Level 1 · Structural Columns × Ducts3NewUnassigned22 mmDucts vs Structure
Level 2 · Structural Framing × Duct Fittings2Activejsmith15 mmDucts vs Structure
Level 3 · Structural Framing × Duct Fittings2NewUnassigned7 mmDucts vs Structure
Detail
Pick an issue to see both elements and what was decided.
Issues on screenReport…CSV…BCF…64 spheres in model · 50 activeClose
One key per issue

Look, press 2, 3 or 4 — and the next issue comes up.

Pick an issue and its detail opens beside the list: both sides' elements, busiest first, each with See all to gather every clash of that element into one issue; the clashes behind it, deepest first; a comment and an assignee for the whole issue or just the clashes you pick. Then decide with one key — 2 Active, 3 Reviewed, 4 Approved, which is the classic window's Ignored and survives a new run. The whole issue changes as one entry in Revit's undo list — “BIMIO Clash — Active: 12 clash(es)” — and with one issue picked, the next one comes up. Too many shallow ones? More… › Shallow… shows the undecided clashes of the selected rules by depth and sets aside everything under the limit you type as Approved, in one step you can undo.

New to Revit: a whole coordination issue decided with one key — and undone as one step.
BIMIO · Clash — Interferences
Detail
Level 2 · Structural Framing × Ducts, Duct Fittings
ShowIsolateSelect in modelCopy Ids
Comment
No comment yet.
A comment for these clashes
Set comment
Status
ActiveReviewedApproved
12 New
Assigned to
Assign
Clashes12
Deepest71 mm
LevelLevel 2
ModelsRiverside Quarter — MEP × MEP-Central
RuleDucts vs Structure
First found12/11/2026
Side A
Universal Beam · UB 305×165
Structural Framing · Id 312045 · Riverside Quarter — MEP
See all 9
Universal Beam · UB 305×165
Structural Framing · Id 312058 · Riverside Quarter — MEP
See all 5
Universal Beam · UB 254×146
Structural Framing · Id 309912 · Riverside Quarter — MEP
See all 3
Side B
Round Duct · Radius Elbows
Ducts · Id 88711 · MEP-Central
See all 6
Round Elbow · Standard
Duct Fittings · Id 88740 · MEP-Central
See all 3
Oval Duct · Mitered Elbows
Ducts · Id 88802 · MEP-Central
See all 2
Rectangular Duct · Radius Elbows
Ducts · Id 88815 · MEP-Central
See all 2
and 1 more
Its clashes · 12
Side ASide BDistanceStatusLevelFoundAssigned toCommentRule
Universal Beam · UB 305×165
Structural Framing · Id 312058See all 5
Rectangular Duct · Radius Elbows
Ducts · Id 88815See all 2
71 mmNewLevel 212/11/2026UnassignedDucts vs Structure
Universal Beam · UB 305×165
Structural Framing · Id 312045See all 9
Round Duct · Radius Elbows
Ducts · Id 88711See all 6
62 mmNewLevel 212/11/2026UnassignedDucts vs Structure
Universal Beam · UB 305×165
Structural Framing · Id 312045See all 9
Round Elbow · Standard
Duct Fittings · Id 88740See all 3
44 mmNewLevel 212/11/2026UnassignedDucts vs Structure
Universal Beam · UB 254×146
Structural Framing · Id 309912See all 3
Round Duct · Radius Elbows
Ducts · Id 88711See all 6
38 mmNewLevel 212/11/2026UnassignedDucts vs Structure
3 clash(es) marked Approved.Close
BIMIO · Clash — Interferences
Shallow clashes
The undecided clashes of the selected rules whose depth was measured. Those shallower than the limit are marked Approved in one step: one entry in Revit's undo list. Clearance rules are left out.
0–5 mm14
5–10 mm9
10–25 mm6
25–50 mm3
50–100 mm2
100–250 mm1
250 mm and more0
Shallower than
10mm
23 of 35 clashes are shallower than 10 mm. They will be marked Approved, in one step you can undo.
CancelApply
Refresh is the meeting

Fix the model; the spheres keep score.

After modelling, Refresh in the classic window re-runs and reconciles by fingerprint — in the issues window, Run all and Run selected do it, and Refresh there only re-reads the model. Gone clashes grey out and stay as visible progress, new ones arrive coloured, and survivors keep your manual severity and Reviewed flags. Re-running never duplicates a sphere. Every run adds a point to the burn-down the project carries inside the model — up to 400 runs of history.

New to Revit: a burn-down the model keeps for itself — progress you can show, not claim.
Run 13
Run 14
Riverside Quarter — MEP - clash report 2026-11-12 1642.html
Burn-down trend14 runs · latest 41 active
Active · 41New last run · 3Resolved total · 228
Out — and back

One report for people, one file for machines — and the answers come home.

Export report…, in the browser: one save, three formats — a self-contained HTML report written in the language of your BIMIO interface (severity donut, burn-down, discipline matrix, every clash in a filterable table, offline and dark-mode-aware), a CSV for Excel and Power BI, and BCF 2.1 with stable topic ids and a viewpoint per clash for BIMcollab, Solibri or Navisworks. Each file is offered under the model's name, the day and the time; the issues window adds a report by issues. And when the .bcfzip comes back weeks later, Import BCF… reads it, shows you exactly what would change — and what would not — and writes nothing until you agree.

New to Revit: a BCF round trip where the import shows its plan before touching anything.
Warning
!Import BCF
64 topic(s) read · 3 status change(s) · 57 already up to date · 3 not in this model · 1 with a status we do not use (OnHold)
· Active → Resolved Ducts vs Structure: Structural Framing vs Ducts
· New → Reviewed Ducts vs Structure: Structural Framing vs Duct Fittings
· Active → Resolved Pipes vs Walls: Walls vs Pipes
CancelApply 3 change(s)
See the real output

This is an actual HTML report Clash exports — self-contained, works offline, shareable as one file. Scroll it right here, or open it full-screen.

Open full report

Coordinate where you fix.

Clash ships on the QA / QC panel of the BIMIO tab. Open a project, write your first rule — walls against ducts is a fine start — and press Run. Revit 2024–2027, full trial, no card.

← PreviousChronicle
