Every delivery hides the same defects: a dimension that lies, CAD pasted in years ago, a model dumped on one workset, two texts printed on top of each other. Assay sweeps the active model in a single read-only pass — model-health checks, view forensics and a full inventory — and turns what it finds into a number a BIM manager can quote: a health score out of 100, with the evidence one double-click from the element itself.
Revit accumulates warnings, overrides and hidden elements silently. Nobody sees them in a working view — the client sees them on the sheet.
Assay is read-only end to end — it opens no transactions, purges nothing, deletes nothing. Detection here; the fixing stays yours.

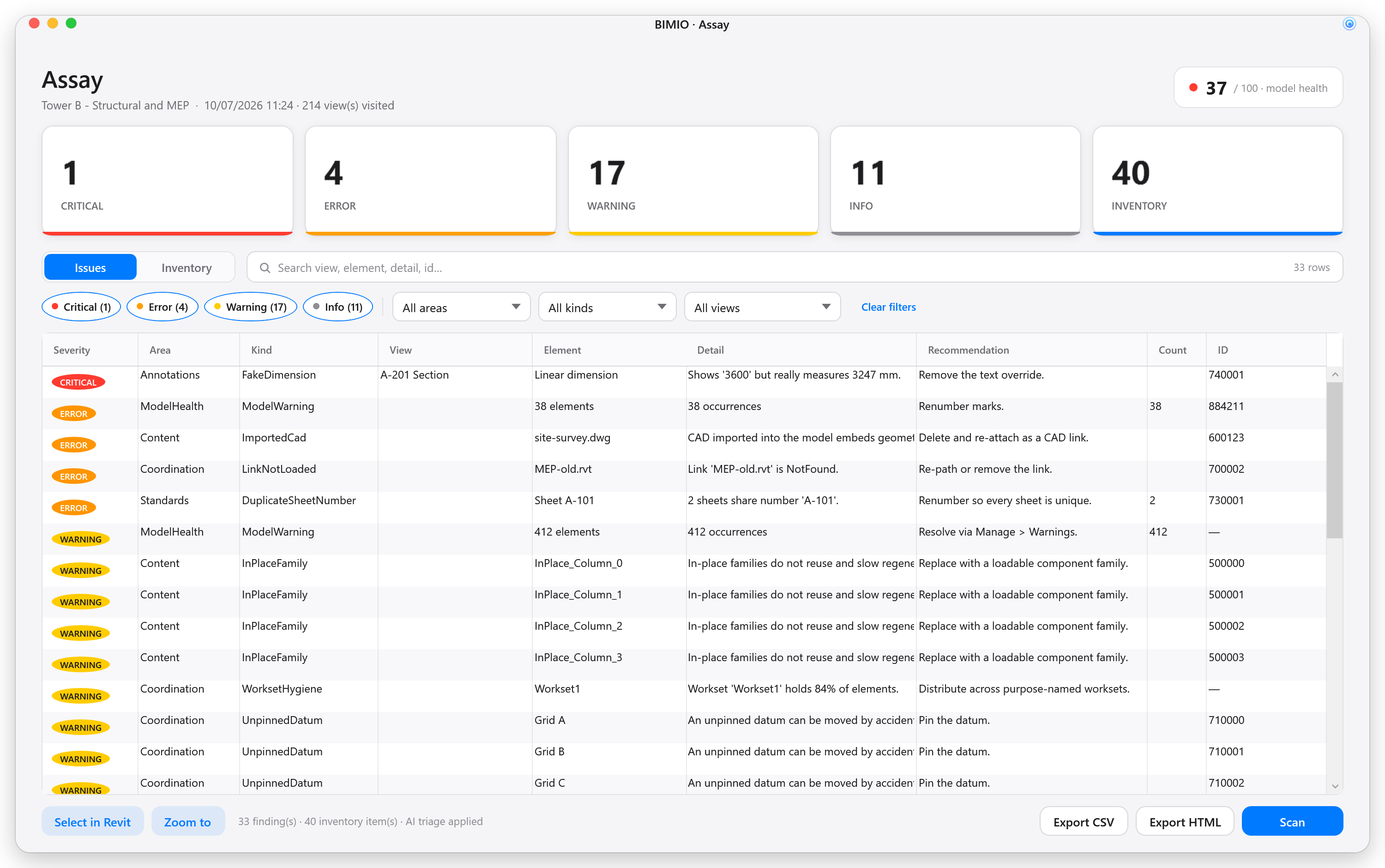

The empty state promises exactly what runs: warnings, content hygiene, links, worksets, rooms, sheets and view forensics — read-only, nothing is modified. Press Scan and the fast whole-model checks run first, the per-view forensics last, the inventory closes the pass — with a live phase line and a working Cancel, inline in the window, never a modal in your face.

| Severity | View | Element | Detail | Recommendation | Count | ID |
|---|
One Scan is eleven passes in a fixed order: Revit warnings, content quality, link health, datum pinning, worksets, rooms and spaces, views and sheets and detail lines per view sweep the whole model; annotation clashes and the graphics-and-forged-dimensions pass then visit only the views placed on a sheet, so the forensics cost what the deliverable costs. The header stamps how many were visited. Working views are counted as a metric, not raised as 176 defects. The inventory runs last, and it takes everything.
The score starts at 100 and subtracts severity-weighted, capped penalties — a critical costs far more than a warning, and a warning-heavy model degrades on a curve instead of falling off a cliff. Five tiles above the grid carry the counts — clicking a severity tile filters to just it; the fifth flips to the Inventory. And one honesty rule above all: if a scanner could not run, a Warning row says so by name, the report's grade reads “partial” — and the score is never published to the rest of the suite as if the audit were whole. A model opened with user worksets closed is held to the same rule: a Warning row names the closed worksets, the grade reads “partial”, and the score stays unpublished.

| Severity | View | Element | Detail | Recommendation | Count | ID |
|---|---|---|---|---|---|---|
| AnnotationClash1Annotations | ||||||
| Warning | A104 — Level 2 Plan | 2.5mm Arial | Text Notes vs Text Notes | Reposition so both texts stay readable on the sheet. | 455210 / 455211 | |
| DuplicateSheetNumber1Standards | ||||||
| Error | Sheet A-101 | 2 sheets share number 'A-101'. | Renumber so every sheet number is unique. | 2 | 220145 | |
| FakeDimension1Annotations | ||||||
| Critical | A101 — Ground Floor Plan | Linear - 2.5mm Arial | Shows '2400' but really measures 2387 | Remove the text override so the dimension reports the true measurement. | 442901 | |
| GraphicOverride1Graphics | ||||||
| Info | S-201 — Section AA | FAC Brick 102 | Overrides: halftone, projection colour | Per-element overrides bypass view templates; reset to By View if unintended. | 388120 | |
The view forensics catch what working views hide: elements hidden by hand, overridden graphics, hidden links, texts printing over each other, and the worst offender — dimensions whose displayed value has been typed over with another number (words in its place, such as See Schedule, EQ or VARIES, are a drafting convention: a Warning, not a forgery). The model-health suite reads the rest of the story: Revit warnings grouped by type and counted, in-place families, imported CAD, purgeable types, unpinned links, unenclosed, unplaced and duplicate rooms, sheets without title blocks, duplicate sheet numbers, views drafted over with hundreds of detail lines, and a model leaning on one overloaded workset. The grid groups the findings by kind — each group headed by its count and its area — and the Area and Kind chips, like the funnel in every column header, narrow it the way a spreadsheet would.

| Severity | View | Element | Detail | Recommendation | Count | ID |
|---|---|---|---|---|---|---|
| DuplicateSheetNumber1Standards | ||||||
| Error | Sheet A-101 | 2 sheets share number 'A-101'. | Renumber so every sheet number is unique. | 2 | 220145 | |
| ImportedCad1Content | ||||||
| Error | site-plan-old.dwg | CAD imported into the model embeds its geometry, line patterns and text styles permanently. | Delete and re-attach as a CAD link, or rebuild natively. | 301442 | ||
| LinkNotPinned1Coordination | ||||||
| Warning | MT-STR-Block A.rvt | An unpinned link can be moved by accident, breaking shared positioning. | Select the link and Pin it (most BEPs require links pinned). | 88213 | ||
| ModelWarning1ModelHealth | ||||||
| Warning | 12 elements | 12 occurrences · Highlighted walls overlap. | Resolve via Manage ▸ Warnings; recurring types usually point at a modelling or family-authoring habit. | 12 | 402544 | |
| PurgeableContent1Content | ||||||
| Info | 210 unused element(s) (families, types, patterns, materials, templates) could be purged. | Run Manage ▸ Purge Unused to reduce file size. | 210 | — | ||
| UnplacedRoom1ModelHealth | ||||||
| Warning | Store 1.07 | Exists in the schedule but is not placed in any view — it still counts in area take-offs. | Place it, or delete it from the schedule. | 391207 | ||
| WorksetHygiene1Coordination | ||||||
| Warning | Shell | Workset 'Shell' holds 62 % of elements — worksets aren't segmenting the model. | Distribute elements across purpose-named worksets to reduce sync contention. | — | ||
Connect a provider once in Synapse and the scan adds a single batched call: every warning type comes back ranked critical, soon or ignorable with a one-line reason, and Assay re-stamps the severity and puts the reason in front of the recommendation. Three slightly-off-axis walls drop to Info; two identical instances rise to Critical, because they double-count in every schedule. The call is capped at sixty seconds, and Cancel stops it like any other step — either way the deterministic findings stand, and the report records that the triage did not run.

| Severity | View | Element | Detail | Recommendation | Count | ID |
|---|---|---|---|---|---|---|
| ModelWarning4ModelHealth | ||||||
| Critical | 2 elements | 2 occurrences · There are identical instances in the same place. This will result in double counting in schedules. | AI triage (critical): identical instances double-count in every schedule and take-off. · Resolve via Manage ▸ Warnings; recurring types usually point at a modelling or family-authoring habit. | 2 | 418223 | |
| Warning | 24 elements | 24 occurrences · Highlighted walls overlap. | AI triage (soon): overlapping walls distort net areas and print doubled hatching. · Resolve via Manage ▸ Warnings; recurring types usually point at a modelling or family-authoring habit. | 24 | 402544 | |
| Info | 9 elements | 9 occurrences · Room is not in a properly enclosed region. | AI triage (ignorable): these are the plant voids, which are unbounded on purpose. · Resolve via Manage ▸ Warnings; recurring types usually point at a modelling or family-authoring habit. | 9 | 391077 | |
| Info | 3 elements | 3 occurrences · Wall is slightly off axis and may cause inaccuracies. | AI triage (ignorable): three walls off axis by under a millimetre. · Resolve via Manage ▸ Warnings; recurring types usually point at a modelling or family-authoring habit. | 3 | 377410 | |
Double-click a finding and Assay selects the element and zooms to it, opening a suitable view if the current one can't show it. A clash row hands over both texts at once, because the finding names them both. The right-click menu keeps the plumbing honest — Select in Revit, Zoom to, Copy element ID, ready for Select by ID — and an ID that no longer exists is simply ignored, never an error in your face. Switch to another open model and Assay refuses to select or zoom there — the status line names the model the results belong to. It is one row at a time: for a bulk hand-over, the CSV's ElementId column feeds Select by ID.

| Severity | View | Element | Detail | Recommendation | Count | ID |
|---|---|---|---|---|---|---|
| FakeDimension1Annotations | ||||||
| Critical | A101 — Ground Floor Plan | Linear - 2.5mm Arial | Shows '2400' but really measures 2387 | Remove the text override so the dimension reports the true measurement. | 442901 | |
| HiddenInView1Visibility | ||||||
| Warning | A101 — Ground Floor Plan | Party Wall 215 | Hidden via Hide Element / Hide in View | Confirm the hide is intentional; unhide if it masks required content. | 402118 | |
One segmented control flips the window from Issues to Inventory: every sheet, view, model element and annotation the scan met, with its worksharing story — who created it, who last modified it, who owns it right now — and a funnel on each of those columns to keep one person's work. The orphans only chip keeps just the views placed on no sheet, the classic model-bloat tell. Each tab remembers its own search and filters, so flipping back loses nothing — and Export CSV, pressed on this tab, writes the whole inventory.

| Kind | Name | Category | Author | Last modified | Owner | orphan | ID |
|---|---|---|---|---|---|---|---|
| View | Detail — Parapet junction | Detail | avega | avega | None (Free) | Yes | 431006 |
| View | L2 — Working plan (copy) | FloorPlan | jsmith | jsmith | jsmith | Yes | 455102 |
| View | S-203 — Section CC (working) | Section | jsmith | mrivera | None (Free) | Yes | 442871 |
The scan does not only find things, it counts them. Revit warnings and how many distinct types they are; in-place families; imported CAD against linked; raster images; what Purge Unused would remove; detail lines and the worst single view; linked models and the unpinned ones; unpinned datums; rooms unplaced or unenclosed; sheets missing a title block; working views; placed views with no template. Each carries a traffic light, and every poor or watch light is subtracted from the score — so the headline number can be checked, tile by tile.
Export HTML writes a single self-contained report — score ring with a written verdict, severity donut, area-by-severity matrix, the searchable findings and the inventory — in the language the suite is set to, and it renders identically on a locked-down site-office laptop, because nothing in it phones home. Export CSV hands the findings to Excel.
This model scored 62/100 (grade D) across 11 finding(s). 3 need action (1 critical, 2 error(s)). Most common: ModelWarning (1), concentrated in ModelHealth.
The scan stays in the session, keyed to the document it came from — a title-only model such as Project1 must be the very same document, so one model's verdict is never read against another. Lens picks it up: an ASSAY card whose subtitle is the model's headline, then this element's findings as severity-led rows with a Show that jumps to the view where the finding bites. A clean element says so rather than pretending no scan ran. And the Hub tile carries the audit headline, stamped with when it was measured — and refuses to invent a score before there is one.
This is an actual HTML report Assay exports — self-contained, works offline, shareable as one file. Scroll it right here, or open it full-screen.
Assay ships on the QA / QC panel of the BIMIO tab. One read-only scan, a score you can quote at the milestone, and a report you can send tonight. Revit 2024–2027, full trial, no card.
