Setup panelDatum

Coordinates you can sign off.

Datum reads the project base point, the survey point and the internal origin of the host model and of every loaded link, compares them against the model you name as the truth — the alpha — and turns every mismatch into a card that names the fix: what is wrong, which model to act on, which native Revit tool to use, and why it matters. It never touches your coordinates; the fix is always yours, the Revit way.

Revit 2024–2027Read-only — never edits your coordinatesEvery issue: what · where · tool · whyVerdict, matrix, map and report in one read
▶Video guideComing soon on BIMIO’s YouTube
FileArchitectureStructureInsertAnnotateViewManageAdd-InsModify
The BIMIO tab: the apps, each with its own licence.
Why Datum exists

Shared coordinates fail silently.

A mis-set survey point looks fine on screen for months — until the structural model lands a storey out in section, or the IFC export puts the site in the wrong country. The evidence is scattered across three invisible points in every model, and Revit never lines them up for you.

Revit on its own
  • Three origin points per model, none of them visible in a normal view.
  • “Are we coordinated?” is answered by linking, squinting and hoping.
  • Vertical datum errors hide in plan and surface in section — at the deadline.
  • The coordination minute quotes numbers someone typed from memory.
The same federation, through Datum
  • One read: every base point, survey point and internal origin of the host and every loaded link, measured in millimetres.
  • A one-line verdict and a pass/fail matrix per model — with “not checked” as its own honest state.
  • Every issue is a card: WHAT · WHERE · TOOL · WHY, ending in the exact Revit menu path.
  • The whole federation on a world map — a mis-coordinated model lands visibly far away.
A coordination review with Datum

Open it. It has already measured everything.

No setup, no scan button. Datum reads on open, judges against the alpha you choose, and hands you the evidence in the order you would ask for it.

Open it

One click, and the federation is measured.

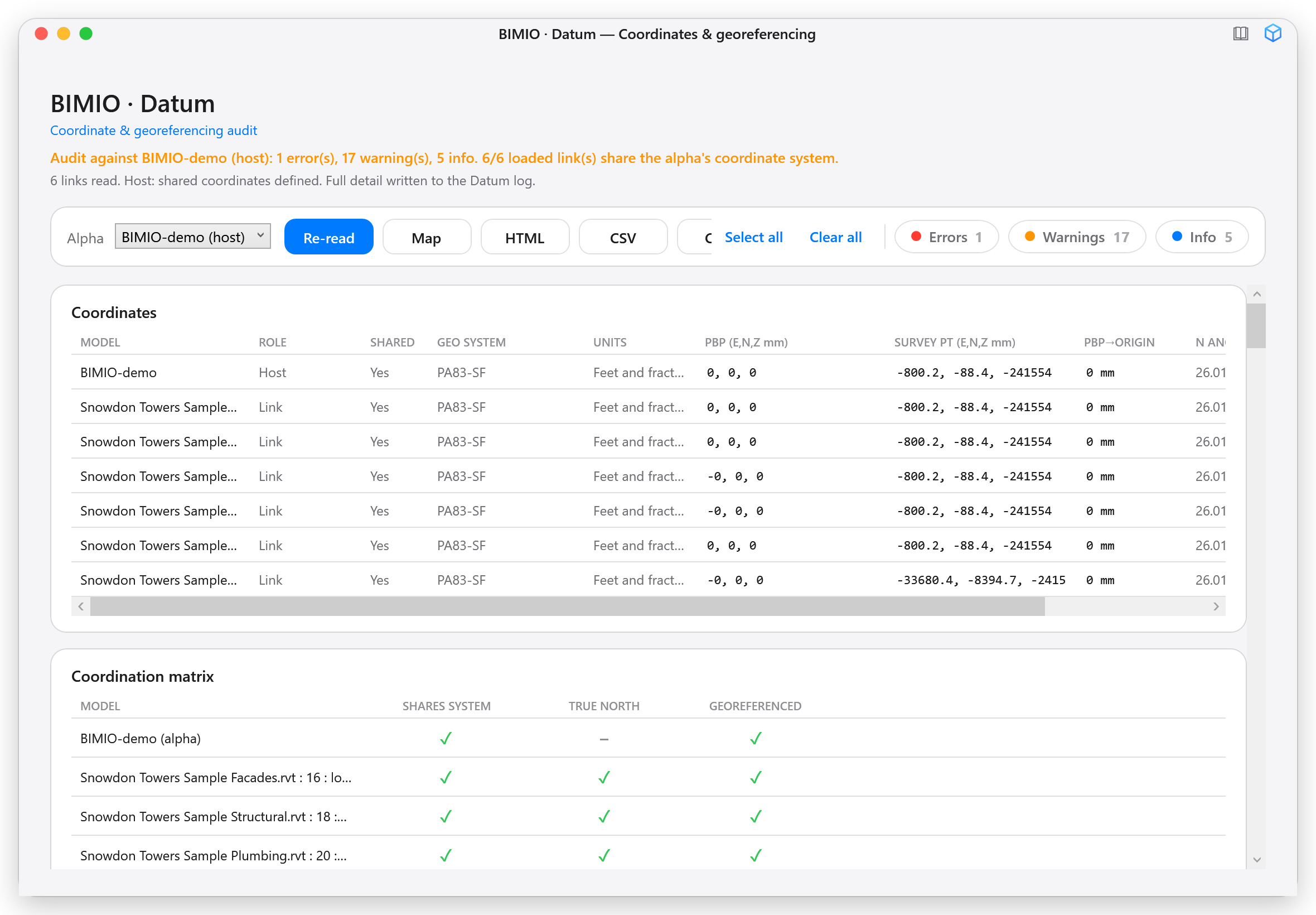

Datum opens from the Setup panel and reads the host and every loaded link before you ask. The verdict is one line under the name — errors, warnings, info, and how many links share the alpha's coordinate system. The Alpha dropdown is the only decision you make: crown the model that owns the coordinate truth — usually the georeferenced civil or site model — and everything re-judges against it instantly, without re-reading. Press Datum in another open model and the same window turns to that one and reads it.

New to Revit: an audit that has finished before the window has finished opening.
BIMIO · Datum — Coordinates & georeferencing
Datum
Audit coordinates and georeferencing across host and links.
Audit against MT-Civil-Site.rvt: 1 error(s), 2 warning(s), 2 info. 1/2 loaded link(s) share the alpha's coordinate system.
4 links read. Host: shared coordinates defined. Full detail written to the Datum log.
AlphaMT-Civil-Site.rvtRefreshMapHTMLCSVCopyLog
Select allSelect noneErrors1Warnings2Info2
Coordinates(5)
MODELROLESHAREDGEO SYSTEMUNITSPBP (E,N,Z mm)SURVEY PT (E,N,Z mm)PBP→ORIGINN ANGLEDIST ORIGINPINNED
Marina Tower — Block AHostYesBritishNatGridMillimeters0, 0, 00, 0, 00 mm14.7°86.2 m—
MT-Civil-Site.rvtLinkYesBritishNatGridMillimeters0, 0, 00, 0, 00 mm14.7°12.4 mYes
MT-STR-Block A.rvtLinkYesBritishNatGridMillimeters0, 0, 00, 0, 00 mm14.7°86.2 mNo
MT-Site-Survey.rvtLinkNoIrishGridMillimeters0, 0, 0715830, 734697, 00 mm0°3.1 mYes
MT-MEP-Block A.rvtLink (unloaded)————————Yes
Coordination matrix(4)
MODELSHARES SYSTEMTRUE NORTHGEOREFERENCED
MT-Civil-Site.rvt (alpha)✓–✓
MT-STR-Block A.rvt✓✓✓
MT-Site-Survey.rvt✗–✗
MT-MEP-Block A.rvt–––
Findings(5)
MT-MEP-Block A.rvt(1)Info
D000Linked model not loaded — not assessedInfoWHATMT-MEP-Block A.rvt is not loaded, so its coordinates could not be read or checked.WHERELoad the link to assess it.TOOLManage > Manage Links > reload the model, then re-run Datum.WHYDatum reports only what it can verify. An unloaded link carries no coordinate data, so no coordination judgement can be made about it.Show
MT-Site-Survey.rvt(3)Error
D016Link is on a different geographic coordinate systemErrorWHATMT-Site-Survey.rvt is on coordinate system "IrishGrid" but the alpha model MT-Civil-Site.rvt is on "BritishNatGrid".WHEREAct on the link (MT-Site-Survey.rvt) — or agree one project CRS.TOOLManage > Coordinates > Acquire Coordinates so all models share one geographic coordinate system; do not mix EPSG zones.WHYShared coordinates only align models on the SAME geographic system. Two different CRS put models kilometres apart on export and in GIS even when both claim to be georeferenced.Show
D001Link does not share the alpha model's coordinate systemWarningWHATThe alpha model MT-Civil-Site.rvt is georeferenced (shared coordinates), but MT-Site-Survey.rvt is not. They are not on the same coordinate system.WHEREAct on the link (MT-Site-Survey.rvt).TOOLManage > Coordinates > Acquire Coordinates from the alpha model so the link adopts the same shared coordinate system.WHYCoordination only works when every model shares one coordinate system. A link without shared coordinates won't line up reliably when positioned by Shared Coordinates, and exports won't match.Show
D013Model has no shared coordinates (not georeferenced)InfoWHATMT-Site-Survey.rvt has no shared-coordinate position; the model is not tied to a survey / real-world datum.WHEREAct on the link (MT-Site-Survey.rvt) if real-world coordinates are expected.TOOLManage > Coordinates > Specify Coordinates at Point, or Acquire Coordinates from a georeferenced model — the Survey Point stays at the internal origin; only its shared position changes.WHYIf the project requires real-world positioning, no shared coordinates means exports and site coordination won't match the real location. Informational — fine for an early-stage or standalone model.
MT-STR-Block A.rvt(1)Warning
D017Linked model is not pinnedWarningWHATMT-STR-Block A.rvt is not pinned, so it can be dragged or nudged out of position by accident.WHEREAct on the link (MT-STR-Block A.rvt).TOOLSelect the link instance and press Pin (Modify > Pin), or right-click > Pin. Pin every link after positioning.WHYA single accidental drag on an unpinned link shifts an entire discipline out of coordination, and the error is easy to miss. Pinning locks the agreed position.Show
The numbers

The measured state — not just the problems.

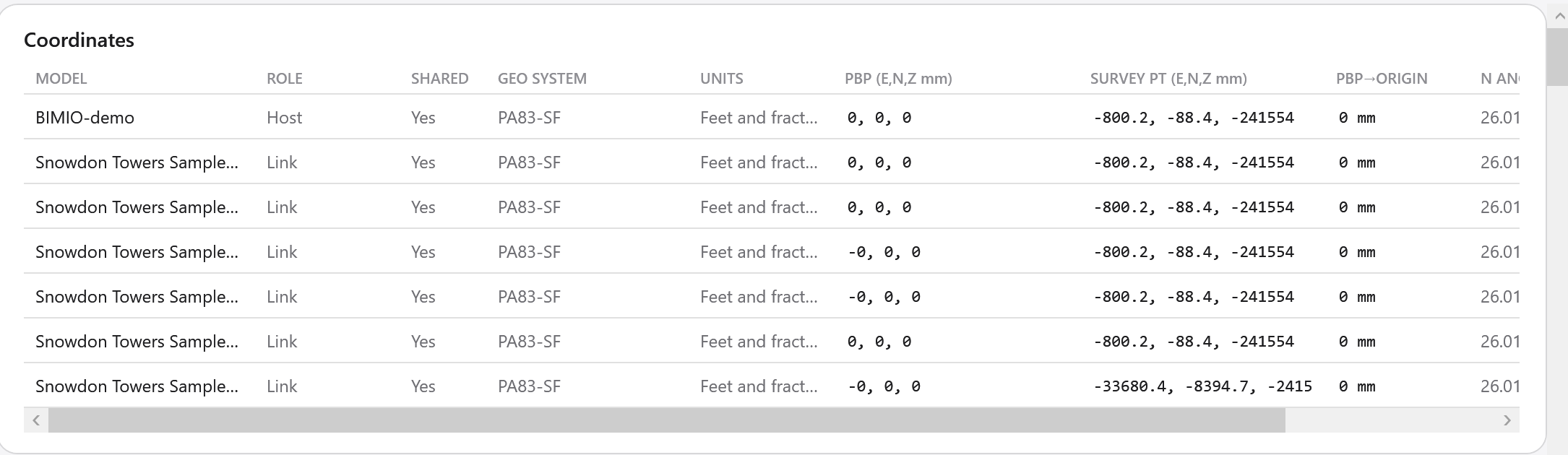

The Coordinates table gives one row per model: shared coordinates yes or no, the geographic system, the units, the project base point and survey point in E,N,Z millimetres, the distance to the internal origin, true-north angle, and whether the link is pinned. An unloaded link keeps only its pin state — everything else is a dash, never a stale number. This is the table you quote verbatim in the coordination minute: the coordinate cells select and copy, and the Copy button takes the whole table.

New to Revit: the three invisible points of every model, in one table you can copy.
BIMIO · Datum — Coordinates & georeferencing
Coordinates(5)
MODELROLESHAREDGEO SYSTEMUNITSPBP (E,N,Z mm)SURVEY PT (E,N,Z mm)PBP→ORIGINN ANGLEDIST ORIGINPINNED
Marina Tower — Block AHostYesBritishNatGridMillimeters0, 0, 00, 0, 00 mm14.7°86.2 m—
MT-Civil-Site.rvtLinkYesBritishNatGridMillimeters0, 0, 00, 0, 00 mm14.7°12.4 mYes
MT-STR-Block A.rvtLinkYesBritishNatGridMillimeters0, 0, 00, 0, 00 mm14.7°86.2 mNo
MT-Site-Survey.rvtLinkNoIrishGridMillimeters0, 0, 0715830, 734697, 00 mm0°3.1 mYes
MT-MEP-Block A.rvtLink (unloaded)————————Yes
The sign-off grid

Pass, fail — or honestly not checked.

The coordination matrix judges every link against the alpha on the three questions that decide a federation: does it share the coordinate system, does true north agree, is it georeferenced. Passes are shown as deliberately as failures, so “checked and OK” never looks like “not checked” — and an unloaded link scores a dash on every column, because a model Datum could not read can never masquerade as a pass.

New to Revit: a per-model pass/fail grid where “not applicable” is a real state.
BIMIO · Datum — Coordinates & georeferencing
Coordination matrix(4)
MODELSHARES SYSTEMTRUE NORTHGEOREFERENCED
MT-Civil-Site.rvt (alpha)✓–✓
MT-STR-Block A.rvt✓✓✓
MT-Site-Survey.rvt✗–✗
MT-MEP-Block A.rvt–––
Findings that name the fix

What. Where. Tool. Why.

Every finding is a card with a stable code and a severity, grouped under the model it belongs to. WHAT states the measured fact. WHERE names the model to act on. TOOL gives the exact native path — Manage > Coordinates > Acquire Coordinates, not “fix your coordinates”. WHY says what it costs you if you don't. Show selects the flagged link or drops a temporary marker at the point, and every marker cleans itself up on Refresh or close. Datum detects and explains; it never silently fixes.

New to Revit: findings that end in a Revit menu path — not in a shrug.
BIMIO · Datum — Coordinates & georeferencing
MT-Site-Survey.rvt(3)Error
D016Link is on a different geographic coordinate systemErrorWHATMT-Site-Survey.rvt is on coordinate system "IrishGrid" but the alpha model MT-Civil-Site.rvt is on "BritishNatGrid".WHEREAct on the link (MT-Site-Survey.rvt) — or agree one project CRS.TOOLManage > Coordinates > Acquire Coordinates so all models share one geographic coordinate system; do not mix EPSG zones.WHYShared coordinates only align models on the SAME geographic system. Two different CRS put models kilometres apart on export and in GIS even when both claim to be georeferenced.Show
Nineteen codes

Nineteen coded rules, and an unloaded link still gets a card.

Nineteen stable codes run on every audit. Nine compare each link with the alpha — shared system, placement rotation, project units, CRS, pinning, vertical datum, nested links, the same link inserted twice. Eleven judge each model on its own, host included: base point against the internal origin, grid anchoring, modelling quadrant, distance from origin, spare project positions. Findings group under the model that owns them, worst severity first, and the link nobody loaded is listed as D000 rather than quietly dropped.

New to Revit: an audit that lists what it could not check in the same list as what it did.
BIMIO · Datum — Coordinates & georeferencing
Findings(5)
MT-MEP-Block A.rvt(1)Info
D000Linked model not loaded — not assessedInfoWHATMT-MEP-Block A.rvt is not loaded, so its coordinates could not be read or checked.WHERELoad the link to assess it.TOOLManage > Manage Links > reload the model, then re-run Datum.WHYDatum reports only what it can verify. An unloaded link carries no coordinate data, so no coordination judgement can be made about it.Show
MT-Site-Survey.rvt(3)Error
D016Link is on a different geographic coordinate systemErrorWHATMT-Site-Survey.rvt is on coordinate system "IrishGrid" but the alpha model MT-Civil-Site.rvt is on "BritishNatGrid".WHEREAct on the link (MT-Site-Survey.rvt) — or agree one project CRS.TOOLManage > Coordinates > Acquire Coordinates so all models share one geographic coordinate system; do not mix EPSG zones.WHYShared coordinates only align models on the SAME geographic system. Two different CRS put models kilometres apart on export and in GIS even when both claim to be georeferenced.Show
D001Link does not share the alpha model's coordinate systemWarningWHATThe alpha model MT-Civil-Site.rvt is georeferenced (shared coordinates), but MT-Site-Survey.rvt is not. They are not on the same coordinate system.WHEREAct on the link (MT-Site-Survey.rvt).TOOLManage > Coordinates > Acquire Coordinates from the alpha model so the link adopts the same shared coordinate system.WHYCoordination only works when every model shares one coordinate system. A link without shared coordinates won't line up reliably when positioned by Shared Coordinates, and exports won't match.Show
D013Model has no shared coordinates (not georeferenced)InfoWHATMT-Site-Survey.rvt has no shared-coordinate position; the model is not tied to a survey / real-world datum.WHEREAct on the link (MT-Site-Survey.rvt) if real-world coordinates are expected.TOOLManage > Coordinates > Specify Coordinates at Point, or Acquire Coordinates from a georeferenced model — the Survey Point stays at the internal origin; only its shared position changes.WHYIf the project requires real-world positioning, no shared coordinates means exports and site coordination won't match the real location. Informational — fine for an early-stage or standalone model.
MT-STR-Block A.rvt(1)Warning
D017Linked model is not pinnedWarningWHATMT-STR-Block A.rvt is not pinned, so it can be dragged or nudged out of position by accident.WHEREAct on the link (MT-STR-Block A.rvt).TOOLSelect the link instance and press Pin (Modify > Pin), or right-click > Pin. Pin every link after positioning.WHYA single accidental drag on an unpinned link shifts an entire discipline out of coordination, and the error is easy to miss. Pinning locks the agreed position.Show
The map test

Your federation, on the actual planet.

The World Map plots the survey point, base point and internal origin of every model on a real map — three colour-coded markers per model, all carrying its number. A coordinated federation clusters on the site; a wrong coordinate system lands a model in another county — visibly, unarguably. Datum auto-detects the projection when the model exposes it; when it can't, it asks you for the project EPSG rather than guess.

New to Revit: the coordination error you can see from orbit.
BIMIO · Datum — World Map
Auto-detected BritishNatGrid (EPSG 27700) — 12 point(s), 1 property line(s).
111222333444
ModelsShow allClear all
1Host — Marina Tower — Block A
2Link — MT-Civil-Site.rvt
3Link — MT-STR-Block A.rvt
4Link — MT-Site-Survey.rvt
5Link — MT-MEP-Block A.rvt
SurveyPBPInternal
© OpenStreetMap
Prove it

A report that travels without you.

One click writes a self-contained HTML report — the verdict, the searchable findings, the coordinates table and the matrix — in the language you run BIMIO in, and it renders identically on a locked-down site-office laptop, because it carries no external dependencies. CSV and Copy serve the spreadsheet crowd, and Log opens the Datum log folder when someone asks how a number was measured.

New to Revit: a coordination audit you can attach to the minutes.
Marina Tower — Block A - BIMIO Datum
Datum· coordinate auditSearch findings…
Coordinate & georeferencing audit
Marina Tower — Block A
Audit against MT-Civil-Site.rvt: 1 error(s), 2 warning(s), 2 info. 1/2 loaded link(s) share the alpha's coordinate system.
Errors
1
must fix
Warnings
2
should review
Info
2
advisory
Models
5
4 links + host
Coordinated
1/2
links share the alpha system
OverviewModelsFindingsReport
Overviewcoordination at a glance
Your tolerances

The pass mark is yours, and the report says which one it used.

Nine acceptance thresholds decide every verdict. They are built in — 1 mm from the internal origin, 0.01° of rotation, 50 mm to a grid intersection, 10 mm of vertical datum, and the precision limits: a warning past 10 km from the internal origin, an error past 32 km, near where Revit refuses to place elements at all. A plain key=value file you create in your local profile overrides any of them, and Datum reads it when its window opens. Align them with the BEP once; every exported report then states the tolerances it ran under.

New to Revit: an audit whose criteria travel inside its own report.
datum-thresholds.txt
# BIMIO Datum acceptance thresholds
OriginTolMm=1
RotationTolDeg=0.01
GridSnapTolMm=25
QuadrantFarMm=5000
FarWarnMm=10000000
FarErrMm=32000000
VerticalDatumTolMm=10
TrueNorthTolDeg=0.5
DuplicateTransTolMm=1000
%LocalAppData%\BIMIO\Datum\datum-thresholds.txt
Marina Tower — Block A - BIMIO Datum
Reportprovenance
Report information
ProjectMarina Tower — Block A
Alpha modelMT-Civil-Site.rvt
Generated2026-11-14 11:09 by h.whitaker
Revit2026
Datum version1.0.2.0
TolerancesPBP@origin 1 mm · rotation 0.01° · grid snap 25 mm · far-warn 10000 m / far-error 32000 m
It travels

The same finding, waiting on the link you just clicked.

Select a linked model with Lens open and, when your licence covers Datum, Lens shows a DATUM card carrying that link's own findings: the severity word, the headline, the rule code as a trailing pill, and the long explanation behind the row's Details toggle. It judges the link against the host model with the built-in tolerances, whatever the Datum window is set to. Ordinary elements cost nothing — the seam checks for a link instance first and returns immediately, so selecting a wall never triggers a model read. And on the BIMIO Misc tab, the Hub's Datum tile reports Links loaded, Unpinned links and, when it can read them, Shared coordinates, with the errors and warnings of your last audit beside them.

New to Revit: a coordinate audit that answers from inside the element you were already looking at.
Lens×
ProjectElementTypeHTML
✦ Explain
GENERAL INFO
Identity, placement and authorship.
Id884213
DATUMLink position vs the project.Open ↗
·InfoModel has no shared coordinates (not georeferenced)D013
~WarningLink does not share the alpha model's coordinate systemD001
×ErrorLink is on a different geographic coordinate systemD016
Signed off

A pass is a statement, not an empty screen.

When nothing is wrong the verdict turns green and names the model it was measured against, and the findings block states what was examined instead of showing nothing: base point, survey point, model quadrant, grid anchoring, units, georeferencing and every link. The coordinate table and the matrix stay right above it — folded here, one click from open — because the numbers are the deliverable whether or not anything failed. Nothing re-runs by itself — Refresh is the deliberate gesture, and it sweeps the temporary markers on its way.

New to Revit: an all-clear worth attaching to a minute, because it lists what it looked at.
BIMIO · Datum — Coordinates & georeferencing
Datum
Audit coordinates and georeferencing across host and links.
Coordinated against MT-Civil-Site.rvt: no coordinate or georeferencing issues. 3/3 loaded link(s) share the alpha's coordinate system.
4 links read. Host: shared coordinates defined. Full detail written to the Datum log.
AlphaMT-Civil-Site.rvtRefreshMapHTMLCSVCopyLog
Select allSelect noneErrors0Warnings0Info0
Coordinates(5)
Coordination matrix(4)
Findings(0)

No coordinate or georeferencing issues found against the chosen alpha model. Datum checked the project base point, survey point, model quadrant, grid anchoring, units, georeferencing and every link. The coordinate table above shows the measured state.

See the real output

This is an actual HTML report Datum exports — self-contained, works offline, shareable as one file. Scroll it right here, or open it full-screen.

Open full report

Audit the ground before you build on it.

Datum sits on the Setup panel of the BIMIO tab. Open it when you assemble the federation and before every export — coordinate problems are cheapest the day they are made. Revit 2024–2027, full trial, no card.
